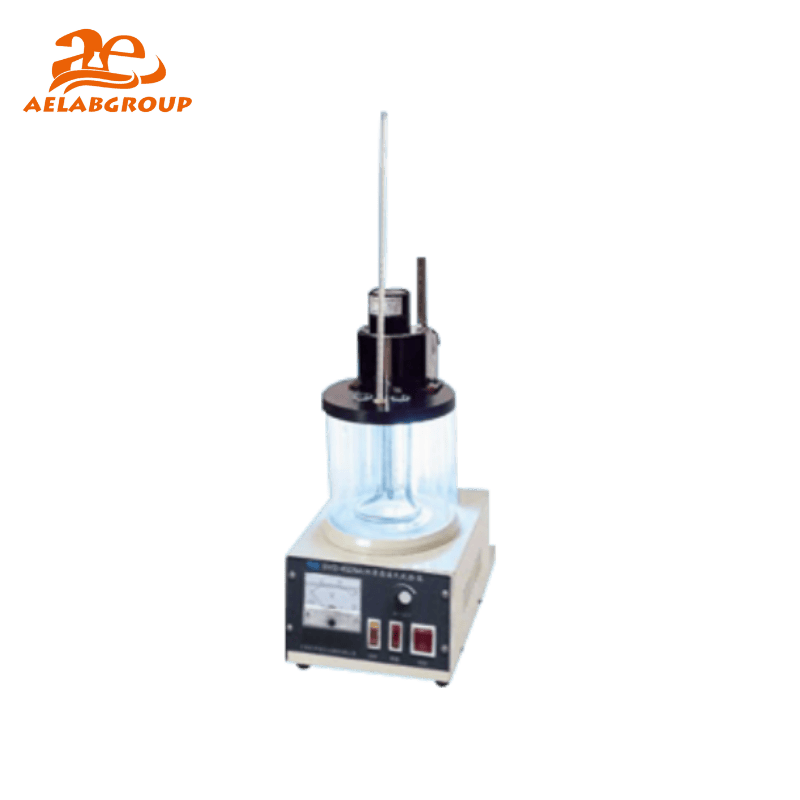

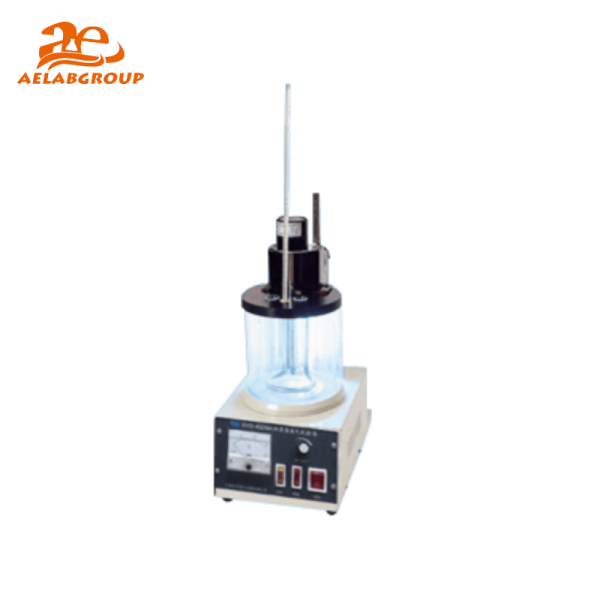

The AELAB Dropping Point Tester SYD-4929A is designed and manufactured according to the national standard of People’s Republic of China GB/T 4929 Lubricating Grease – Determination of Dropping Point and ASTM D566 Standard Test Method for Dropping Point of Lubricating Grease.
The oil bath is composed of a heat-resistant beaker, heater, and electric motor. The heating power can be adjusted continuously, and the temperature in the oil bath is uniform. The SYD-4929A features a desktop structure that is easy to operate.
The AELAB SYD-4929A utilizes a 600 ml heat-resistant beaker as the oil bath, combined with an adjustable heating system and regulated stirring motor. The grease cup is machined from chrome-plated brass with an inner diameter of 9.92 mm, a 2.8 mm oil-dripping hole, and a 12 mm cup height. The borosilicate glass test tube supports high-temperature stability and incorporates three precision grooves located 19 mm from the bottom to secure the grease cup. The unit’s compact desktop frame enhances laboratory usability.
The SYD-4929A determines the dropping point of lubricating grease by heating the sample in a controlled oil bath until a droplet forms and falls. The instrument maintains uniform temperature distribution through continuous stirring at 60 R/min. A calibrated thermometer (-5 ~ 300 °C, division 1 °C) provides accurate temperature readings, ensuring compliance with GB/T 4929 and ASTM D566 test methodologies.
The SYD-4929A is designed as a standalone analytical unit. Temperature readings are monitored directly via the integrated thermometer, ensuring GLP-compliant manual recording. The system supports standard laboratory workflows and integrates easily into petroleum and grease analysis procedures.
| Model | Specifications |
|---|---|
| SYD-4929A | 600 ml oil bath, chrome-plated brass grease cup (9.92 mm ID), 11.1–12.7 mm test tube ID, 60 R/min stirring motor, (-5 ~ 300) °C thermometer, 350×180×410 mm, 8 kg |
The AELAB SYD-4929A is suitable for lubricating grease evaluation in petroleum laboratories, quality control facilities, industrial maintenance centers, research institutes, and manufacturing plants. It quantifies grease dropping performance for formulation development, stability assessment, and standardized certification testing.
The instrument complies with GB/T 4929 and ASTM D566. All components follow AELAB quality control procedures, ensuring repeatable measurements, stable heating performance, and long-term reliability under GLP laboratory conditions.
Specifications :
| Power Supply | AC(220±10%)V 50Hz | ||
| Total Consumption | ≤900W | ||
| Oil Bath | 600ml Beaker | ||
| Grease Cup | It is made of chrome plated brass | inner diameter | 9.92mm |
| oil dripping hole | 2.8mm | ||
| cup height | 12mm | ||
| Test Tube | Heat resistant borosilicate glass tube with edge, inner diameter: 11.1 mm to 12.7 mm, and there are three grooves on the circumference 19 mm away from the bottom to support the grease cup | ||
| Thermometer | Temperature range (-5 ~ 300) °C; division value 1 °C | ||
| Stirring Motor | 60 R/min | ||
| Working Environment | Temperature: (15 ~ 35) °C; Relative humidity: ≤85% | ||
| Dimension | 350 mm×180 mm×410 mm | ||
| Net Weight | 8 kg | ||
| Power Supply | AC(220±10%)V 50Hz | ||
| Total Consumption | ≤900W | ||
| Oil Bath | 600ml Beaker | ||
| Grease Cup | It is made of chrome plated brass | inner diameter | 9.92mm |
| oil dripping hole | 2.8mm | ||
| cup height | 12mm | ||
| Test Tube | Heat resistant borosilicate glass tube with edge, inner diameter: 11.1 mm to 12.7 mm, and there are three grooves on the circumference 19 mm away from the bottom to support the grease cup | ||
| Thermometer | Temperature range (-5 ~ 300) °C; division value 1 °C | ||
| Stirring Motor | 60 R/min | ||
| Working Environment | Temperature: (15 ~ 35) °C; Relative humidity: ≤85% | ||
| Dimension | 350 mm×180 mm×410 mm | ||
| Net Weight | 8 kg | ||
