AELAB Dual Beam IR Spectrophotometer TJ270-30A

The AELAB TJ270-30A Dual Beam IR Spectrophotometer is a high-performance analytical instrument for precise infrared absorption and reflectance analysis. Ideal for qualitative and quantitative research, it supports professionals in petroleum, pharmaceutical, chemical, and environmental labs with robust functionality and outstanding spectral accuracy.

Modles : TJ270-30A

Quantity:

Send Email

Infrared spectroscopy is one of the most powerful techniques for identifying organic substances in organic and analytical chemistry. Infrared analysis can be both qualitative and quantitative. TJ270-30A is an important tool in analytical laboratories.

It can be used to record the IR absorption and reflectance spectra of substances in the spectral range of 4000 ~ 400 cm-1. It is a powerful tool to analyze sample structures in the fields such as petroleum, chemical engineering, pharmacy, public health and environmental protection.

The Windows application software provides a user-friendly interface for the control of the spectrophotometer, data acquisition, and spectral analysis with functions listed below:

Spectral background baseline memory
Spectral background baseline correction
Spectral data smoothing operation
Spectral baseline slope correction
Spectral data differential operation
Spectral data arithmetic operation
Spectral data accumulating operation
Conversion of %T and Abs
Spectrum file management
Spectral peak search
Spectrum scale extension
Spectral absorption expansion

Features:

High quality
Low stray light
High accuracy measurement
Simple structure with easy operation

✅ 🔬 How It Works?

The TJ270-30A operates using a dual-beam infrared optical system, which splits the IR source into two paths—one for the sample and the other for the reference. This configuration minimizes drift and compensates for background interference, improving signal stability. Controlled via a user-friendly Windows-based software, the system enables precise spectral acquisition, real-time baseline correction, and advanced data operations like smoothing, differentiation, and arithmetic analysis. The result is high-resolution IR spectra ideal for structure elucidation and compound identification.

✅ 💡 Advantages

✅ High Accuracy: Excellent wavelength and transmittance precision
✅ User-Friendly Software: Advanced data processing tools included
✅ Robust Design: Built for durability and long-term lab performance
✅ Low Stray Light: Ensures clean, noise-free spectral outputs
✅ Simple Operation: Streamlined controls for efficient workflows
✅ Versatile Applications: Suitable for both research and routine testing

✅ 🔍 Recommended Models by Use Case

Use Case	Recommendation
Educational Labs	TJ270-30A with standard accessories
Research Centers	TJ270-30A with extended spectral software suite
Quality Control Labs (Pharma)	TJ270-30A with baseline memory function
Environmental Testing	TJ270-30A with absorption expansion tools
Petrochemical Labs	TJ270-30A with ammonia gas resolution verification

✅ 🧪 Ideal For

🔬 Organic and analytical chemistry labs
🧫 Pharmaceutical R&D and QC departments
🌍 Environmental analysis agencies
🛢 Petroleum and chemical engineering labs
🏫 University teaching and research labs
🧪 Food safety and public health institutions

Specifications :

Technical Specifications:

Optical system	Double-beam
Wave-number Range	4000-400cm-1
Transmittance (%)	0—100.0%
Absorbency	0—3Abs
Power Source	AC 220V±10%、50±1 Hz、300W
Wave-number Accuracy	≤±4cm-1(4000—2000cm-1), ≤±2(2000—400cm-1)
WN Repeatability	≤2cm-1(4000—2000cm-1), ≤1cm-1(2000—400cm-1)
Transmittance Accuracy	≤±0.5%(noise level not included)
Transmittance Repeatability	≤0.5%(1000—930cm-1)
Io Line Flatness and Straightness	≤4%
Resolution Capability	Polystyrene has six absorption peaks around 3000cm-1，with height of 1% at least; Ammonia gas’s resolution is 2.5cm-1 around 1000 cm-1, with height of 1% at least.
Stray Lights	≤1% (4000—650cm-1), ≤2%(650-400cm-1)
Slit Width	5 steps
Dimensions	Mainframe: 800mm´610mm´300mm
Weight	80kg or so

Technical Specifications:

Optical system	Double-beam
Wave-number Range	4000-400cm-1
Transmittance (%)	0—100.0%
Absorbency	0—3Abs
Power Source	AC 220V±10%、50±1 Hz、300W
Wave-number Accuracy	≤±4cm-1(4000—2000cm-1), ≤±2(2000—400cm-1)
WN Repeatability	≤2cm-1(4000—2000cm-1), ≤1cm-1(2000—400cm-1)
Transmittance Accuracy	≤±0.5%(noise level not included)
Transmittance Repeatability	≤0.5%(1000—930cm-1)
Io Line Flatness and Straightness	≤4%
Resolution Capability	Polystyrene has six absorption peaks around 3000cm-1，with height of 1% at least; Ammonia gas’s resolution is 2.5cm-1 around 1000 cm-1, with height of 1% at least.
Stray Lights	≤1% (4000—650cm-1), ≤2%(650-400cm-1)
Slit Width	5 steps
Dimensions	Mainframe: 800mm´610mm´300mm
Weight	80kg or so

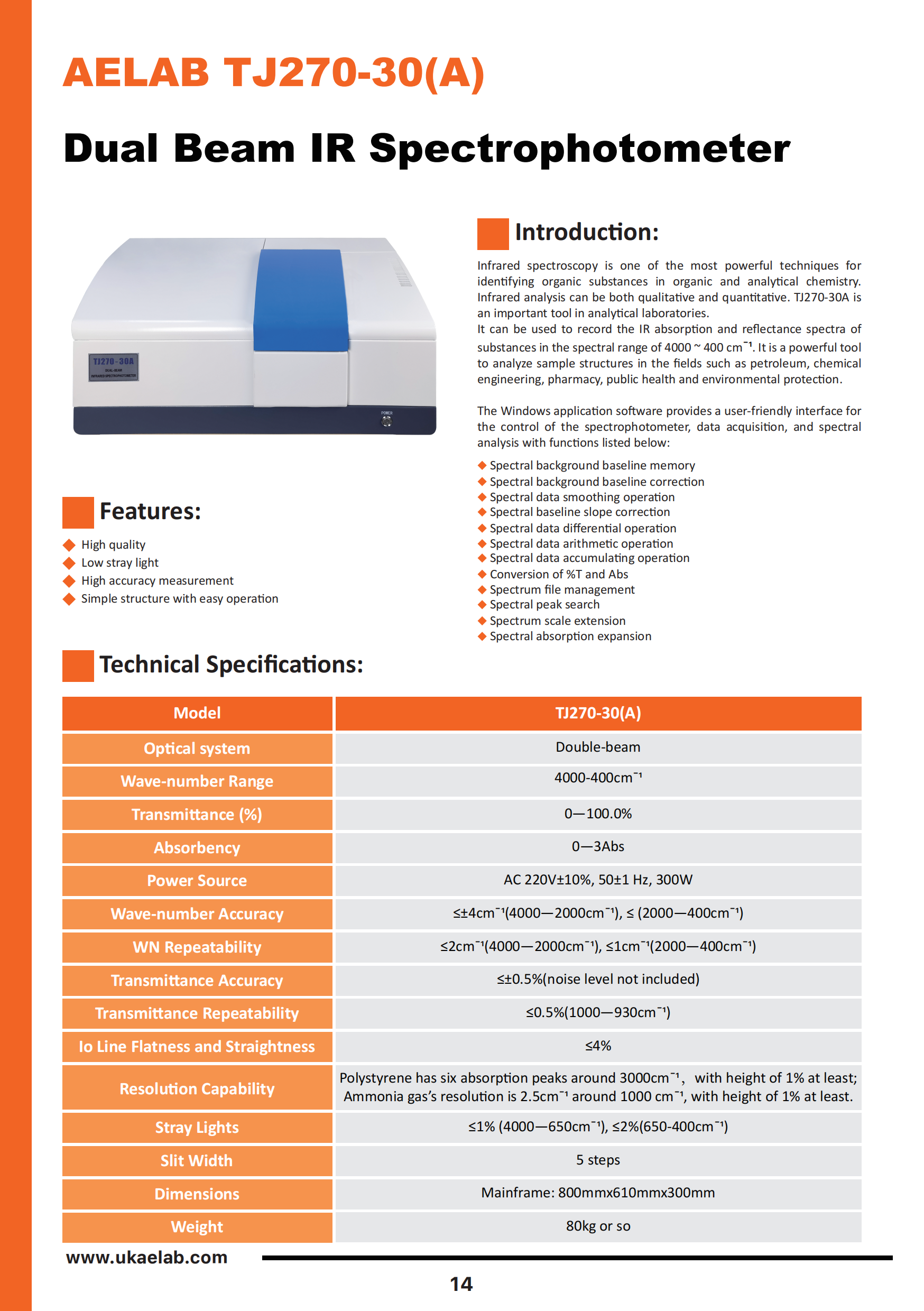

Download catalog for:

Frequently Asked Questions

1How is calibration performed?

Calibration is done using standard polystyrene and ammonia gas samples to verify resolution and wavelength accuracy. The built-in software guides the calibration process.

2Is the TJ270-30A GMP compliant?

Yes, when operated under proper SOPs and validated software environment, it can be part of GMP-compliant workflows.

3What is the warranty period?

The AELAB TJ270-30A comes with a 12-month manufacturer warranty, with extended service plans available upon request.
