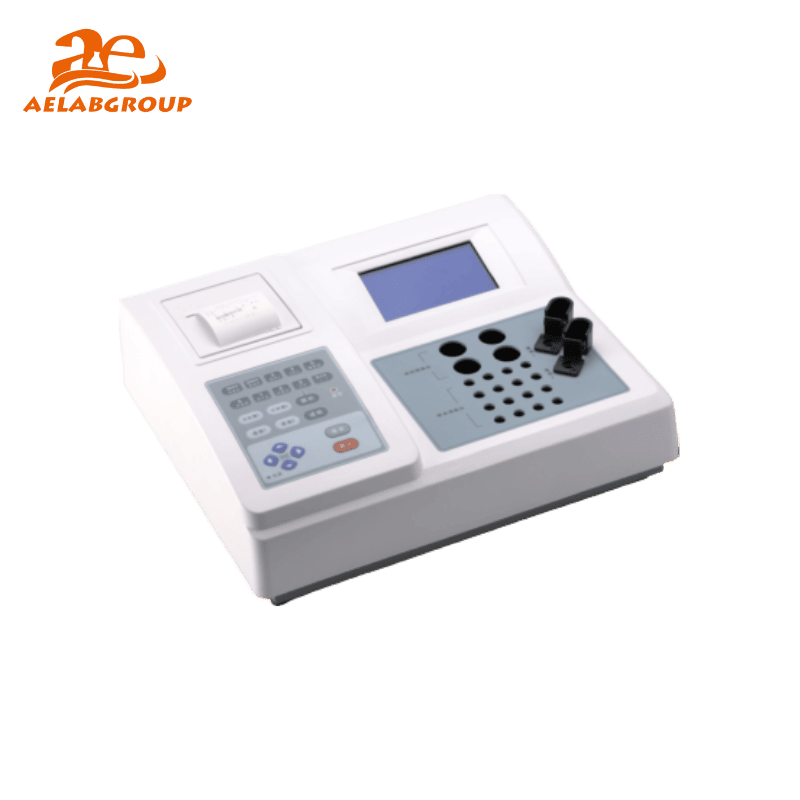

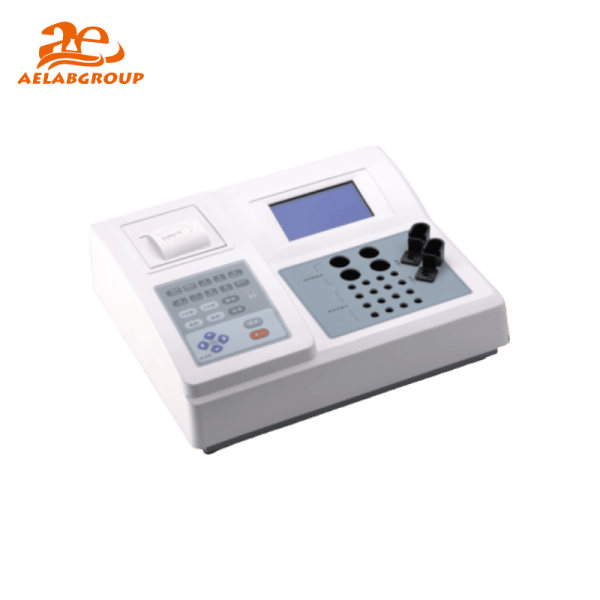

The AELAB Dual Channel Coagulation Analyzer SK5002 provides precise quantitative analysis of plasma coagulation parameters such as Prothrombin Time (PT), Activated Partial Thromboplastin Time (APTT), and Fibrinogen concentration. Its dual-channel photometric design ensures rapid throughput and reliable reproducibility, supporting both clinical diagnostics and laboratory quality control workflows.
The SK5002 features a dual optical detection system with a 470 nm and 660 nm long-life cold light source. The analyzer maintains stable operation through a 37 °C ± 0.3 °C constant temperature control system. It includes 2 test channels, 16 sample pre-warm positions, and 4 reagent pre-warm positions. The durable housing integrates a 240×128 graphic LCD display and an internal thermal printer using 30 mm × 57 mm paper for on-demand reporting.
The SK5002 employs multi-wavelength photometric detection to minimize interference from hemolysis, lipemia, or jaundice. Plasma clotting reactions are monitored by measuring changes in light transmittance, enabling precise determination of PT and APTT endpoints. The system supports both automatic and manual start modes, with open reagent configuration and calibration curves across five or more points for high analytical accuracy.
The AELAB SK5002 integrates USB output and PC connectivity for data management and report printing. It supports Chinese and English interfaces, calibration storage, and GLP-compliant data export options for laboratory information systems (LIS).
| Model | Specifications |
|---|---|
| SK5002 | 2 channels, 470 nm/660 nm light source, 20 μL min reagent volume, 150 PT tests/h, 10,000 result memory |
The SK5002 is suitable for clinical laboratories, hospital biochemistry departments, and research institutions requiring quantitative coagulation analysis. It supports testing of PT, APTT, and FIB parameters for plasma-based hemostasis studies, blood coagulation research, and pharmaceutical quality control.
The analyzer meets ISO and CE performance standards for medical laboratory instruments. Each unit is factory-calibrated with traceable reference materials, ensuring analytical reliability under GLP-compliant laboratory protocols.
Specifications :
| Item | Specification |
|---|---|
| Number of Test Channels | 2 |
| Reagent Pre-warm Positions | 4 |
| Sample Pre-warm Positions | 16, with two software timers |
| Light Source | 470 nm, 660 nm long-life cold light source |
| Sample Volume | 20, 30, 40 μL |
| Minimum Reagent Volume | 20 μL |
| Constant Temperature Control | 37 °C ± 0.3 °C |
| Repeatability | CV ≤ 5% |
| Linear Error | Linear correlation coefficient r > 0.98 |
| Channel Consistency | ≤ 5% |
| Testing Speed | PT: 150 tests/h; APTT: 80 tests/h |
| Measurement Start | Online sampling with automatic timing; Manual start available |
| Storage | 10,000 test results storable |
| Calculation Functions | Can convert S, %, PTR, INR, mg/dL etc. |
| Printing | Built-in thermal printer; Printing paper Ø 30 mm × 57 mm |
| Display | 240 × 128 graphic LCD display |
| Working Environment | Ambient temperature 10 °C – 30 °C; Relative humidity ≤ 70% |
| Item | Specification |
|---|---|
| Number of Test Channels | 2 |
| Reagent Pre-warm Positions | 4 |
| Sample Pre-warm Positions | 16, with two software timers |
| Light Source | 470 nm, 660 nm long-life cold light source |
| Sample Volume | 20, 30, 40 μL |
| Minimum Reagent Volume | 20 μL |
| Constant Temperature Control | 37 °C ± 0.3 °C |
| Repeatability | CV ≤ 5% |
| Linear Error | Linear correlation coefficient r > 0.98 |
| Channel Consistency | ≤ 5% |
| Testing Speed | PT: 150 tests/h; APTT: 80 tests/h |
| Measurement Start | Online sampling with automatic timing; Manual start available |
| Storage | 10,000 test results storable |
| Calculation Functions | Can convert S, %, PTR, INR, mg/dL etc. |
| Printing | Built-in thermal printer; Printing paper Ø 30 mm × 57 mm |
| Display | 240 × 128 graphic LCD display |
| Working Environment | Ambient temperature 10 °C – 30 °C; Relative humidity ≤ 70% |
