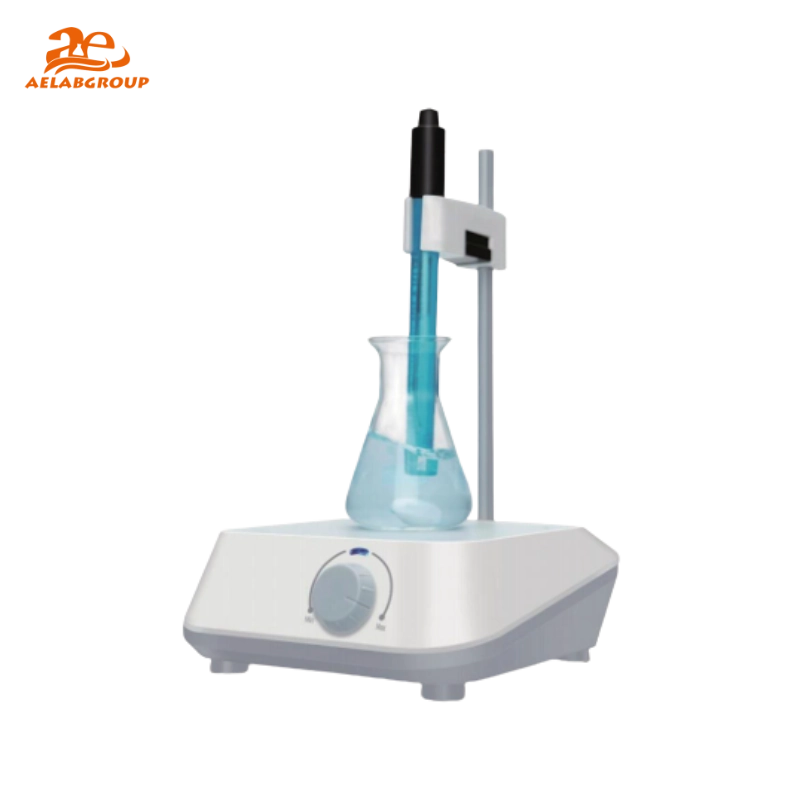

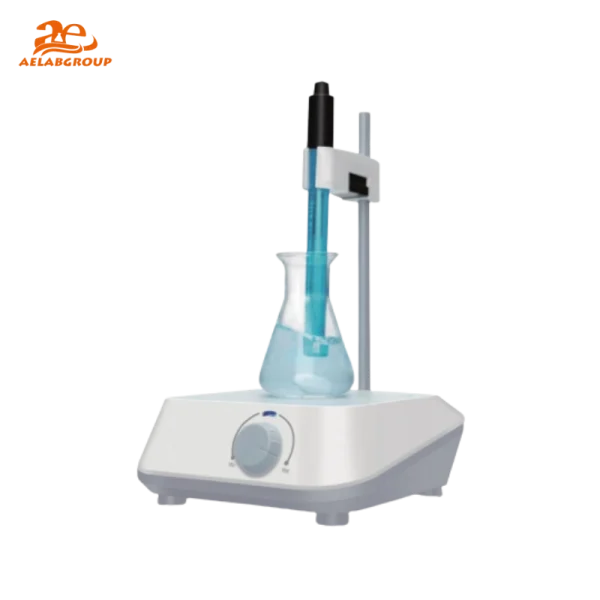

The AELAB EcoStir Square Plate Magnetic Stirrer is a compact and reliable mixing instrument designed for electrochemistry experiments, environmental monitoring, food and drug analysis, and routine liquid preparation. With its PET chemical-resistant work plate and brushless DC motor, the EcoStir provides stable and maintenance-free stirring performance.
Featuring an integrated electrode holder and 1.5 L stirring capacity, the AELAB EcoStir supports pH, ORP, conductivity, and other electrochemical sensors during operation. Its compact design, optional 12 V DC power, and durable construction make it suitable for both laboratory and mobile testing environments.
The AELAB EcoStir is constructed with a PET top plate that ensures strong chemical resistance and smooth sample handling. The brushless DC motor delivers quiet, efficient, and long-life operation with stable torque across the full 300–2000rpm speed range. Its integrated electrode holder maintains sensor alignment during electrochemical measurements, improving accuracy and consistency.
The EcoStir generates a uniform rotating magnetic field that drives a 40 mm magnetic stirring bar placed in the sample vessel. The PET work plate maintains position stability, while the scale-type speed control enables precise adjustment of mixing intensity. The system supports continuous mixing under ambient conditions of 5–40 °C and up to 80%RH.
The EcoStir supports universal AC input and optional 12 V DC operation, enabling integration into portable laboratory setups, battery-powered stations, and field monitoring kits. It is compatible with standard laboratory electrodes for pH, ORP, conductivity, and dissolved oxygen measurements.
| Model | Specifications |
|---|---|
| EcoStir (Square Plate) | 120×115mm PET plate, 300–2000rpm, 1.5L, 150×144×54mm |
| EcoStir (Round Plate) | Ø120mm PET plate, 300–2000rpm, 1.5L, 150×145×50mm |
The AELAB EcoStir is manufactured following ISO-aligned production protocols, ensuring repeatable performance, electrical safety (IP21 protection class), and long-term operational reliability. Each unit undergoes QC testing for speed accuracy, motor stability, and surface integrity.
Specifications :
| Specifications | EcoStir | EcoStir |
|---|---|---|
| Work plate size | 120×115mm | Ø120mm |
| Work plate material | PET | PET |
| Motor type | Brushless DC Motor | Brushless DC motor |
| Stirring position | 1 | 1 |
| Max. stirring quantity (H₂O) | 1.5L | 1.5L |
| Max. magnetic bar (length) | 40mm | 40mm |
| Speed range | 300–2000rpm | 300–2000rpm |
| Speed setting | Scale | scale |
| Protection class | IP21 | IP21 |
| Motor output power | 1.2W | 1.2W |
| Power | 7.2W | 7.2W |
| Voltage, Frequency | 100–240V, 50/60Hz or DC 12V | 100–240V, 50/60Hz or DC 12V |
| Dimension (W×D×H) | 150×144×54mm | 150×145×50mm |
| Weight | 0.3kg | 0.3kg |
| Permissible ambient temperature and humidity | 5–40°C, 80%RH | 5–40°C, 80%RH |
| Specifications | EcoStir | EcoStir |
|---|---|---|
| Work plate size | 120×115mm | Ø120mm |
| Work plate material | PET | PET |
| Motor type | Brushless DC Motor | Brushless DC motor |
| Stirring position | 1 | 1 |
| Max. stirring quantity (H₂O) | 1.5L | 1.5L |
| Max. magnetic bar (length) | 40mm | 40mm |
| Speed range | 300–2000rpm | 300–2000rpm |
| Speed setting | Scale | scale |
| Protection class | IP21 | IP21 |
| Motor output power | 1.2W | 1.2W |
| Power | 7.2W | 7.2W |
| Voltage, Frequency | 100–240V, 50/60Hz or DC 12V | 100–240V, 50/60Hz or DC 12V |
| Dimension (W×D×H) | 150×144×54mm | 150×145×50mm |
| Weight | 0.3kg | 0.3kg |
| Permissible ambient temperature and humidity | 5–40°C, 80%RH | 5–40°C, 80%RH |
No download files available for this product.
