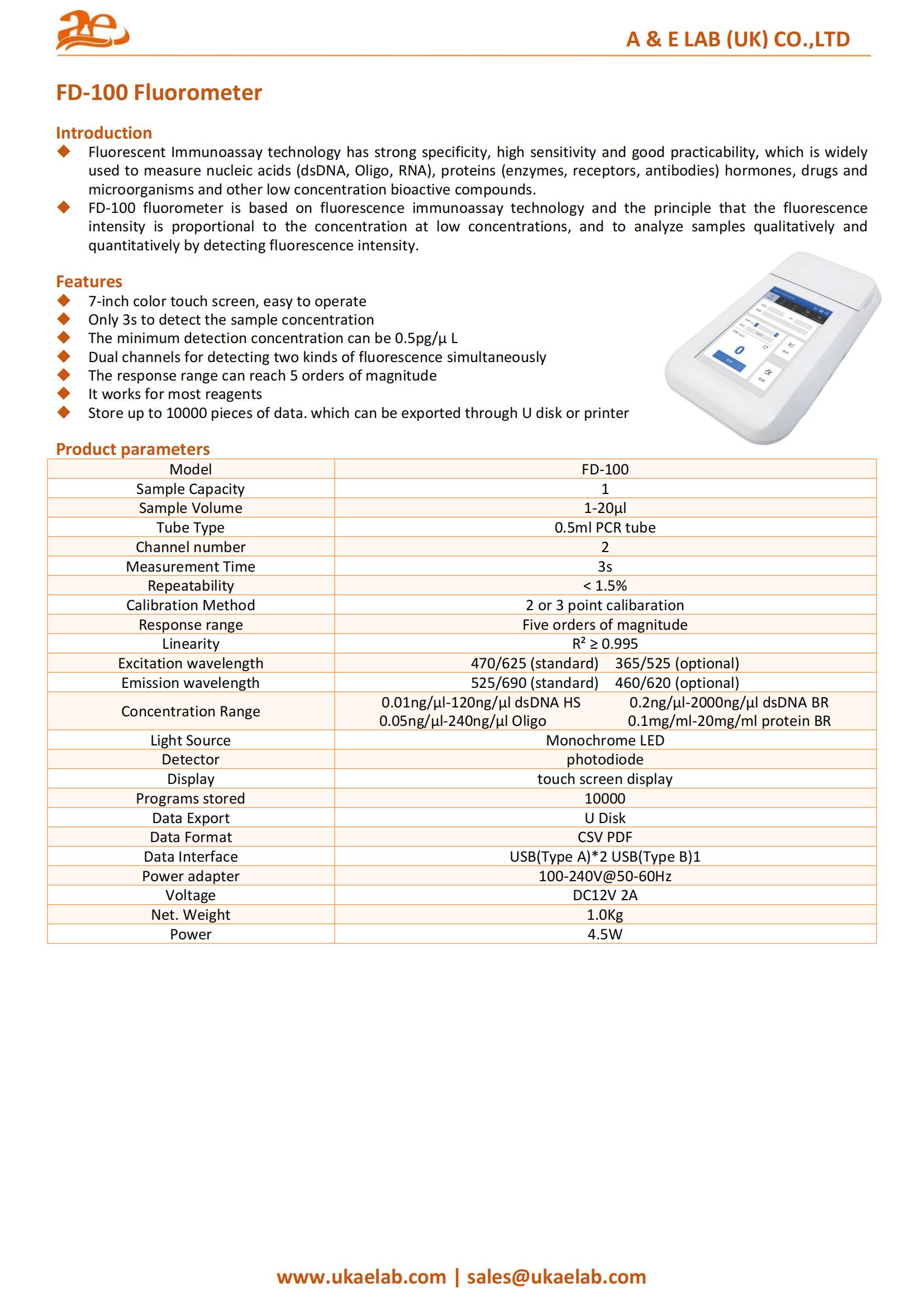

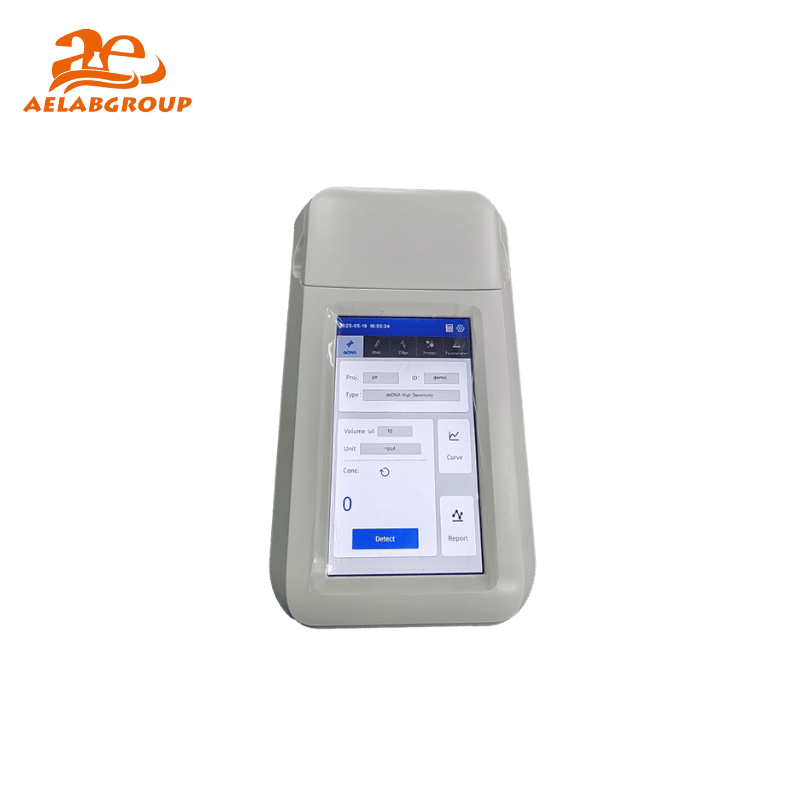

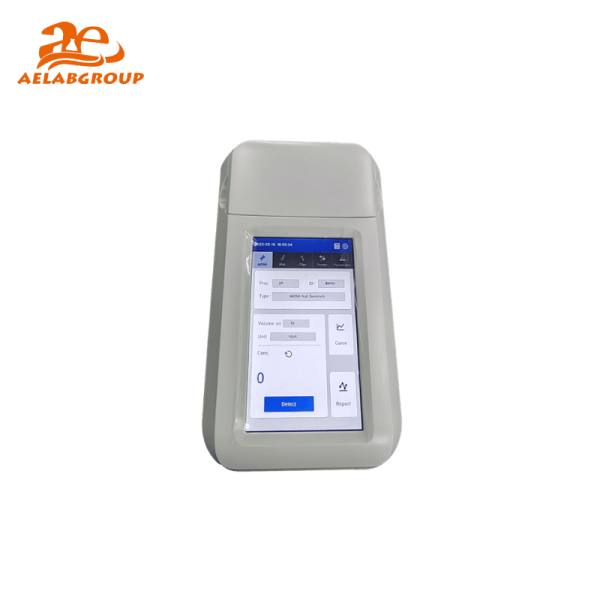

AELAB FD-100 Fluorometer – Fast & Accurate Sample Analysis

• Fluorescent Immunoassay technology has strong specificity, high sensitivity and good practicability, which is widely used to measure nucleic acids (dsDNA, Oligo, RNA), proteins (enzymes, receptors, antibodies) hormones, drugs and microorganisms and other low concentration bioactive compounds.
• FD-100 fluorometer is based on fluorescence immunoassay technology and the principle that the fluorescence intensity is proportional to the concentration at low concentrations, and to analyze samples qualitatively and quantitatively by detecting fluorescence intensity.

Features:

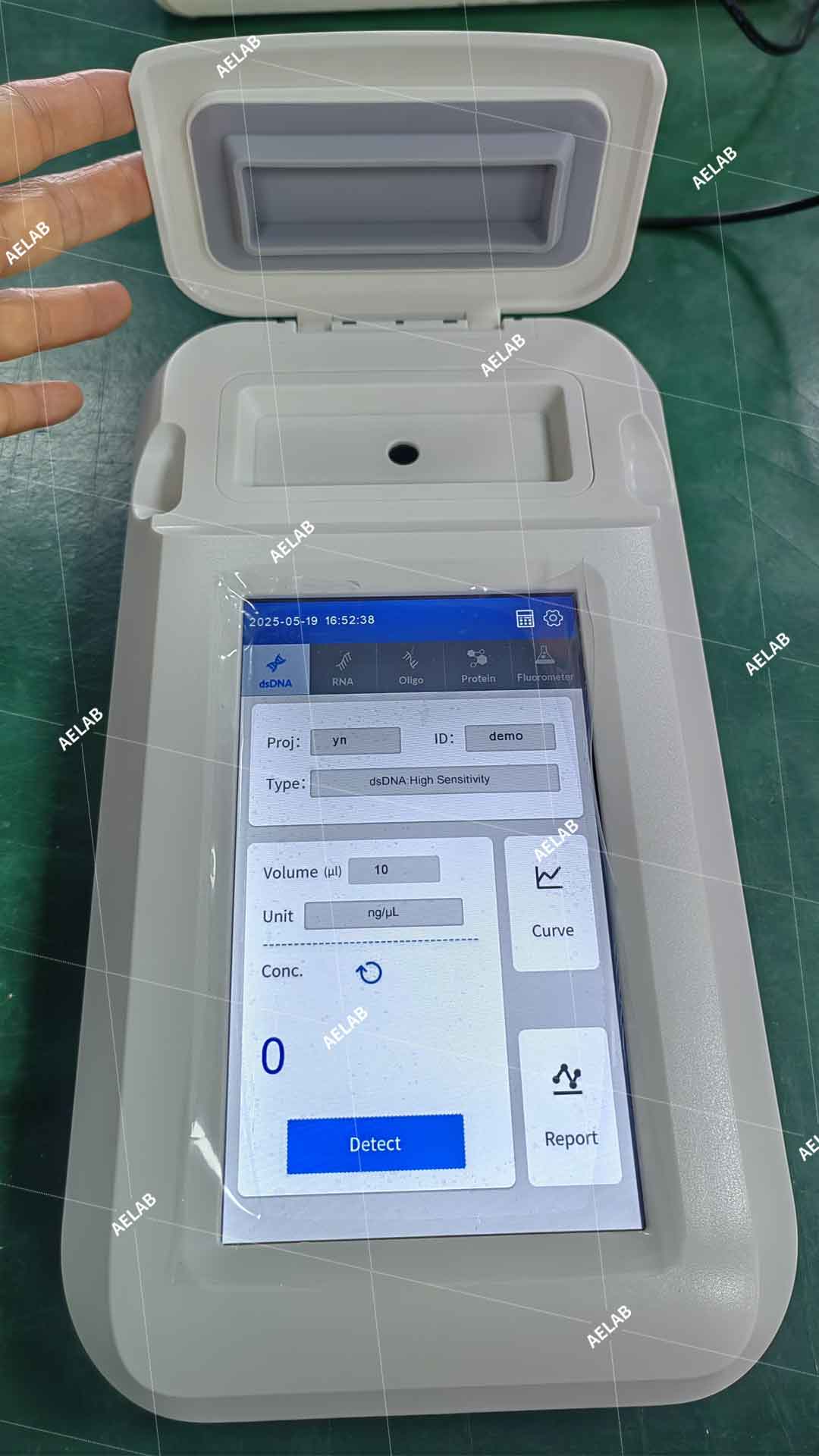

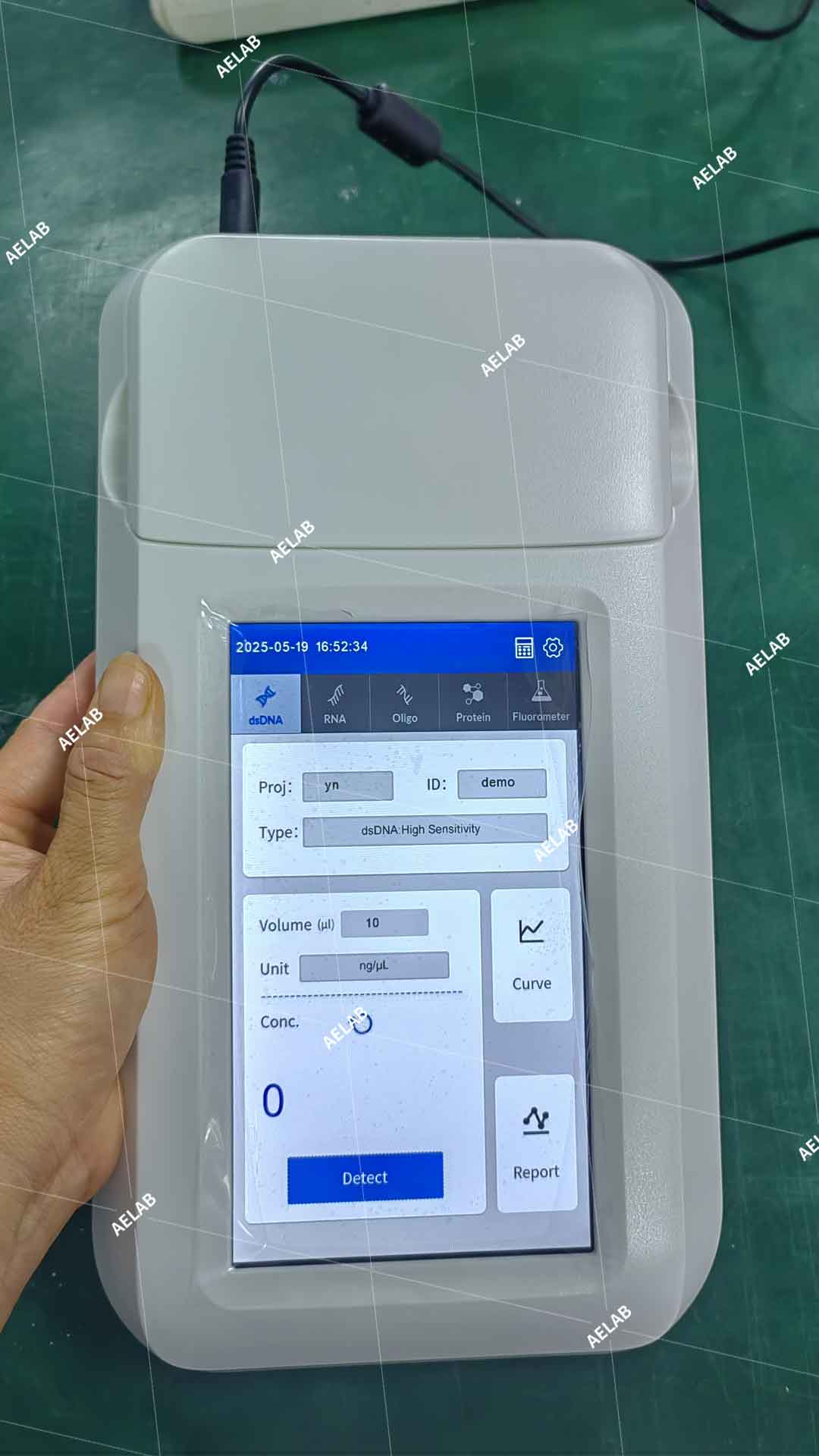

• 7-inch color touch screen, easy to operate
• Only 3s to detect the sample concentration
• The minimum detection concentration can be 0.5pg/µ L
• Dual channels for detecting two kinds of fluorescence simultaneously
• The response range can reach 5 orders of magnitude
• It works for most reagents

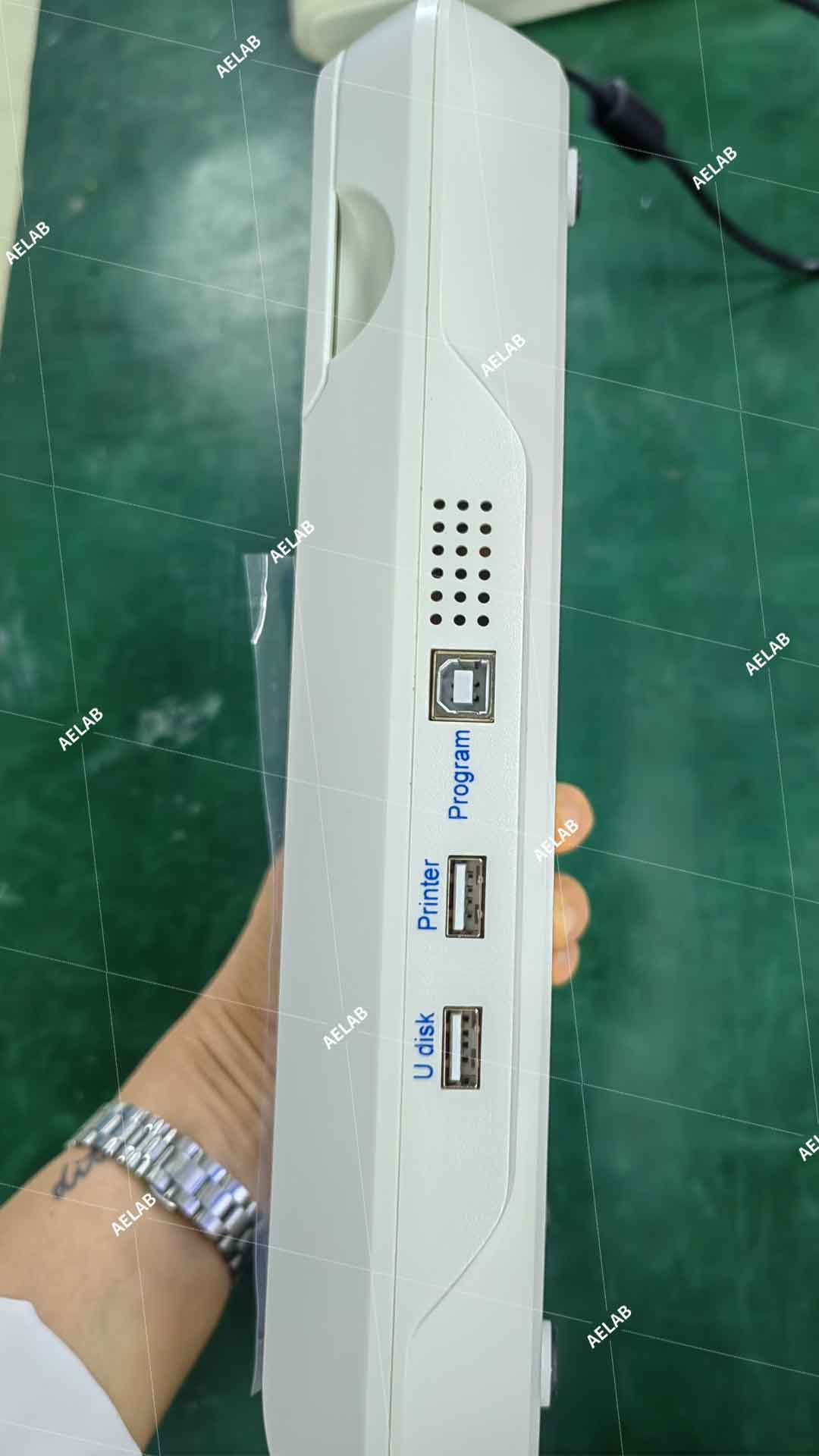

• Store up to 10000 pieces of data. which can be exported through U disk or printer

✅ 🔬 How It Works?

📈 Fluorescence Immunoassay, Optimized for Precision

The FD-100 fluorometer leverages fluorescent immunoassay technology, measuring light emitted by fluorescent-labeled samples. The system calculates concentration by correlating fluorescence intensity with analyte concentration—ideal for low-abundance DNA, RNA, proteins, and more. Dual channels allow simultaneous multi-target detection, with readings completed in just 3 seconds for swift qualitative and quantitative results.

✅ 💡 Advantages

🚀 Fast, Accurate & User-Friendly

• Ultra-Fast: Detect sample concentration in only 3 seconds

• High Sensitivity: Detects as low as 0.5 pg/µL

• Dual Channels: Run two fluorescence analyses at once

• Massive Storage: Save up to 10,000 data sets with export options

• Wide Compatibility: Works with most commercial reagents

• Portable Design: Compact (1kg) and energy-efficient (4.5W)

• Intuitive Interface: 7” touchscreen for easy operation

• Reliable Calibration: Two or three-point method ensures accuracy

✅ 🔍 Recommended Models by Use Case

🧭 Choosing the Right Tool for Your Lab

• Educational Laboratories: FD-100’s ease of use and fast response time make it perfect for student training

• Research Centers: Dual-channel detection supports complex molecular biology experiments

• Quality Control (QC) Labs: High repeatability and data traceability ideal for strict compliance environments

• Biotech Startups: Compact and affordable for budget-conscious yet quality-driven workflows

✅ 🧪 Ideal For

🔬 Applications Across Scientific Disciplines

• Molecular biology labs (DNA, RNA quantification)

• Protein research and immunoassays

• Pharmaceutical development and drug discovery

• Food safety and quality assurance testing

• Environmental and microbiological analysis

• Clinical diagnostics (under regulated environments)
