Fraction collector is one of the basic equipment for biochemistry experiments and biological drug production. It is used to automatically and quantitatively collect liquid droplets from the chromatography column, so as to achieve the purpose of packing different active groups into different tubes.

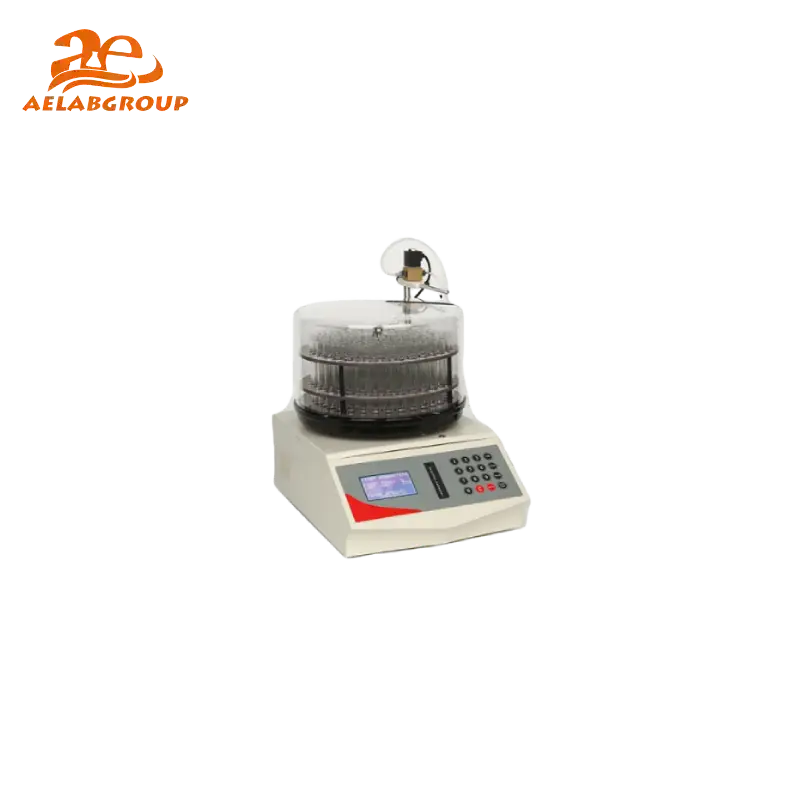

The AELAB DBS-160 (LCD display) adopts ABS material with a one-piece molding process and features an ergonomic 35° bevel control panel design for easy operation without bending. It uses an LCD liquid crystal display mode with microcomputer chip control to support accurate tube positioning and stable collection workflows.
The AELAB DBS-160 Fraction Collector incorporates durable ABS construction, a 35° inclined control panel and a large blue-film LCD display for clear visual feedback. The digital tube-labeling plate ensures each of the 160 tubes corresponds precisely to its assigned position. The round-marked test-tube tray maintains exact rotational alignment throughout the collection process.
The instrument automatically collects liquid droplets emerging from a chromatography column based on either timed intervals, drop counts or fixed-peak signal levels. The microcomputer chip provides stable control of tube indexing, collection timing (1 second to 199 hours 59 minutes 59 seconds) and optional drop-based acquisition (1–9999 drops). The external trigger interface can directly link with constant-current pumps for synchronized sample collection.
The AELAB DBS-160 includes an external trigger interface enabling direct linkage with constant-current pumps or chromatography systems. This allows synchronized fraction collection and improved chromatographic reproducibility. Data parameters remain stored for up to 10 years, supporting GLP and laboratory traceability requirements.
| Model | Specifications |
|---|---|
| AE-DBS-160 | 160 tubes, 5 ml capacity, 1 s–199 h 59 min 59 s timing range, 1–9999 drop collection, 0–100 mV fixed-peak range, LCD display, >200 h continuous operation |
The AELAB DBS-160 is suitable for biochemistry, pharmaceutical development, natural product isolation, protein purification, environmental analysis and general chromatography sample fractionation. It supports time-based, drop-based and signal-based collection modes for diverse analytical workflows.
The AELAB DBS-160 is manufactured under strict quality control protocols aligned with ISO and GLP laboratory standards. Long-term data storage, stable electronic control and robust construction ensure reliable operation in regulated scientific environments.

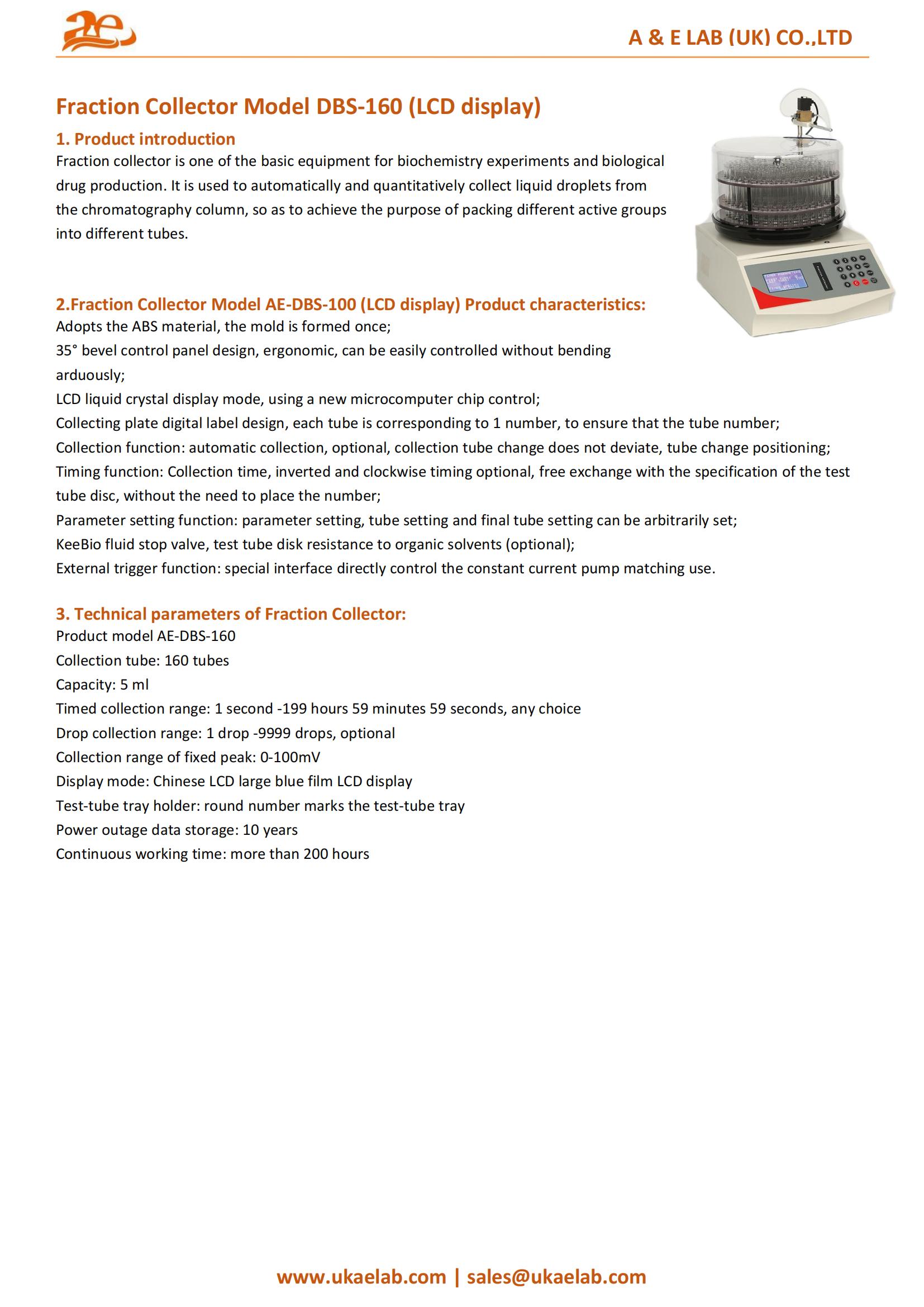

Specifications :
| Technical Parameter | AE-DBS-160 |
|---|---|
| Product model | AE-DBS-160 |
| Collection tube | 160 tubes |
| Capacity | 5 ml |
| Timed collection range | 1 second - 199 hours 59 minutes 59 seconds |
| Drop collection range | 1 drop - 9999 drops (optional) |
| Collection range of fixed peak | 0–100 mV |
| Display mode | Chinese LCD large blue film LCD display |
| Test-tube tray holder | Round number marks the test-tube tray |
| Power outage data storage | 10 years |
| Continuous working time | More than 200 hours |
| Technical Parameter | AE-DBS-160 |
|---|---|
| Product model | AE-DBS-160 |
| Collection tube | 160 tubes |
| Capacity | 5 ml |
| Timed collection range | 1 second - 199 hours 59 minutes 59 seconds |
| Drop collection range | 1 drop - 9999 drops (optional) |
| Collection range of fixed peak | 0–100 mV |
| Display mode | Chinese LCD large blue film LCD display |
| Test-tube tray holder | Round number marks the test-tube tray |
| Power outage data storage | 10 years |
| Continuous working time | More than 200 hours |
