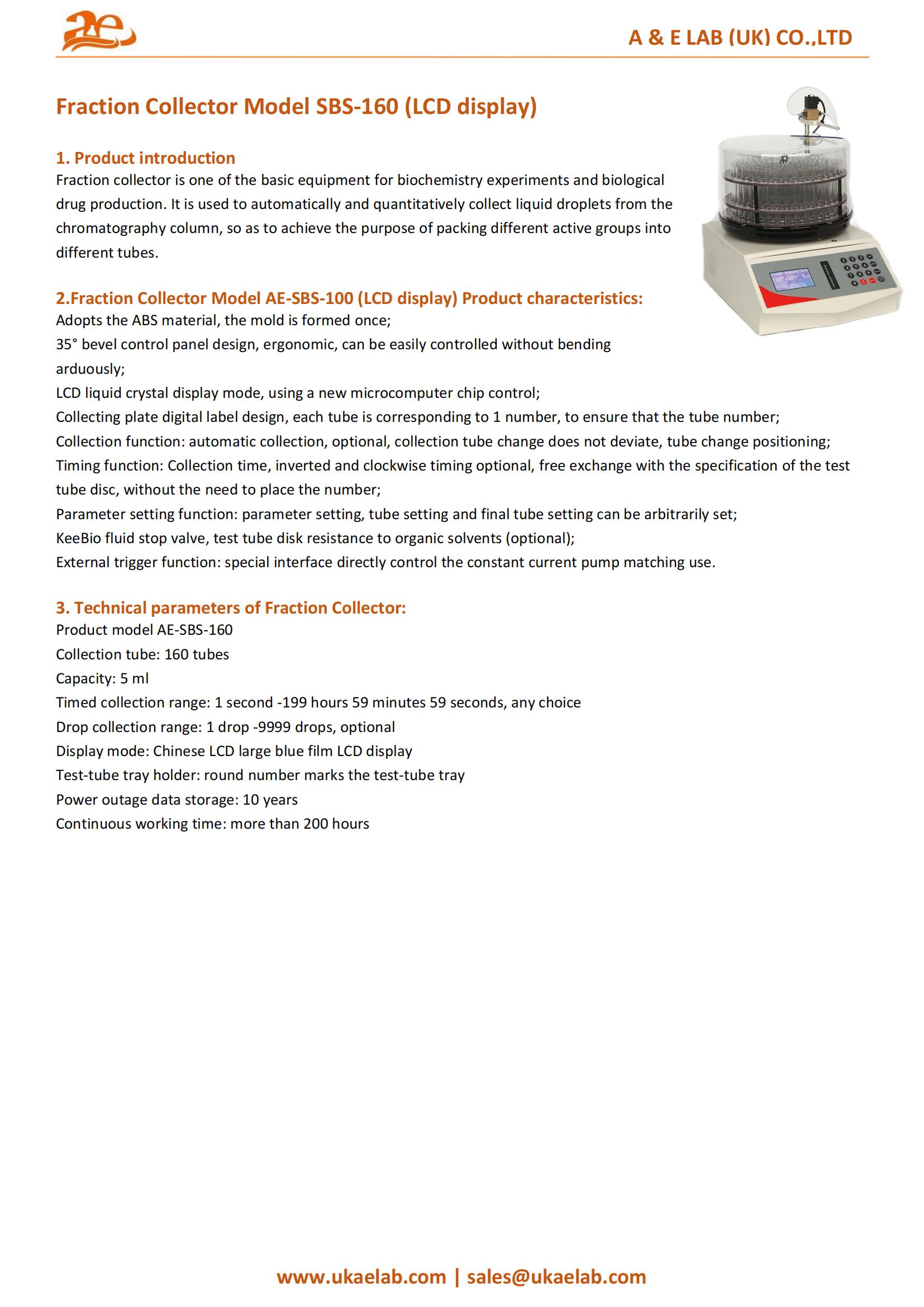

AELAB Fraction Collector SBS-160 – Precision Automated Liquid Collection System

Fraction collector is one of the basic equipment for biochemistry experiments and biological drug production. It is used to automatically and quantitatively collect liquid droplets from the chromatography column, so as to achieve the purpose of packing different active groups into different tubes.

The AELAB AE-SBS-160 (LCD display) adopts ABS material with a one-piece molded structure and incorporates ergonomic 35° bevel control panel design for simplified operation. The system uses a new microcomputer chip for LCD liquid crystal display control and supports automatic tube positioning, optional collection modes, and programmable timing.

⚙️ Design & Construction

The AELAB SBS-160 Fraction Collector is constructed from durable ABS material formed as a single mold structure for rigidity and stability. The LCD liquid crystal display provides clear real-time parameter visibility. A round numbered test-tube tray accommodates 160 tubes, enabling organized fraction indexing. The integrated digital label design ensures each tube position corresponds directly to its assigned number.

🔬 Working Principle / Testing Method

The SBS-160 operates through microcomputer-controlled collection, enabling timed, inverted, or clockwise modes depending on the chromatographic setup. Users can select either time-based collection (1 second to 199 hours 59 minutes 59 seconds) or drop-based collection (1–9999 drops). The unit regulates tube exchange automatically, maintaining consistent alignment without deviation. Parameter setting includes collection time, tube settings, and end-point configuration.

💡 Key Advantages

• Microcomputer-controlled collection ensures precise timing and drop quantification
• 160-tube tray allows large-volume fractionation workflows
• Automatic tube change maintains accurate tube positioning without manual alignment
• Programmable timing supports extended collection runs exceeding 200 hours
• Non-volatile memory stores collection parameters for up to 10 years after power loss
• Ergonomic 35° panel angle improves user visibility and reduces fatigue
• Optional KeeBio fluid stop valve and solvent-resistant disk for demanding chromatography solvents

🔗 Connectivity & Integration

The system supports external trigger input for direct interfacing with constant-current chromatography pumps. This enables synchronized fraction collection matching flow rate or elution profiles. Additional optional accessories allow integration into broader laboratory automation workflows.

🧠 Model Insight

🧪 Testing Applications

The AELAB SBS-160 Fraction Collector is suited for chromatographic separation, biochemical sample purification, protein fractionation, natural product isolation, and pharmaceutical research. It supports analytical and preparative chromatography workflows requiring consistent, quantifiable liquid collection.

Compliance & Quality Assurance

The instrument is manufactured under AELAB quality management protocols and conforms to laboratory performance standards for automated collection systems. Calibration traceability, long-term data retention, and stable microcomputer control support GLP-oriented laboratory environments.
