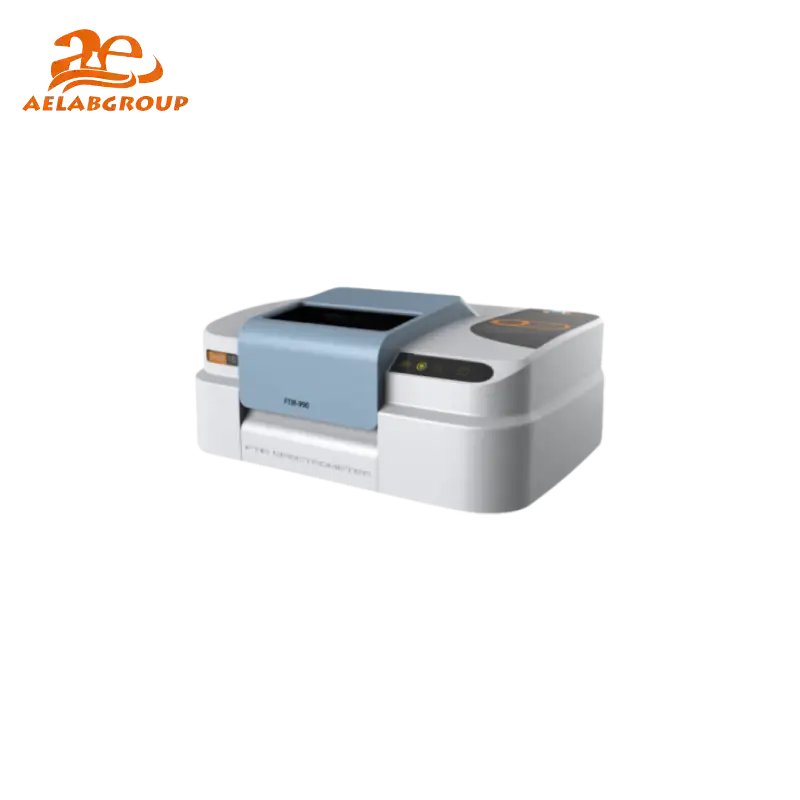

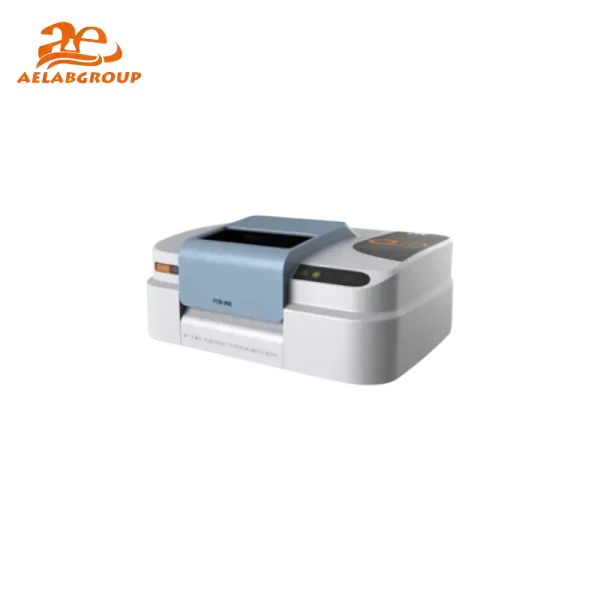

The AELAB FTIR-990 is a high-precision Fourier Transform Infrared Spectrometer designed for advanced spectral analysis across various industries. With a user-friendly design and exceptional sensitivity, it empowers researchers and lab professionals with reliable and repeatable results.
FTIR-990 Fourier transform infrared spectrometer is an independent research and development of products, it is the most competitive FTIR on the world, convenient installation, simple use, convenient maintenance, our FTIR is wildly used by materials science, bio pharmaceutical, petrochemical, food safety and other industry analysis instruments, it’s also adopted by university laboratory for scientific research and teaching.
Principle
The FTIR with Michelson interferometer principle, the light emitted by the light source by Michelson interferometer to optical interference, let interference illumination samples, the receiver receives the interference light with sample information, and then by the computer software by transform to obtain the spectra of the samples.
Based on the Michelson interferometer principle, the FTIR-990 emits light that is split and interfered through precise optics. The resulting interference pattern is passed through the sample, where specific wavelengths are absorbed. The modified signal is collected by a sensitive DLATGS detector and transformed into a spectral graph using proprietary software—providing rapid, high-resolution insights into sample composition.
✅ Unmatched Precision: ±0.01 cm⁻¹ accuracy for detailed molecular analysis
✅ Superior Signal Clarity: 30,000:1 signal-to-noise ratio for high-fidelity spectra
✅ Plug & Play Setup: Hassle-free installation and minimal maintenance
✅ USA Components: Premium beamsplitter and light source ensure longevity
✅ Versatile Use: Supports material science, pharma, food safety, and beyond
🧪 Educational Labs: Ideal for student training and foundational spectroscopy courses
🔬 Research Institutes: Supports complex spectral analysis with top-tier accuracy
🏭 Quality Control Labs: Quick and reliable sample verification for manufacturing
💊 Pharmaceutical R&D: Detect molecular interactions and purity in formulations
Food safety analysis
Petrochemical evaluation
Biopharmaceutical quality checks
Material science research
University teaching labs
Chemical identification and forensic applications

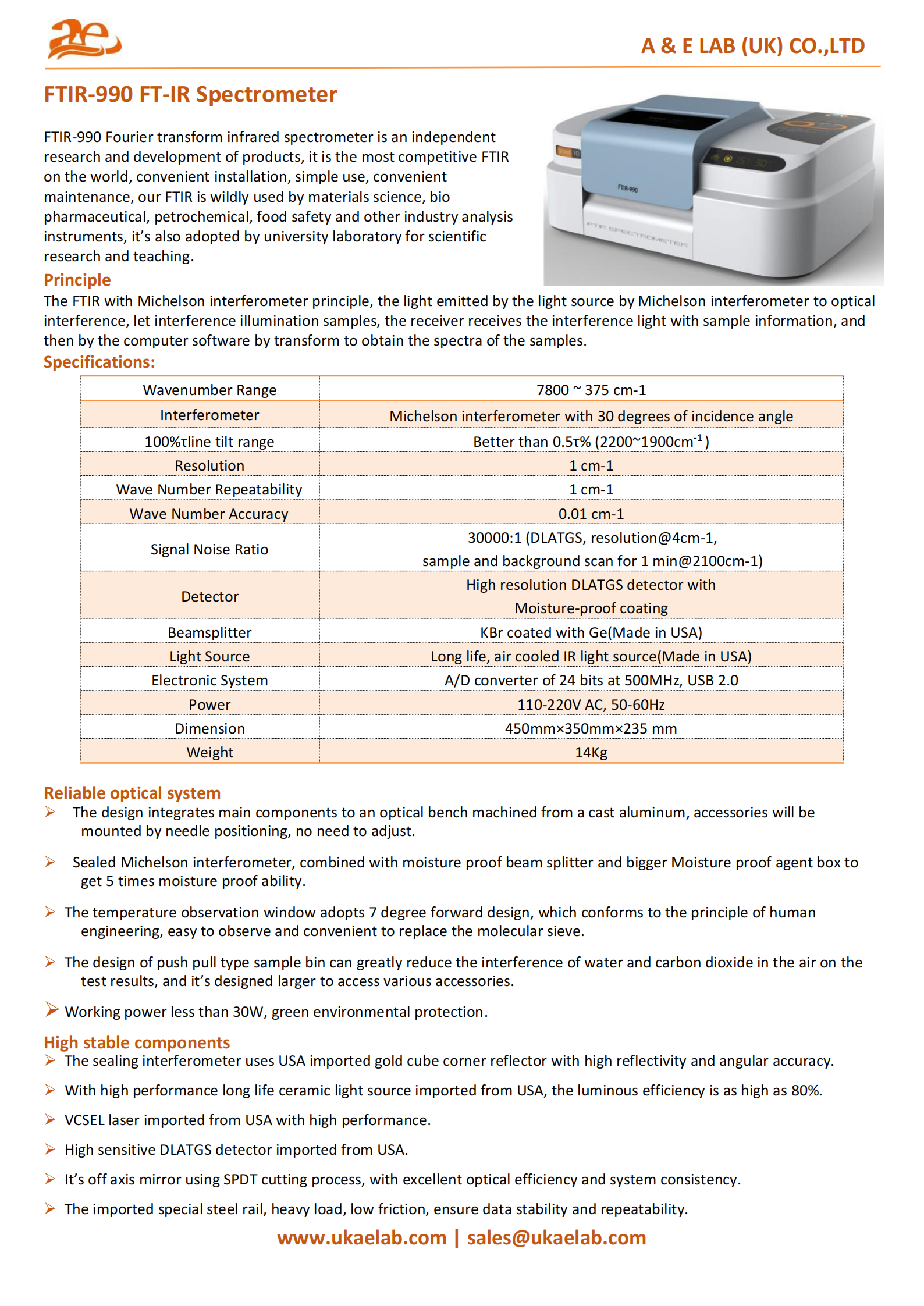

Specifications :
| Wavenumber Range | 7800 ~ 375 cm-1 |
| Interferometer | Michelson interferometer with 30 degrees of incidence angle |
| 100%τline tilt range | Better than 0.5τ% (2200~1900cm-1 ) |
| Resolution | 1 cm-1 |
| Wave Number Repeatability | 1 cm-1 |
| Wave Number Accuracy | 0.01 cm-1 |
| Signal Noise Ratio | 30000:1 (DLATGS, resolution@4cm-1,
sample and background scan for 1 min@2100cm-1) |
| Detector | High resolution DLATGS detector with
Moisture-proof coating |
| Beamsplitter | KBr coated with Ge(Made in USA) |
| Light Source | Long life, air cooled IR light source(Made in USA) |
| Electronic System | A/D converter of 24 bits at 500MHz, USB 2.0 |
| Power | 110-220V AC, 50-60Hz |
| Dimension | 450mm×350mm×235 mm |
| Weight | 14Kg |
| Wavenumber Range | 7800 ~ 375 cm-1 |
| Interferometer | Michelson interferometer with 30 degrees of incidence angle |
| 100%τline tilt range | Better than 0.5τ% (2200~1900cm-1 ) |
| Resolution | 1 cm-1 |
| Wave Number Repeatability | 1 cm-1 |
| Wave Number Accuracy | 0.01 cm-1 |
| Signal Noise Ratio | 30000:1 (DLATGS, resolution@4cm-1,
sample and background scan for 1 min@2100cm-1) |
| Detector | High resolution DLATGS detector with
Moisture-proof coating |
| Beamsplitter | KBr coated with Ge(Made in USA) |
| Light Source | Long life, air cooled IR light source(Made in USA) |
| Electronic System | A/D converter of 24 bits at 500MHz, USB 2.0 |
| Power | 110-220V AC, 50-60Hz |
| Dimension | 450mm×350mm×235 mm |
| Weight | 14Kg |
