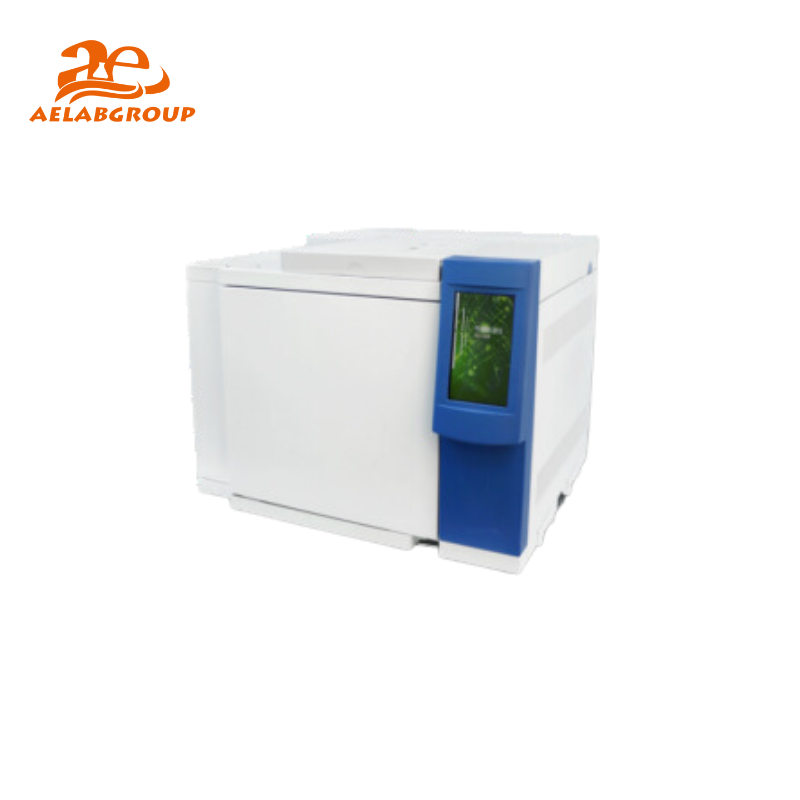

The AELAB GC126N Gas Chromatograph integrates a 7-inch color touch screen with a friendly man–machine interface, providing smooth control and efficient operation. The system utilizes multi-core 32-bit embedded hardware to ensure reliable and stable analytical performance. Carrier, hydrogen, and air flow are monitored via a digital pressure display, enabling accurate regulation across chromatographic workflows.
The GC126N incorporates gas-shortage and heating-control protection, dual-channel data acquisition with 50 ms sampling, logarithmic amplification for stable signal output, and external trigger functionality. With eight event extension interfaces and RJ45 network connectivity, the instrument supports external automation, remote data management, and seamless sampler integration.
The AELAB GC126N features a temperature-controlled column oven capable of 5°C to 400°C operation with ±0.1°C accuracy and up to nine programmable temperature ramps. The detector modules—including FID, TCD, ECD, and FPD—are built for stable high-temperature use, with dedicated heating zones for injectors, detectors, and auxiliary channels. The robust mechanical frame and modular design support long-term analytical reliability and easy maintenance.
The GC126N performs quantitative and qualitative separation by transporting vaporized analytes through a temperature-controlled column using a regulated carrier gas. Dual-channel acquisition processes chromatographic signals at high speed, while the selected detector (FID, TCD, ECD, or FPD) converts chemical or physical interactions into measurable electrical outputs. Users can execute split/splitless, constant-pressure, or PTV-assisted injection depending on sample requirements.
The system includes Ethernet (RJ45) for network communication, external event triggers, multi-port I/O support, and compatibility with third-party gas chromatograph autosamplers. Data can be exported to laboratory information systems, enabling GLP-compliant workflow documentation.
| Model | Specifications |
|---|---|
| GC126N | Dual-channel GC system, 5°C–400°C oven range, FID/TCD/ECD/FPD detectors, 6 heating zones, autosampler compatible |
The AELAB GC126N is suited for environmental monitoring, petrochemical characterization, fuel gas analysis, food safety testing, pharmaceutical impurity profiling, polymer research, and general laboratory QC/QA workflows requiring precise chromatographic separation and quantification.
The instrument follows ISO-aligned manufacturing standards, incorporates GLP-ready data handling, and undergoes rigorous AELAB calibration verification to ensure consistent analytical performance.

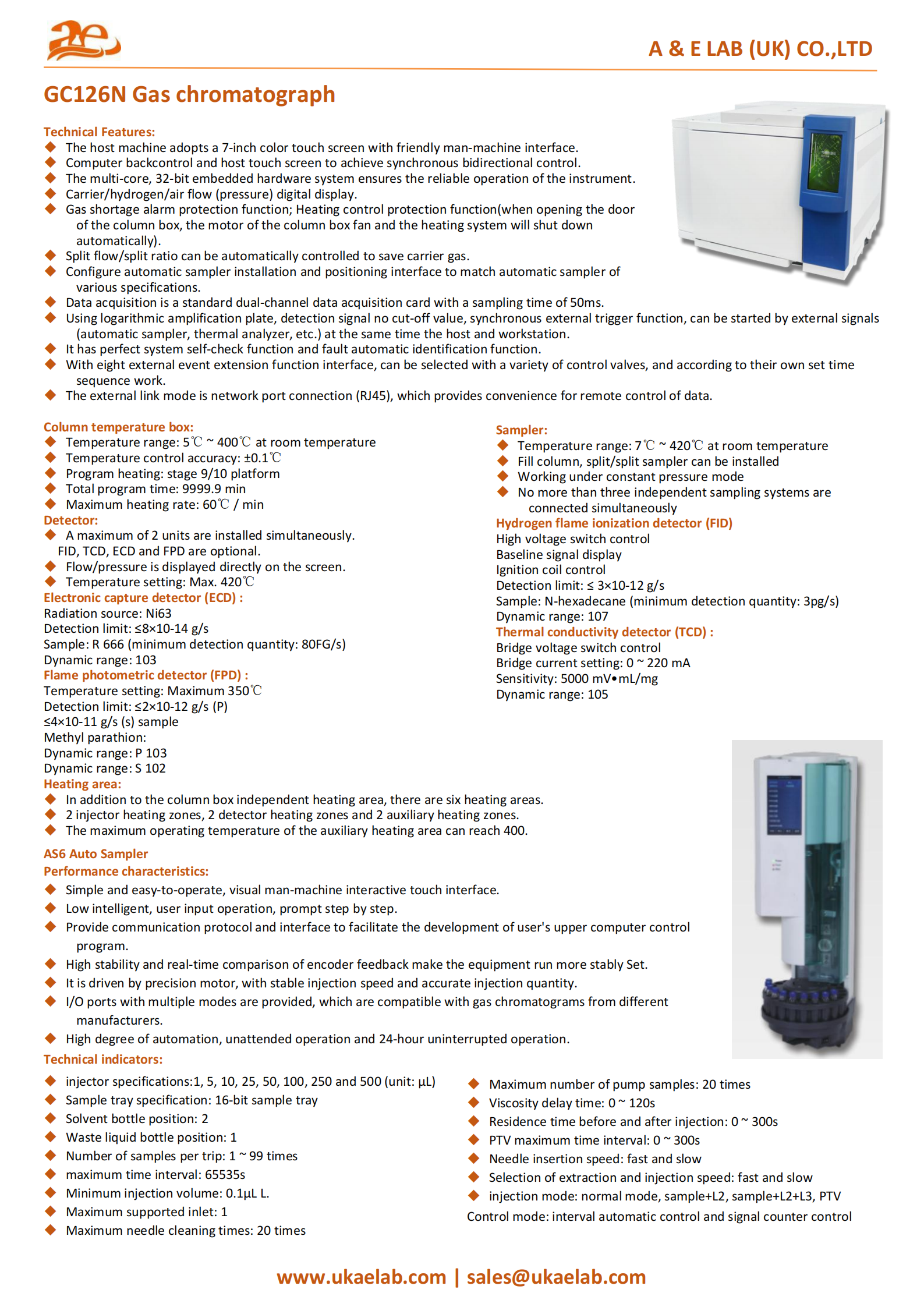

Specifications :
| AELAB GC126N Gas Chromatograph – Specifications | |
|---|---|
| Column Temperature Box | |
| Temperature range | 5°C ~ 400°C at room temperature |
| Temperature control accuracy | ±0.1°C |
| Program heating | Stage 9/10 platform |
| Total program time | 999.9 min |
| Maximum heating rate | 60°C/min |
| Detector | |
| Maximum number of detectors | 2 units installed simultaneously |
| Optional detector types | FID, TCD, ECD, FPD |
| Temperature setting | Max. 420°C |
| ECD (Electron Capture Detector) | |
| Radiation source | Ni63 |
| Detection limit | ≤8×10⁻¹⁴ g/s |
| Sample R | 666 (minimum detection quantity: 80FG/s) |
| Dynamic range | 103 |
| FPD (Flame Photometric Detector) | |
| Temperature setting | Maximum 350°C |
| Detection limit | S ≤2×10⁻¹² g/s; P ≤4×10⁻¹¹ g/s |
| Methyl parathion dynamic range (P) | 103 |
| Dynamic range (S) | 102 |
| FID (Flame Ionization Detector) | |
| High-voltage switch control | Yes |
| Baseline signal display | Yes |
| Ignition coil control | Yes |
| Detection limit (S) | ≤3×10⁻¹² g/s |
| Sample | N-hexadecane (minimum detection quantity: 3 pg/s) |
| Dynamic range | 107 |
| TCD (Thermal Conductivity Detector) | |
| Bridge voltage switch control | Yes |
| Bridge current setting | 0 ~ 220 mA |
| Sensitivity | 5000 mV·mL/mg |
| Dynamic range | 105 |
| Heating Areas | |
| Number of heating zones | 6 zones (2 injector, 2 detector, 2 auxiliary) |
| Maximum auxiliary temperature | 400°C |
| Sampler | |
| Temperature range | 7°C ~ 420°C |
| Supported injection | Fill column, split/splitless |
| Operating mode | Constant pressure |
| Maximum independent systems | 3 simultaneous sampling systems |
| AS6 Auto Sampler – Technical Indicators | |
| Injector specifications | 1, 5, 10, 25, 50, 100, 250, 500 µL |
| Sample tray specification | 16-bit sample tray |
| Solvent bottle position | 2 |
| Waste liquid bottle position | 1 |
| Number of samples per trip | 1 ~ 99 |
| Maximum time interval | 65535 s |
| Minimum injection volume | 0.1 µL |
| Maximum supported inlet | 1 |
| Maximum needle cleaning times | 20 times |
| Maximum pump samples | 20 times |
| Viscosity delay time | 0 ~ 120 s |
| Residence time before/after injection | 0 ~ 300 s |
| PTV maximum time interval | 0 ~ 300 s |
| Needle insertion speed | Fast / Slow |
| Injection modes | Normal, sample+L2, sample+L2+L3, PTV |
| Control mode | Interval automatic control & signal counter control |
| AELAB GC126N Gas Chromatograph – Specifications | |
|---|---|
| Column Temperature Box | |
| Temperature range | 5°C ~ 400°C at room temperature |
| Temperature control accuracy | ±0.1°C |
| Program heating | Stage 9/10 platform |
| Total program time | 999.9 min |
| Maximum heating rate | 60°C/min |
| Detector | |
| Maximum number of detectors | 2 units installed simultaneously |
| Optional detector types | FID, TCD, ECD, FPD |
| Temperature setting | Max. 420°C |
| ECD (Electron Capture Detector) | |
| Radiation source | Ni63 |
| Detection limit | ≤8×10⁻¹⁴ g/s |
| Sample R | 666 (minimum detection quantity: 80FG/s) |
| Dynamic range | 103 |
| FPD (Flame Photometric Detector) | |
| Temperature setting | Maximum 350°C |
| Detection limit | S ≤2×10⁻¹² g/s; P ≤4×10⁻¹¹ g/s |
| Methyl parathion dynamic range (P) | 103 |
| Dynamic range (S) | 102 |
| FID (Flame Ionization Detector) | |
| High-voltage switch control | Yes |
| Baseline signal display | Yes |
| Ignition coil control | Yes |
| Detection limit (S) | ≤3×10⁻¹² g/s |
| Sample | N-hexadecane (minimum detection quantity: 3 pg/s) |
| Dynamic range | 107 |
| TCD (Thermal Conductivity Detector) | |
| Bridge voltage switch control | Yes |
| Bridge current setting | 0 ~ 220 mA |
| Sensitivity | 5000 mV·mL/mg |
| Dynamic range | 105 |
| Heating Areas | |
| Number of heating zones | 6 zones (2 injector, 2 detector, 2 auxiliary) |
| Maximum auxiliary temperature | 400°C |
| Sampler | |
| Temperature range | 7°C ~ 420°C |
| Supported injection | Fill column, split/splitless |
| Operating mode | Constant pressure |
| Maximum independent systems | 3 simultaneous sampling systems |
| AS6 Auto Sampler – Technical Indicators | |
| Injector specifications | 1, 5, 10, 25, 50, 100, 250, 500 µL |
| Sample tray specification | 16-bit sample tray |
| Solvent bottle position | 2 |
| Waste liquid bottle position | 1 |
| Number of samples per trip | 1 ~ 99 |
| Maximum time interval | 65535 s |
| Minimum injection volume | 0.1 µL |
| Maximum supported inlet | 1 |
| Maximum needle cleaning times | 20 times |
| Maximum pump samples | 20 times |
| Viscosity delay time | 0 ~ 120 s |
| Residence time before/after injection | 0 ~ 300 s |
| PTV maximum time interval | 0 ~ 300 s |
| Needle insertion speed | Fast / Slow |
| Injection modes | Normal, sample+L2, sample+L2+L3, PTV |
| Control mode | Interval automatic control & signal counter control |
