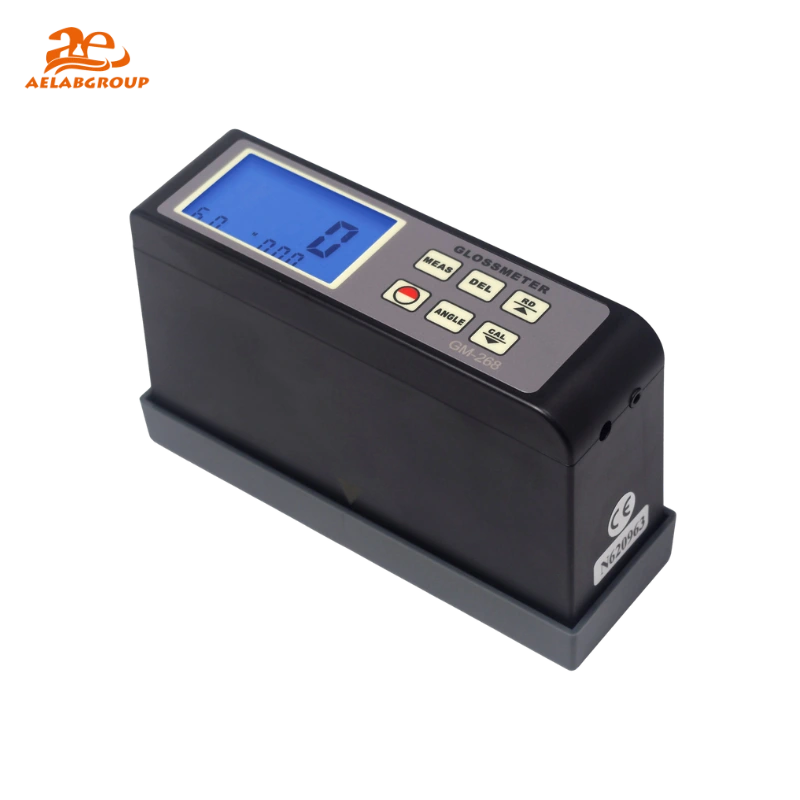

AELAB GM-268 20°/60°/85° Gloss Meter for Multi-Angle Surface Gloss Measurement

The AELAB GM-268 20°/60°/85° Gloss Meter performs quantitative surface gloss measurement for coatings, printed materials, plastics, ceramics, stone, and metallic finishes. The GM-268 is engineered for repeatable gloss testing in laboratory analysis, industrial inspection, and production quality control environments, ensuring stable results for surface appearance evaluation.

The AELAB GM-268 Gloss Meter follows international gloss measurement standards including ASTM D523, ASTM D1455, ASTM C346, ASTM C584, ASTM D2457, DIN EN ISO 2813, DIN 67530, EN ISO 7668, JIS Z8741, and GB/T 13891. The GM-268 supports fast gloss assessment, auto calibration, data storage up to 254 groups, and an easy-to-read 4-digit backlit LCD for low-light operation.

⚙️ Design & Construction

The AELAB GM-268 is a compact, integral-type gloss meter designed for portable surface gloss measurement. The GM-268 integrates multi-angle measurement geometry (20°/60°/85°) and an elliptical measuring area of 7 mm × 14 mm to stabilize gloss readings across curved, flat, and coated surfaces. A 4-digit backlit LCD improves measurement visibility, while the durable handheld form supports routine field inspection and laboratory QA workflows.

🔬 Working Principle / Testing Method

The AELAB GM-268 Gloss Meter quantifies gloss units (GU) by projecting a controlled light source at fixed incident angles of 20°, 60°, and 85°, then measuring the reflected intensity from the test surface. The GM-268 calculates gloss based on the reflection ratio relative to calibration standards, enabling reliable comparison of coating quality, surface cleanliness, and material finish consistency. Auto calibration maintains measurement stability and supports repeatability of ±0.5 GU across repeated tests.

💡 Key Advantages

• The AELAB GM-268 Gloss Meter measures at 20°/60°/85° for high gloss, mid gloss, and low gloss surface evaluation
• Wide gloss measurement range of 0.1 GU–200 GU supports coatings, inks, plastics, ceramics, stone, and metal finishes
• High measurement accuracy of ±1.0 GU and repeatability of ±0.5 GU ensure consistent quality control results
• 0.1 resolution enables sensitive gloss variation detection during production and inspection testing
• Stores 254 groups of measurements for batch testing, sampling, and traceable QC documentation
• Auto calibration stabilizes gloss measurement performance for routine laboratory and industrial use
• Compact design (140 mm × 45 mm × 75 mm) with 305 g weight supports portable gloss inspection

🔗 Connectivity & Integration

• The AELAB GM-268 supports USB and RS-232 data output to connect with PC-based quality control workflows
• Bluetooth data output is available as an option for wireless test result transfer
• Data memorization (254 groups) supports GLP-style traceability and structured reporting for laboratory testing

🧪 Testing Applications

The AELAB GM-268 Gloss Meter is widely used for surface gloss measurement in laboratory, industrial, and diagnostic material inspection processes. The GM-268 supports gloss testing for floor maintenance inspection, surface cleaning quality control, stone and ceramic tile gloss measurement, and appearance evaluation of polished metal surfaces. The GM-268 is also suitable for gloss quantification of paint, baking varnish, coating materials, printing ink, paper, bamboo wood, plastic, and film-based materials in manufacturing and packaging workflows.

Compliance & Quality Assurance

The AELAB GM-268 Gloss Meter is designed in accordance with recognized gloss measurement standards including ASTM D523, DIN EN ISO 2813, DIN 67530, JIS Z8741, and GB/T 13891. The GM-268 supports calibrated gloss measurement using a holder with calibration standard to ensure traceable repeatability for quality control verification. Operation stability is maintained under operating conditions of 0–40 °C and humidity <85%RH, supporting structured laboratory QA and industrial inspection programs.

For multi-angle surface gloss measurement, the AELAB GM-268 Gloss Meter provides stable performance, verified accuracy, and portable operation for coatings, printing ink, plastics, ceramics, stone, and polished metal quality control testing.
