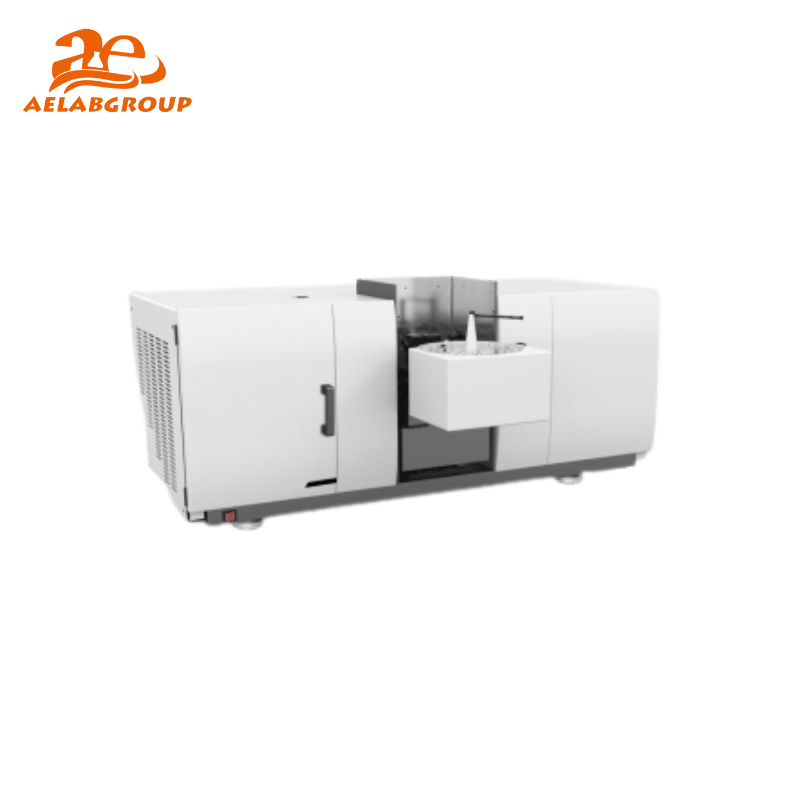

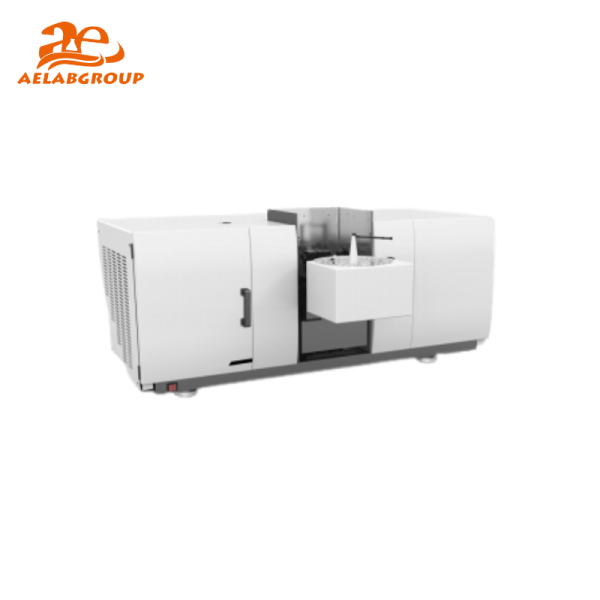

AELAB T8001 Graphite Furnace Atomic Absorption Spectrometer (GFAAS)

The AELAB T8001 Graphite Furnace Atomic Absorption Spectrometer is a high-performance, computer-controlled instrument designed for reliable trace metal analysis. Operated via a USB 3.0 interface, it integrates the graphite furnace power supply and absorption host into a single housing, minimizing cable length and electromagnetic interference while enhancing graphite tube heating efficiency. The 150-position rotary automatic sampler ensures stable, accurate, and repeatable operation.

⚙️ Design & Construction

The T8001 employs an integrated total reflection achromatic optical system using concave mirrors to eliminate color-difference errors between focal points, improving optical efficiency. The streamlined sheet-metal enclosure provides superior thermal stability and durability. The graphite furnace features micro-resistance heating, precision temperature control (± 1 %), and real-time monitoring of carrier gas and temperature feedback.

🔬 Working Principle / Testing Method

The system utilizes a Czerny–Turner monochromator with 1800 lines/mm grating and 230 nm diffraction for element isolation. During operation, metal atoms are atomized within the graphite tube, and absorbance is measured against a deuterium lamp background correction system (over 60 times correction capability). Up to seven lamps can be preheated, enabling rapid element switching for cadmium, lead, zinc, and other heavy-metal analyses.

💡 Key Advantages

• Integrated graphite furnace and host minimize electromagnetic interference.
• USB 3.0 communication ensures high-speed data acquisition and transfer.
• Heating rate up to 3000 °C/s with ± 1 % temperature precision.
• Low detection limit ≤ 1 pg for cadmium measurement.
• Automatic five-gear spectral bandwidth switching (0.1–1.4 nm).
• 230 nm grating splitting system for high resolution and signal stability.
• Fully automated furnace control with 150-position sampler.

🔗 Connectivity & Integration

The instrument supports USB 3.0 interface for rapid data transmission and external PC control. Compatible with Windows XP and Windows 7 systems, it includes bilingual (Chinese/English) analytical software for quantitative and qualitative analysis, spectral correction, and GLP-compliant report output.

🧠 Model Insight

🧪 Testing Applications

The AELAB T8001 is ideal for environmental, food safety, pharmaceutical, and metallurgical laboratories. It quantifies trace metals such as Cd, Pb, Zn, Cu, Fe, and Ni in water, soil, biological, and industrial samples with superior sensitivity and repeatability.

Compliance & Quality Assurance

Manufactured under ISO and CE guidelines, the T8001 ensures GLP compliance, traceable calibration accuracy, and strict AELAB quality control standards for laboratory and industrial use.
