AELAB Growth Chamber with Vertical Light LB-N-II Series – Precision Environmental Simulation
Product Image

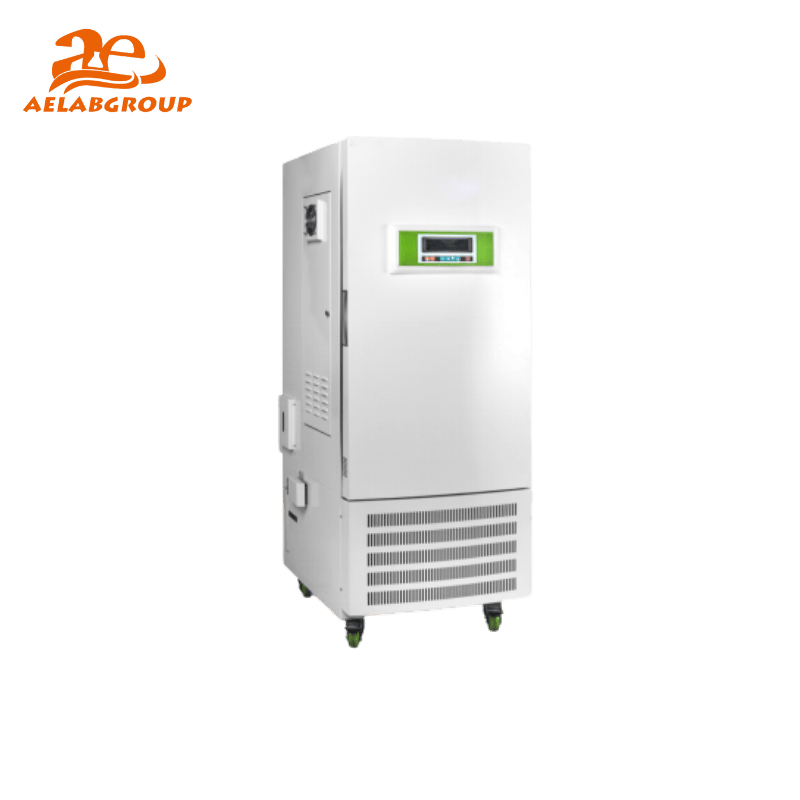

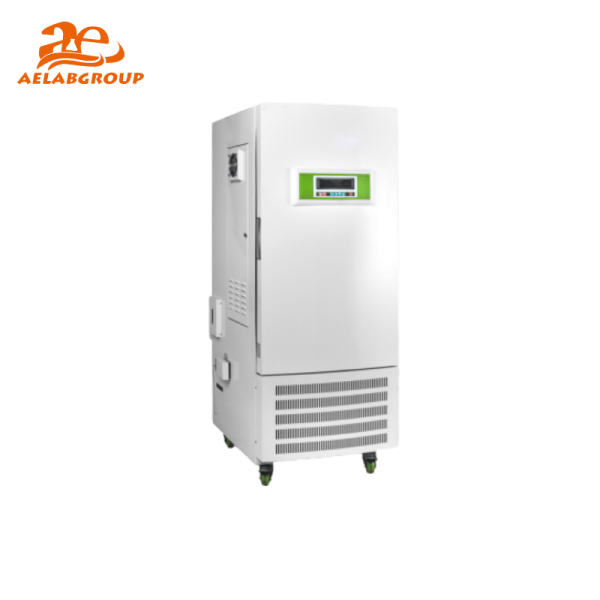

AELAB Growth Chamber with Vertical Light LB-N-II Series – Precision Environmental Simulation

The AELAB Growth Chamber with Vertical Light LB-N-II Series provides precise temperature and light regulation for plant growth, seed germination, and microbial research. Featuring dual refrigeration systems, LED dimming illumination, and a polished stainless-steel chamber, it ensures long-term stable operation under controlled environmental conditions.
Modles : LB-N-II Series
Instant Quote
whatsapp Whatsapp
Send Email

The AELAB Growth Chamber with Vertical Light LB-N-II Series is designed for precision-controlled cultivation of plants, seeds, and microbial samples. Featuring advanced refrigeration switching, LED illumination, and stainless-steel construction, it provides a stable, high-accuracy environment for long-term experimental and industrial research.



⚙️ Design & Construction

The LB-N-II Series incorporates a dual refrigeration system for uninterrupted operation. The inner tempered-glass door allows easy observation, while the magnetic-seal outer door ensures efficient insulation. The chamber interior is constructed from polished Stainless Steel with adjustable moveable grids, and the exterior uses durable powder-coated steel. A large LCD screen displays real-time temperature and light intensity with multi-segment timing and program control.



🔬 Working Principle / Testing Method

The AELAB LB-N-II Series maintains a stable climate through precise PID temperature and lighting regulation. LED light boards offer stepless dimming for variable wavelength control, enabling simulation of natural daylight or specialized plant growth spectra. Integrated sensors monitor temperature uniformity, while USB connectivity allows data recording and parameter storage in case of power loss.



💡 Key Advantages

  • Dual refrigeration systems ensure continuous and fault-free operation
  • Fluorine-free compressor design provides eco-friendly reliability
  • Multi-segment LCD control enables high-precision temperature and light programming
  • Stainless-steel interior with removable grids for easy cleaning and configuration
  • Audible and visual alarms for temperature and compressor protection
  • Over-temperature and over-current safety systems for secure operation
  • Optional spectrum LEDs for plant-specific research (White/Blue/Red/Yellow/Plant growth light)



🔗 Connectivity & Integration

All LB-N-II models include a USB port for data export and PC connection. The integrated system supports real-time monitoring and GLP-compliant data logging for traceable laboratory documentation.



🧠 Model Insight

Model Capacity Temperature Range Lighting System Dimensions (W×D×H) cm
LB-175-N-II 175 L 10–55 °C 2 LED boards, 0–20000 LX 65×73×175
LB-275-N-II 275 L 10–55 °C 2 LED boards, 0–20000 LX 77×74×171
LB-475-N-II 475 L 10–55 °C 2 LED boards, 0–20000 LX 88×87×195
LB-800-N-II 800 L 10–55 °C 2 LED boards, 0–20000 LX 110×93×227
LB-1075-N-II 1075 L 10–55 °C 2 LED boards, 0–20000 LX 101×90×234



🧪 Testing Applications

Designed for agricultural, biological, and environmental testing, the LB-N-II Series is ideal for plant growth, seed germination, tissue culture, microbial incubation, and photobiological experiments in universities, research institutes, and quality control laboratories.



Compliance & Quality Assurance

All AELAB LB-N-II chambers comply with ISO, CE, and GLP standards. Each unit undergoes calibration verification and quality testing to ensure accuracy, reliability, and environmental stability across long-term continuous operations.

Specifications :

Model LB-175-N-II LB-275-N-II LB-375-N-II LB-475-N-II LB-800-N-II LB-800D-N-II (Double Door) LB-1075-N-II LB-1075D-N-II (Double Door)
Chamber Volume 175L 275L 375L 475L 800L 800L 1075L 1075L
Temperature Range With light: 10～55 °C Without light: 0～55 °C
Temperature Stability ±1 °C
Display Resolution 0.1 °C
Temperature Uniformity ±1 °C
Light Intensity 2 LED boards; White light: 0–20000 LX stepless dimming; Other lights: 0–5000 LX stepless dimming
Power Supply AC 220 V, 50 Hz
Operating Temperature +0～40 °C
Chamber Size (W×D×H) cm 45×42×93 58×51×94 59×55×116 70×55×127 96×61×137 126×50×127.5 95×70×160 126×67×127.5
Exterior Size (W×D×H) cm 65×73×175 77×74×171 78×87×191.5 88×87×199.5 110×93×227 141.8×78.1×195 101×90×234 141.8×95.1×195
Number of Grids (Std/Max) 3/16 3/16 3/21 3/22 3/22 6/18 (2 grids in one tier) 3/22 6/18 (2 grids in one tier)
Model LB-175-N-II LB-275-N-II LB-375-N-II LB-475-N-II LB-800-N-II LB-800D-N-II (Double Door) LB-1075-N-II LB-1075D-N-II (Double Door)
Chamber Volume 175L 275L 375L 475L 800L 800L 1075L 1075L
Temperature Range With light: 10～55 °C Without light: 0～55 °C
Temperature Stability ±1 °C
Display Resolution 0.1 °C
Temperature Uniformity ±1 °C
Light Intensity 2 LED boards; White light: 0–20000 LX stepless dimming; Other lights: 0–5000 LX stepless dimming
Power Supply AC 220 V, 50 Hz
Operating Temperature +0～40 °C
Chamber Size (W×D×H) cm 45×42×93 58×51×94 59×55×116 70×55×127 96×61×137 126×50×127.5 95×70×160 126×67×127.5
Exterior Size (W×D×H) cm 65×73×175 77×74×171 78×87×191.5 88×87×199.5 110×93×227 141.8×78.1×195 101×90×234 141.8×95.1×195
Number of Grids (Std/Max) 3/16 3/16 3/21 3/22 3/22 6/18 (2 grids in one tier) 3/22 6/18 (2 grids in one tier)

Download catalog for:

Growth Chamber with Vertical Light LB-N-II Series
File Type: .pdfFile Size: 206.48 KB

Frequently Asked Questions

1What is the temperature range of the AELAB LB-N-II Growth Chamber?
The LB-N-II Series operates from 10–55 °C with light, and 0–55 °C without light.
2How is lighting intensity controlled?
The chamber features two LED boards with stepless dimming, adjustable from 0–20000 LX for white light.
3Does the system provide safety protection?
Yes, it includes over-temperature, compressor over-current, and heater overheat protection with audible and visual alarms.
4Can data be recorded or exported?
Yes, a built-in USB port allows recording and data transfer for GLP documentation.
5What are the suitable applications for this chamber?
It is suitable for plant growth, tissue culture, seed germination, and environmental simulation studies.
