AELAB AE-L/LB Series – Cooling & Heating Incubators for Precise Laboratory Temperature Control
Product Image

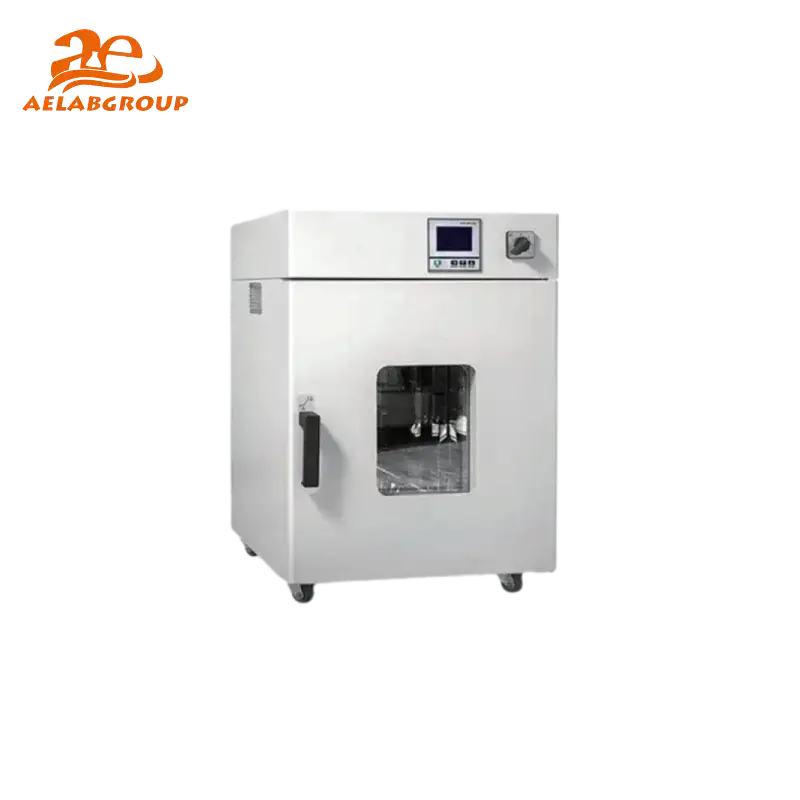

AELAB AE-L/LB Series – Cooling & Heating Incubators for Precise Laboratory Temperature Control

The AELAB AE-L/LB Series provides advanced temperature control solutions for laboratory and industrial environments. Featuring both heating and cooling models, these incubators deliver precise, stable, and programmable operation for biological, chemical, and material testing applications.
Modles : AE-L/LB Series
Instant Quote
whatsapp Whatsapp
Send Email

The AELAB AE-L/LB Series combines advanced cooling and heating incubator technologies for comprehensive laboratory temperature control. Each unit integrates precise microprocessor regulation, Stainless Steel construction, and long-term operational reliability to meet diverse experimental and industrial demands.



⚙️ Design & Construction

The AE-LB Cooling Incubators utilize a brand compressor with automatic hot/cold switching, while the AE-L Heating Incubators adopt a uniform air duct structure for even temperature distribution. Both feature a high-quality Stainless Steel inner chamber, tempered glass observation window, and magnetic sealing design for excellent insulation and visibility.



🔬 Working Principle / Testing Method

These incubators maintain stable internal conditions using microprocessor-controlled temperature regulation with digital LCD display. The cooling units employ R134a refrigerant with forced convection fans for uniform airflow, whereas heating models use precision air circulation for stable performance from RT+5°C up to 80°C.



💡 Key Advantages

  • High-precision microprocessor control with digital LCD display
  • Uniform air duct design ensuring ±1 °C temperature uniformity
  • Stainless Steel interior for durability and hygiene
  • RS485 port for computer and printer connection
  • Optional built-in printer and UV sterilizer for GLP compliance
  • Adjustable shelves for flexible sample arrangement
  • Over-temperature and power leakage protection systems



🔗 Connectivity & Integration

Both AE-L and AE-LB models include RS485 communication ports for PC connectivity, printer output, and data export. Multi-segment programmable control and internal lighting options enhance usability in research environments.



🧠 Model Insight

Series Temperature Range Volume Range Power Range
AE-LB Cooling Incubators 0~60 °C 80–400 L 180–550 W
AE-L Heating Incubators RT+5°C~80°C / 66°C 18–270 L 150–1200 W



🧪 Testing Applications

The AELAB AE-L/LB Series is ideal for biological cultivation, BOD and microbial research, material aging tests, pharmaceutical development, food quality inspection, and environmental simulation experiments requiring precise thermal control.



Compliance & Quality Assurance

All AELAB AE-L/LB Series incubators comply with ISO, CE, and GLP laboratory standards. Each unit is performance-calibrated and undergoes strict factory quality inspection to ensure reliability, safety, and reproducibility.

Specifications :

Cooling Incubator Technical Specifications

Model Chamber Volume Temperature Range Display Resolution Temperature Stability Temperature Uniformity Timing Range Power Rating (W) Refrigerant Power Supply Continuous Operation Chamber Size (W×D×H) cm Exterior Size (W×D×H) cm Shelf (Std./Max)
AE-LB80 80 L 0~60 °C 0.1 °C Heating: ±0.5 °C; Cooling: ±1 °C ±1 °C 1~9999 min 180 R134a 220±10%V 50Hz Long continuous operation 40×37×55 54×57×107 2/8
AE-LB150 150 L 0~60 °C 0.1 °C Heating: ±0.5 °C; Cooling: ±1 °C ±1 °C 1~9999 min 250 R134a 220±10%V 50Hz Long continuous operation 45×42×85 59×62×137 3/13
AE-LB200 200 L 0~60 °C 0.1 °C Heating: ±0.5 °C; Cooling: ±1 °C ±1 °C 1~9999 min 300 R134a 220±10%V 50Hz Long continuous operation 45×45×100 59×64×152 3/15
AE-LB250 250 L 0~60 °C 0.1 °C Heating: ±0.5 °C; Cooling: ±1 °C ±1 °C 1~9999 min 350 R134a 220±10%V 50Hz Long continuous operation 48×49×107 62×68×159 3/16
AE-LB300 300 L 0~60 °C 0.1 °C Heating: ±0.5 °C; Cooling: ±1 °C ±1 °C 1~9999 min 400 R134a 220±10%V 50Hz Long continuous operation 52×50×117 66×69×169 3/18
AE-LB400 400 L 0~60 °C 0.1 °C Heating: ±0.5 °C; Cooling: ±1 °C ±1 °C 1~9999 min 550 R134a 220±10%V 50Hz Long continuous operation 58×54×127 72×74×179 3/20



Heating Incubator Technical Specifications

Model Volume (L) Temperature Range Chamber Size (W×D×H) cm Exterior Size (W×D×H) cm Shelf (Std./Max) Power Rating (W)
AE-L360 (Desktop) 43 RT+5°C~80°C 35×35×35 64×50×60 2/4 450
AE-L420 (Desktop) 81 RT+5°C~80°C 45×40×45 73×53×69 2/6 700
AE-L500 (Desktop) 138 RT+5°C~80°C 50×50×55 78×69×80 2/7 850
AE-L600 (Desktop) 252 RT+5°C~80°C 60×60×70 88×73×95 2/10 1200
AE-L9020F (For home) 18 RT+5°C~66°C 23×32×25 38×42.5×45 2/3 200
AE-L9022 (Vertical) 20 RT+5°C~66°C 25×25×32 38×35×62 2/4 150
AE-L9032 (Vertical) 30 RT+5°C~66°C 30×30×35 43×40×65 2/5 180
AE-L9052 (Vertical) 50 RT+5°C~66°C 35×35×41 48×46×73 2/6 250
AE-L9082 (Vertical) 80 RT+5°C~66°C 40×40×50 53×50×83 2/7 300
AE-L9162 (Vertical) 160 RT+5°C~66°C 50×50×65 63×60×97 3/10 450
AE-L9272 (Vertical) 270 RT+5°C~66°C 60×60×75 73×70×107 3/11 600

Cooling Incubator Technical Specifications

Model Chamber Volume Temperature Range Display Resolution Temperature Stability Temperature Uniformity Timing Range Power Rating (W) Refrigerant Power Supply Continuous Operation Chamber Size (W×D×H) cm Exterior Size (W×D×H) cm Shelf (Std./Max)
AE-LB80 80 L 0~60 °C 0.1 °C Heating: ±0.5 °C; Cooling: ±1 °C ±1 °C 1~9999 min 180 R134a 220±10%V 50Hz Long continuous operation 40×37×55 54×57×107 2/8
AE-LB150 150 L 0~60 °C 0.1 °C Heating: ±0.5 °C; Cooling: ±1 °C ±1 °C 1~9999 min 250 R134a 220±10%V 50Hz Long continuous operation 45×42×85 59×62×137 3/13
AE-LB200 200 L 0~60 °C 0.1 °C Heating: ±0.5 °C; Cooling: ±1 °C ±1 °C 1~9999 min 300 R134a 220±10%V 50Hz Long continuous operation 45×45×100 59×64×152 3/15
AE-LB250 250 L 0~60 °C 0.1 °C Heating: ±0.5 °C; Cooling: ±1 °C ±1 °C 1~9999 min 350 R134a 220±10%V 50Hz Long continuous operation 48×49×107 62×68×159 3/16
AE-LB300 300 L 0~60 °C 0.1 °C Heating: ±0.5 °C; Cooling: ±1 °C ±1 °C 1~9999 min 400 R134a 220±10%V 50Hz Long continuous operation 52×50×117 66×69×169 3/18
AE-LB400 400 L 0~60 °C 0.1 °C Heating: ±0.5 °C; Cooling: ±1 °C ±1 °C 1~9999 min 550 R134a 220±10%V 50Hz Long continuous operation 58×54×127 72×74×179 3/20



Heating Incubator Technical Specifications

Model Volume (L) Temperature Range Chamber Size (W×D×H) cm Exterior Size (W×D×H) cm Shelf (Std./Max) Power Rating (W)
AE-L360 (Desktop) 43 RT+5°C~80°C 35×35×35 64×50×60 2/4 450
AE-L420 (Desktop) 81 RT+5°C~80°C 45×40×45 73×53×69 2/6 700
AE-L500 (Desktop) 138 RT+5°C~80°C 50×50×55 78×69×80 2/7 850
AE-L600 (Desktop) 252 RT+5°C~80°C 60×60×70 88×73×95 2/10 1200
AE-L9020F (For home) 18 RT+5°C~66°C 23×32×25 38×42.5×45 2/3 200
AE-L9022 (Vertical) 20 RT+5°C~66°C 25×25×32 38×35×62 2/4 150
AE-L9032 (Vertical) 30 RT+5°C~66°C 30×30×35 43×40×65 2/5 180
AE-L9052 (Vertical) 50 RT+5°C~66°C 35×35×41 48×46×73 2/6 250
AE-L9082 (Vertical) 80 RT+5°C~66°C 40×40×50 53×50×83 2/7 300
AE-L9162 (Vertical) 160 RT+5°C~66°C 50×50×65 63×60×97 3/10 450
AE-L9272 (Vertical) 270 RT+5°C~66°C 60×60×75 73×70×107 3/11 600

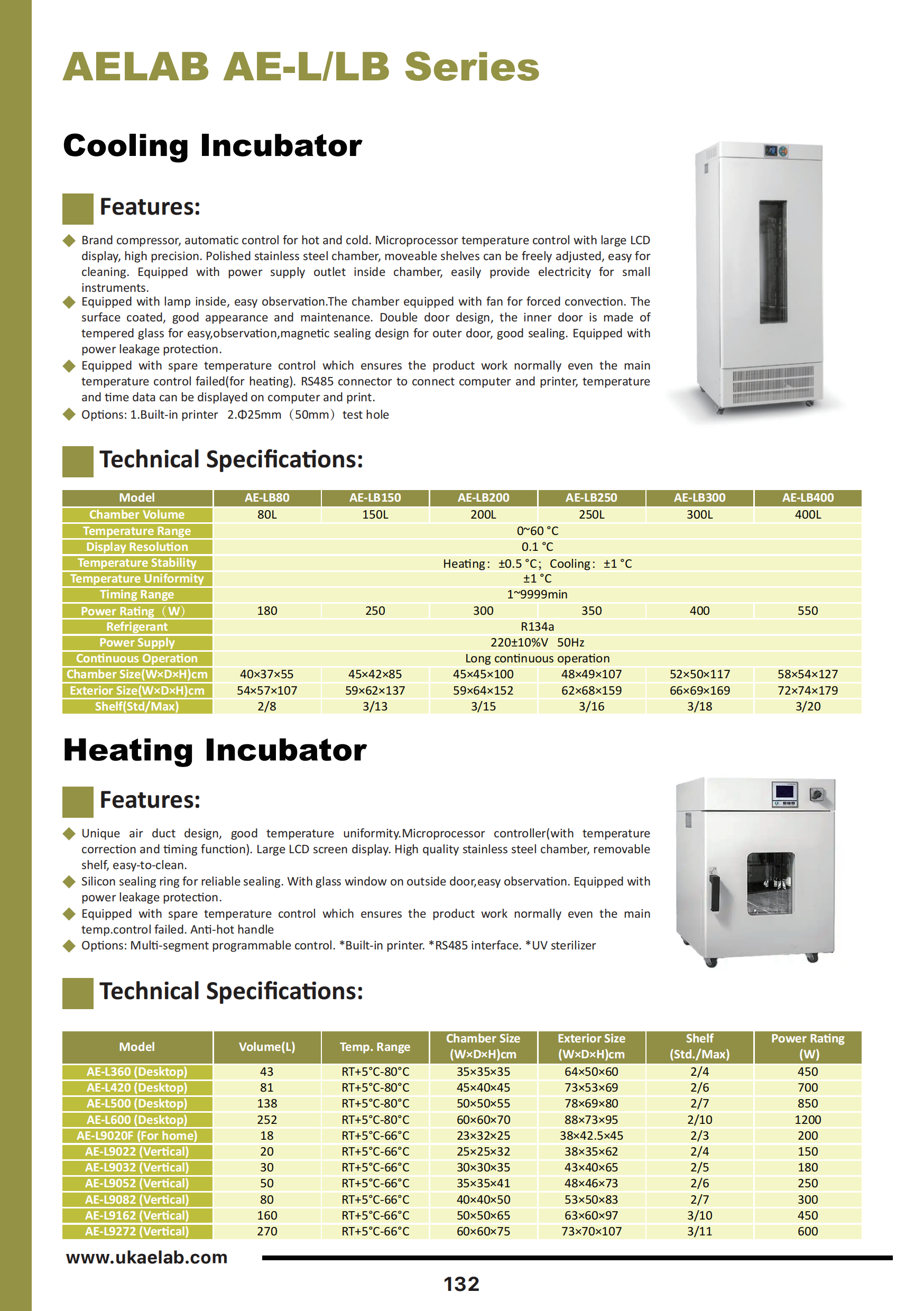

Download catalog for:

Heating Incubator AE-L360 Series
File Type: .pngFile Size: 704.14 KB

Frequently Asked Questions

1Are these incubators suitable for continuous operation?
Yes, both AE-L and AE-LB models support long-term continuous use with stable performance.
2What is the chamber material?
All units feature high-quality Stainless Steel inner chambers with easy-to-clean surfaces.
3Can these incubators connect to external devices?
Yes, they include RS485 interfaces for data connection, monitoring, and printing.
4What optional accessories are available?
Built-in printer, UV sterilizer, and multi-segment programmable control are available options.
