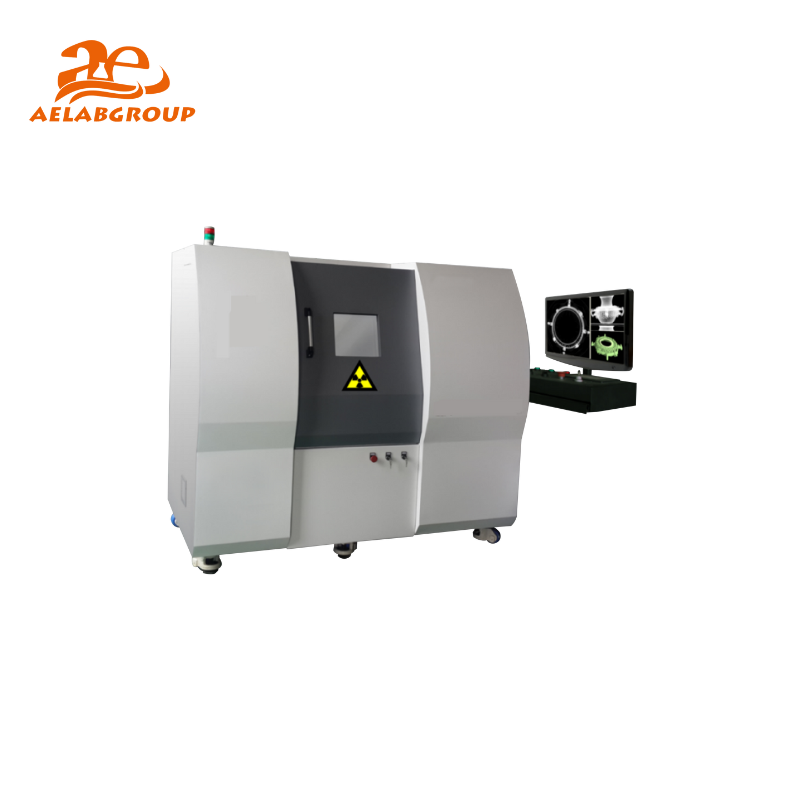

AELAB High Power Industrial CT for Advanced Non-Destructive Testing

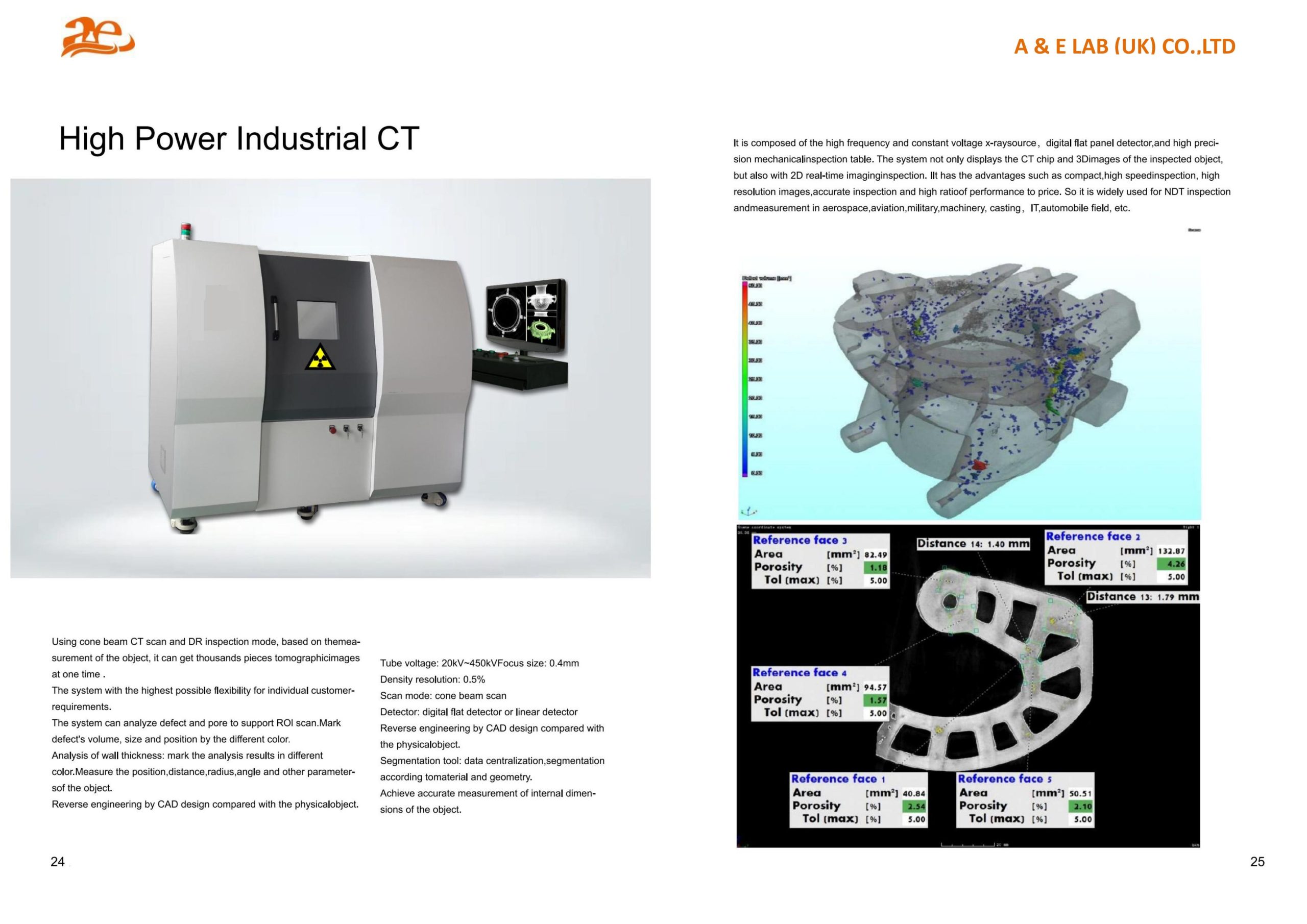

The High-Power Industrial CT system features a high-frequency constant voltage X-ray source, a digital flat panel detector, and a precision mechanical inspection table. It supports CT slice and 3D imaging, alongside 2D real-time imaging, providing comprehensive inspection capabilities. With advantages like compact design, high-speed performance, high-resolution imaging, and accurate analysis, the system ensures excellent value for its performance. It is widely used for non-destructive testing (NDT) and measurement across industries such as aerospace, aviation, military, machinery, casting, IT, and automotive.

Feature:

• Using cone beam CT scan and DR inspection mode, based on themea- surement of the object, it can get thousands pieces tomographicimages at one time.
• The system with the highest possible flexibility for individual customer- requirements.
• The system can analyze defect and pore to support ROI scan Mark defect’s volume, size and position by the different color.
• Analysis of wall thickness: mark the analysis results in different color.Measure the position,distance,radius,angle and other parame- ter of the object.
• Reverse engineering by CAD design compared with the physicalobject.
• Tube voltage: 20kV – 450kV/Focus size: 0.4mm
• Density resolution: 0.5%
• Scan mode: cone beam scan
• Detector: digital flat detector or linear detector
• Reverse engineering by CAD design compared with the physicalobject.
• Segmentation tool: data centralization,segmentation according material and geometry.
• Achieve accurate measurement of internal dimen- sions of the object.

🔬 How It Works?

The system uses a cone beam CT scan combined with digital radiography (DR) inspection to acquire thousands of tomographic images in one scan session. The X-ray source emits a high-frequency, constant voltage beam, which passes through the object and is captured by the digital detector. This data is reconstructed into high-resolution 3D images or 2D real-time views, allowing users to analyze internal structures non-destructively.

💡 Advantages

• Compact design with high-speed imaging performance

• Precise defect and pore detection with color-coded volume, size, and position marking

• Accurate measurement of internal dimensions, wall thickness, and geometric parameters

• Supports reverse engineering by comparing scanned data with CAD designs

• Flexible system configuration tailored to customer needs

• Enhanced data processing with material and geometry-based segmentation

🔍 Recommended Models by Use Case

• Educational Labs: Basic 2D & 3D imaging for teaching and training

• Research Centers: High-resolution imaging for detailed material studies

• QC Departments: Rapid defect detection in manufacturing lines

• Aerospace & Aviation: Precise NDT for critical components

• Automotive & Machinery: Comprehensive inspection of parts and assemblies

🧪 Ideal For

• Aerospace industry non-destructive testing

• Automotive component inspection

• Military-grade quality control

• Machinery and casting defect analysis

• IT hardware testing and measurement
