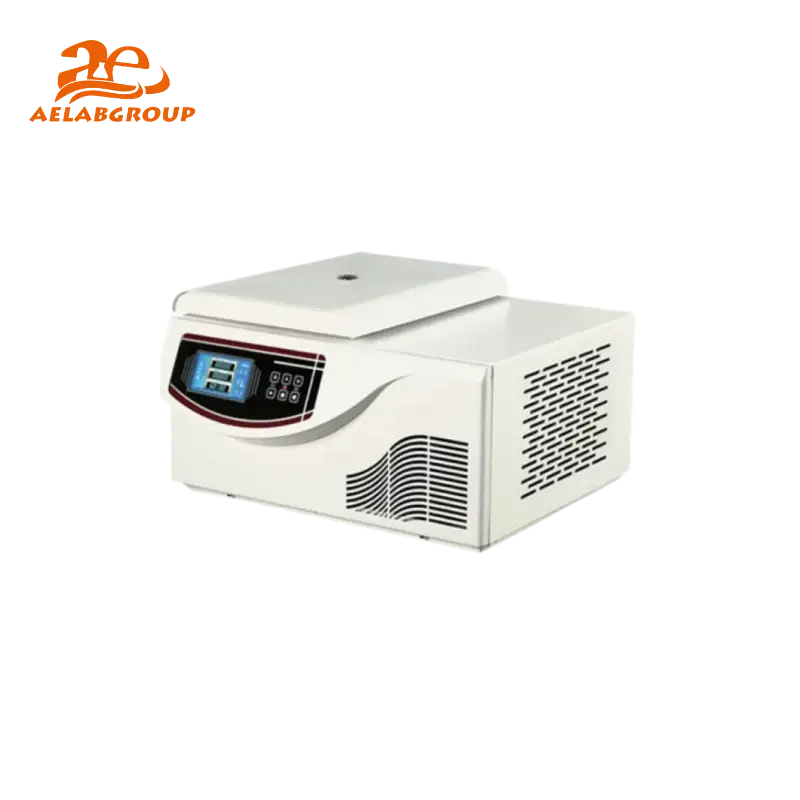

AELAB TGL-18M/MC/iTGL-18MC Benchtop High Speed Refrigerated Centrifuge for PCR and Clinical Sample Separation

The AELAB TGL-18MC benchtop high speed refrigerated centrifuge is designed for routine laboratory centrifugation in bio-technology, PCR, life science, and clinical laboratories. The AELAB TGL-18MC supports routine sample analysis for medical, hospital, and institutional laboratory workflows with a wide choice of rotor heads and adapters for tube-based separation.

The AELAB TGL-18MC refrigerated centrifuge integrates microprocessor-driven speed and temperature regulation with safety interlock protection and programmable workflows. With stored program capability and stable refrigeration from -20 °C to +40 °C, the AELAB TGL-18MC supports consistent separation of microtubes and higher-volume clinical tubes in diagnostic, analytical, and industrial testing environments.

⚙️ Design & Construction

The AELAB TGL-18MC benchtop high speed refrigerated centrifuge uses a microprocessor-controlled drive system and a Brand CFC-free compressor refrigeration system to stabilize temperature-dependent centrifugation. The instrument integrates a compact benchtop housing with engineered airflow and refrigeration architecture to maintain controlled operating conditions from -20 °C to +40 °C. The AELAB TGL-18MC is available with an LCD control interface, while the iTGL-18MC variant provides a Touch LCD for enhanced workflow readability.

🔬 Working Principle / Testing Method

The AELAB TGL-18MC refrigerated centrifuge separates suspended particles and liquids by generating centrifugal force up to 24,500 ×g at a maximum speed of 18,500 r/min ±10 r/min. Samples are loaded into compatible rotor heads and balanced tubes. During operation, controlled acceleration creates sedimentation based on mass, density, and particle size, while refrigeration stabilizes sample integrity for temperature-sensitive biological and clinical specimens. The AELAB TGL-18MC regulates time and temperature parameters via microprocessor logic for reproducible centrifugation and standardized separation results.

💡 Key Advantages

• The AELAB TGL-18MC refrigerated centrifuge uses a microprocessor-controlled drive system for stable high-speed centrifugation
• CFC-free compressor refrigeration system regulates the working chamber across -20 °C to +40 °C for temperature-sensitive workflows
• Safety interlock system prevents opening the centrifuge lid during operation to support secure sample processing
• Emergency lid lock provides controlled access in case of unexpected power interruption
• Stored program capability supports 10 programs and recalls the last used program for repeatable protocols
• Rotor identification function supports safer operation and reduces configuration errors during high-speed running (TGL-18MC variant)
• Electronic control supports both lid opening and lid closing for consistent mechanical operation (iTGL-18MC variant)

🔗 Connectivity & Integration

• USB communication interface enables connectivity to a PC (iTGL-18MC) for extended data handling and workflow documentation.
• On-screen time and date display supports traceable operation; energy-saving mode can be enabled for long standby periods.
• Digital / LCD / Touch LCD interface options allow standardized parameter input for regulated laboratory environments.

🧠 Model Insight

🧪 Testing Applications

The AELAB TGL-18MC benchtop high speed refrigerated centrifuge supports routine analytical and diagnostic centrifugation across life science and industrial laboratories. Typical applications include PCR sample preparation, serum and plasma separation, clinical chemistry workflows, microbiology sample clarification, cell pelleting, nucleic acid extraction preparation, and reagent separation for research and diagnostic laboratories. With multiple rotor options ranging from 12 × 1.5/2 ml microtube processing to 6 × 100 ml higher-volume separation, the AELAB TGL-18MC enables flexible sample handling in pharmaceutical, food, biochemical, environmental, and institutional quality-control testing.

Compliance & Quality Assurance

The AELAB TGL-18MC refrigerated centrifuge is engineered for regulated laboratory operation with microprocessor-controlled parameter input, safety interlock protection, and traceable time display. The controlled refrigeration range of -20 °C to +40 °C supports sample integrity for temperature-sensitive protocols. Routine calibration and verification should be performed according to laboratory quality systems to ensure repeatable speed and temperature performance across diagnostic, industrial, and research centrifugation workflows.

Conclusion: The AELAB TGL-18MC benchtop high speed refrigerated centrifuge delivers 18,500 r/min and 24,500 ×g separation power with regulated -20 °C to +40 °C temperature control, supporting PCR, clinical, and analytical sample processing with multi-rotor adaptability and laboratory-grade operational safety.

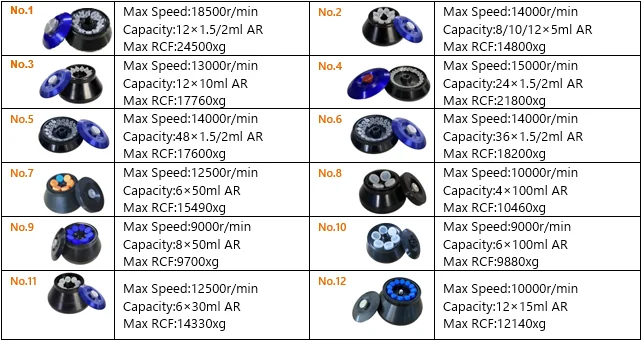

Rotor:
