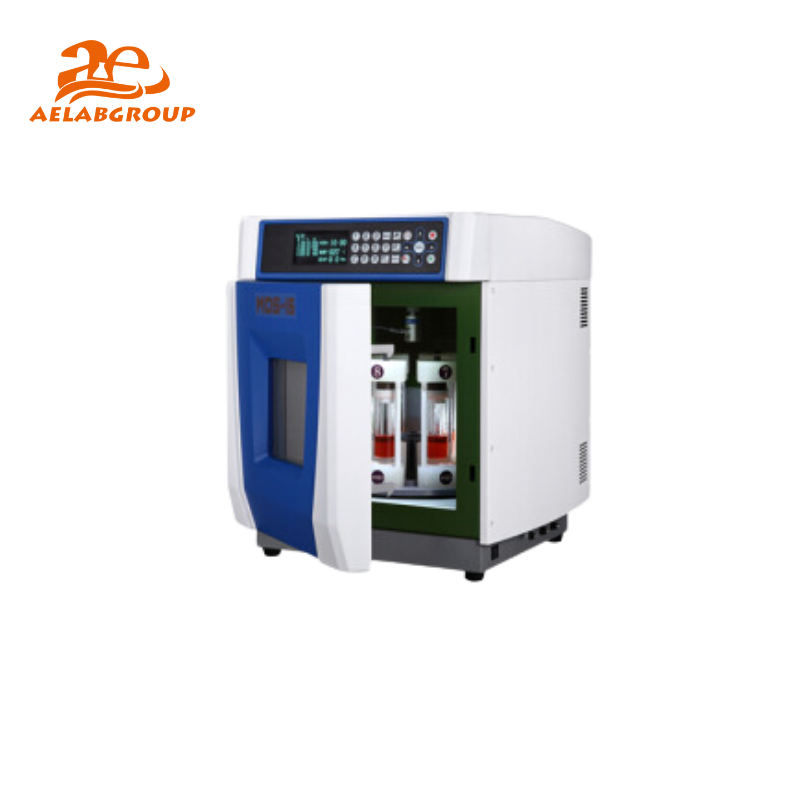

High-throughput Microwave Sample Preparation Workstation MDS-15

The MDS-15 Microwave System, refined over 20 years, is a high-throughput, multi-functional sample preparation workstation with a lifetime warranty on core components. It offers versatility for both routine and complex samples with various vessel options. Safety is prioritized with aerospace composite fiber vessel sleeves and a patented Safety Bolt. Efficiently designed, it delivers rapid digestion and quick 20-minute cooldown using advanced technology for durability, safety, and ease of use.
Modles : MDS-15
whatsapp Whatsapp

Features:

  • The quartz digestion vessel enables the digestion process to be visible.
  • Initiative wireless remote video monitoring system, together with quartz vessels, makes the reaction be seen clearly at a glance. Pictures and videos can be taken during the entire process;
  • 500 ml ultra-large digestion vessel meets the special requirements for the digestion of samples of up to 10 grams.
  • The drying rotor aides in the drying process of samples,
  • It is patented safety bolt design eliminates the need for explosion-proof membranes and other costly consumables.
  • The Aerospace composite fiber outer vessel ensures the highest level of vessel security.
  • Large 65L stainless steal chamber and dual magnetron structure, is designed for high energy and uniform microwave field.
  • With over 20 years of experience in the industry it is known asa innovation leader with numerous patents.



Our Latest microwave system (The MDS-15)is the culmination of over 20 years of refinement. The MDS-15 is a high-throughput, multi-functional closed microwave sample preparation workstation with the latest technology and a lifetime warranty on the core component. Versatility: The MDS-15 is a versatile microwave which can handle the routine work, and more complicated and demanding samples in your prep rack with a wide variety of vessels to choose from. Safety is priority number one! At our factory we put safety at the top priority, which is why we have painstakingly designed every aspect of our microwave system with the highest level of security measures, such as the use of aerospace composite fiber vessel sleeves, and our patented Safety Bolt. Efficient by design: MDS-15 applies high-energy uniform microwave field, it delivers a rapid digestion with a quick 20 minute cool down time. it has incorporated the latest technology of material design while engineering a very safe, durable and easy to use microwave.

Specifications :

Name of reaction vessel 16 GP-100 ultrahigh strength frame closed vessel 8 QZ-100 high temperature/pressure visual

 closed quartz vessel

8 LV-500 ultra large capacity digestion

vessel carousel

Model of reaction vessel GP-100 QZ-100 LV-500
Processing capacity in one batch 16 8 8
Inner vessel material TFM Pure Quartz TFM
Explosion-proof

outer vessel material

Aerospace composite fiber Xtra Fiber N/A Aerospace composite fiber Xtra Fiber
Frame structure of

digestion rotor

Independent frame structure of each digestion vessel Independent frame structure of each digestion vessel Integrated high strength alloy rotary carousel
Reaction vessel volume 100ml 100ml 500ml
Maximum design pressure 10MPa(1500psi) 10MPa(1500psi) 4MPa (600psi)
Maximum temperature 300℃ 310℃ 230℃
Maximum sample amount 0.5-1.0g 0.5-1.0g 5-10g
Resistance to HF Yes No Yes
Magnetic stirring function No No Yes
Typical application Food, soil, metal, alloy, cosmetic, plant, etc. Fat, oil, plastic, coal, etc. Biological samples, environmental samples, etc.
Power 220-240 VAC 50/60Hz 16A
Microwave source 2450MHz, dual magnetron design
Installed power 3600W
Maximum output power 2200W, non-pulse continuous automatic variable frequency control
Cavity 65L stainless steal industrial grade professional chamber,

multi-layer chemical resistant PFA coating

Door design 6 layer steel structure and popup cushioning explosion-proof sliding chamber door (Auto-Pop) design, electronic and mechanical dual-control door lock
Video monitoring system (Optional) Wireless video monitoring system, mobile phones and tablets can realize the

observation and monitoring of the reaction

Turntable design Load 16 GP-100 closed digestion vessels at same time
Pressure measurement

and control system

Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi),

accuracy ± 0.01MPa

Temperature measurement

and control system

High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1℃; IR temperature sensor as optional,

temperature range :0-300°C, accuracy ±1℃.

Outer vessel material Explosion-proof outer vessel made of aerospace composite fiber. high temperature and pressure resistance reach 600℃and 66 Mpa(10000psi).
Inner vessel material Modified TFM material
Chamber exhaust system High-power anticorrosion axial fan, 20 minutes cooling time (from 200°C to 60°C)
Working environment 0-40 °C, 15-80%RH
Whole physical size/weight 550*670*700 mm, 70 KG
Name of reaction vessel 16 GP-100 ultrahigh strength frame closed vessel 8 QZ-100 high temperature/pressure visual

 closed quartz vessel

8 LV-500 ultra large capacity digestion

vessel carousel

Model of reaction vessel GP-100 QZ-100 LV-500
Processing capacity in one batch 16 8 8
Inner vessel material TFM Pure Quartz TFM
Explosion-proof

outer vessel material

Aerospace composite fiber Xtra Fiber N/A Aerospace composite fiber Xtra Fiber
Frame structure of

digestion rotor

Independent frame structure of each digestion vessel Independent frame structure of each digestion vessel Integrated high strength alloy rotary carousel
Reaction vessel volume 100ml 100ml 500ml
Maximum design pressure 10MPa(1500psi) 10MPa(1500psi) 4MPa (600psi)
Maximum temperature 300℃ 310℃ 230℃
Maximum sample amount 0.5-1.0g 0.5-1.0g 5-10g
Resistance to HF Yes No Yes
Magnetic stirring function No No Yes
Typical application Food, soil, metal, alloy, cosmetic, plant, etc. Fat, oil, plastic, coal, etc. Biological samples, environmental samples, etc.
Power 220-240 VAC 50/60Hz 16A
Microwave source 2450MHz, dual magnetron design
Installed power 3600W
Maximum output power 2200W, non-pulse continuous automatic variable frequency control
Cavity 65L stainless steal industrial grade professional chamber,

multi-layer chemical resistant PFA coating

Door design 6 layer steel structure and popup cushioning explosion-proof sliding chamber door (Auto-Pop) design, electronic and mechanical dual-control door lock
Video monitoring system (Optional) Wireless video monitoring system, mobile phones and tablets can realize the

observation and monitoring of the reaction

Turntable design Load 16 GP-100 closed digestion vessels at same time
Pressure measurement

and control system

Piezoelectric crystal pressure sensor, pressure control range :0-10MPa (1500 psi),

accuracy ± 0.01MPa

Temperature measurement

and control system

High-precision platinum resistor temperature sensor, temperature range :0-300°C, accuracy ±1℃; IR temperature sensor as optional,

temperature range :0-300°C, accuracy ±1℃.

Outer vessel material Explosion-proof outer vessel made of aerospace composite fiber. high temperature and pressure resistance reach 600℃and 66 Mpa(10000psi).
Inner vessel material Modified TFM material
Chamber exhaust system High-power anticorrosion axial fan, 20 minutes cooling time (from 200°C to 60°C)
Working environment 0-40 °C, 15-80%RH
Whole physical size/weight 550*670*700 mm, 70 KG
