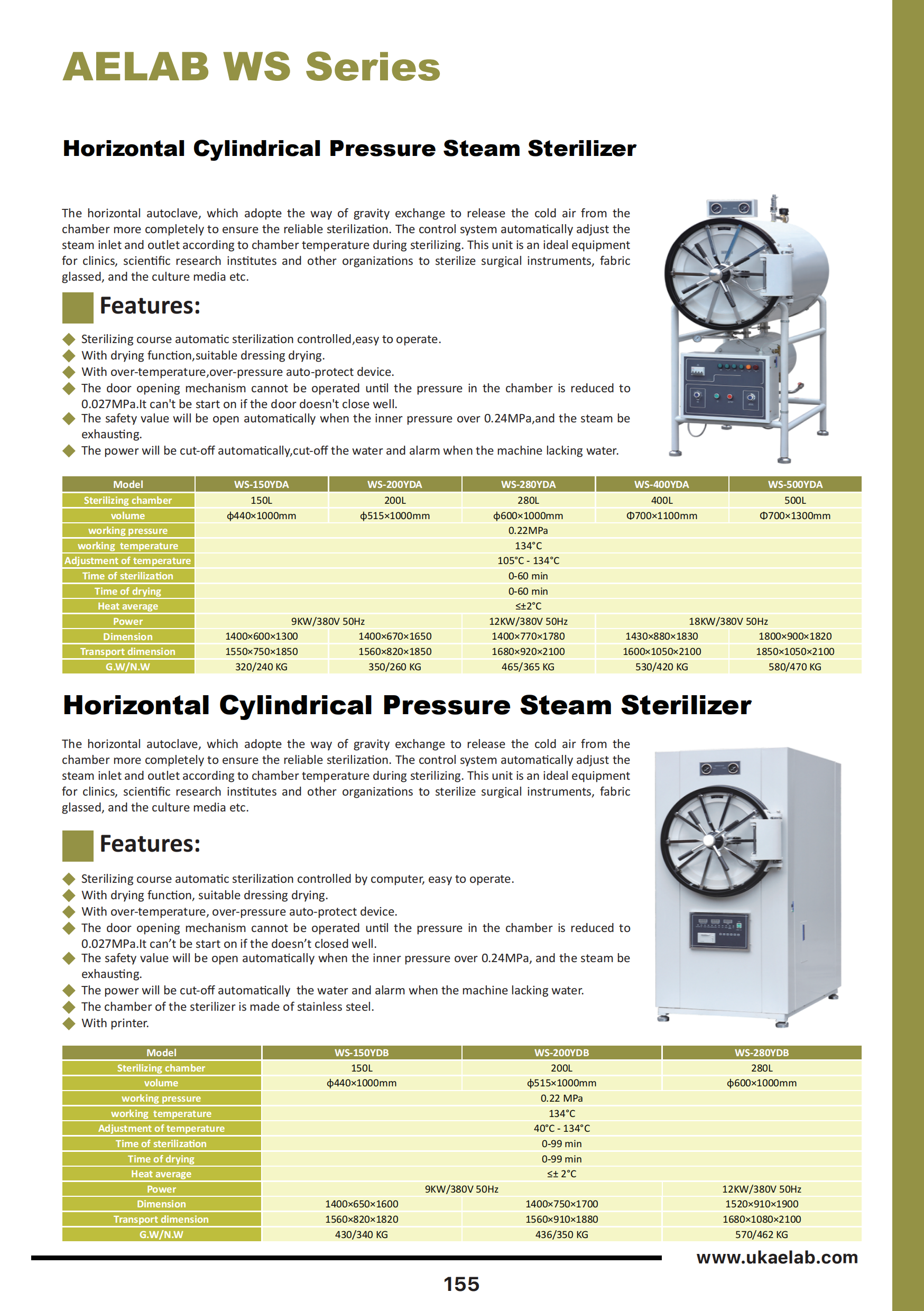

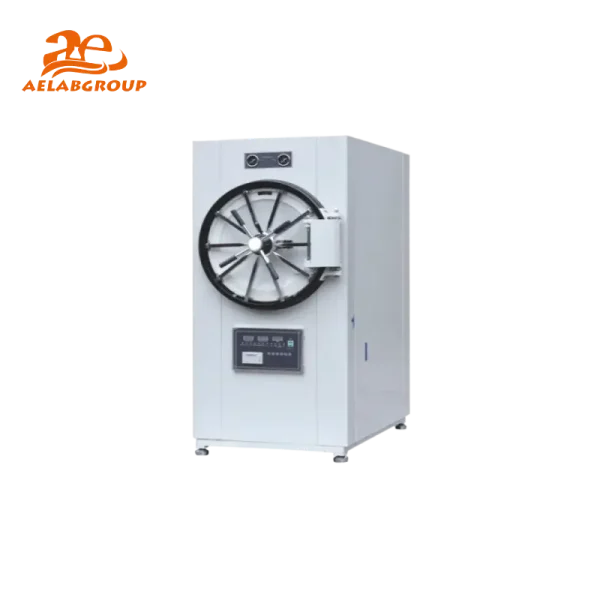

The horizontal autoclave, which adopte the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabric glassed, and the culture media etc.
Specifications :
| Model | WS-150YDB | WS-200YDB | WS-280YDB |
| Sterilizing chamber | 150L | 200L | 280L |
| volume | φ440×1000mm | φ515×1000mm | φ600×1000mm |
| working pressure | 0.22 MPa | ||
| working temperature | 134℃ | ||
| Adjustment of temperature | 40℃ - 134℃ | ||
| Time of sterilization | 0-99 min | ||
| Time of drying | 0-99 min | ||
| Heat average | ≤± 2℃ | ||
| Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz |
| Dimension | 1400×650×1600 | 1400×750×1700 | 1520×910×1900 |
| Transport dimension | 1560×820×1820 | 1560×910×1880 | 1680×1080×2100 |
| G.W/N.W | 430/340 KG | 436/350 KG | 570/462 KG |
| Model | WS-150YDB | WS-200YDB | WS-280YDB |
| Sterilizing chamber | 150L | 200L | 280L |
| volume | φ440×1000mm | φ515×1000mm | φ600×1000mm |
| working pressure | 0.22 MPa | ||
| working temperature | 134℃ | ||
| Adjustment of temperature | 40℃ - 134℃ | ||
| Time of sterilization | 0-99 min | ||
| Time of drying | 0-99 min | ||
| Heat average | ≤± 2℃ | ||
| Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz |
| Dimension | 1400×650×1600 | 1400×750×1700 | 1520×910×1900 |
| Transport dimension | 1560×820×1820 | 1560×910×1880 | 1680×1080×2100 |
| G.W/N.W | 430/340 KG | 436/350 KG | 570/462 KG |
