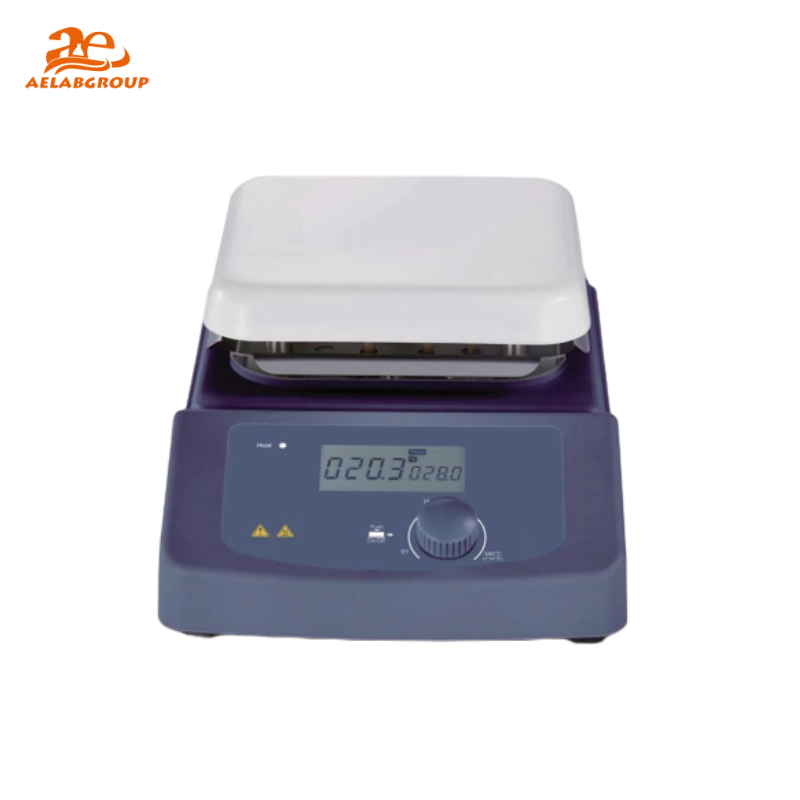

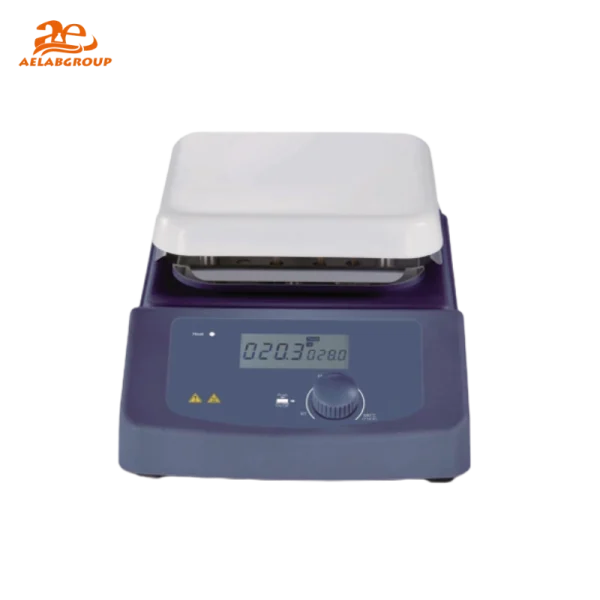

The AELAB HP380-Pro Digital Hotplate is a high-performance heating solution designed for precise temperature control in modern laboratories. Equipped with an LCD display, advanced ceramic-coated aluminum plate, and external temperature probe support, it delivers consistent, reliable heating for research, analytical, and industrial applications.
The HP380-Pro uses an electric resistance heating system beneath a ceramic-coated aluminum work plate. The heating element distributes heat uniformly across the surface, while the LCD controller continuously monitors temperature. When connected, the PT1000 sensor enables direct sample temperature feedback, ensuring highly accurate heating control.
The AELAB HP380-Pro features a durable Aluminum work plate with Ceramic Coating, ensuring rapid heat transfer, corrosion resistance, and uniform surface heating. The LCD interface displays temperature and timing parameters clearly. Its single heating position supports vessels, beakers, and general laboratory containers. The frame integrates IP21 protection for safe daily operation and long-term reliability.
The instrument regulates temperature using an electric resistance heating element calibrated for stable output. The controller adjusts heating in 1 °C increments across the full 380 °C range. When the PT1000 external probe is connected, the system measures sample temperature directly and adjusts output to maintain precise thermal stability. Real-time LCD feedback enables continuous monitoring of temperature accuracy within ±1 °C.
The HP380-Pro supports PT1000 sensor input for external closed-loop temperature measurement. LCD output provides stable readable data for GLP documentation. Compatible with standard laboratory heating accessories and compliant with routine quality-assurance protocols.
| Model | Specifications |
|---|---|
| HP380-Pro | 140×140mm plate, 380 °C range, 510W power, PT1000 sensor support, 2.2 kg |
The AELAB HP380-Pro is suitable for chemical sample preparation, academic laboratory heating, reagent warming, general laboratory heating reactions, solution preparation, QA/QC workflows, and research-grade thermal control tasks.
The HP380-Pro adheres to AELAB manufacturing standards, GLP-oriented operational precision, and CE-aligned electrical safety requirements. All units undergo calibration and quality inspection to ensure stable, reproducible thermal performance.
Specifications :
| Specifications | HP380-Pro |
|---|---|
| Work plate Dimension (W x D) | 140×140mm (6 inch) |
| Work plate material | Aluminum cover with ceramic coating |
| Heating position | 1 |
| Heating temperature range | Room temp.–380°C increment 1°C |
| Over heat Protection | 420°C |
| Temperature,time display | LCD |
| Temperature display accuracy | ±1°C |
| External temperature sensor | PT1000 (±0.2°C) |
| Protection class | IP21 |
| Power | 510W |
| Heating output | 500W |
| Voltage, Frequency | 100–120/200–240V, 50/60Hz |
| Dimension (W×D×H) | 180×320×108mm |
| Weight | 2.2kg |
| Permissible ambient temperature and humidity | 5–40°C, 80%RH |
| Specifications | HP380-Pro |
|---|---|
| Work plate Dimension (W x D) | 140×140mm (6 inch) |
| Work plate material | Aluminum cover with ceramic coating |
| Heating position | 1 |
| Heating temperature range | Room temp.–380°C increment 1°C |
| Over heat Protection | 420°C |
| Temperature,time display | LCD |
| Temperature display accuracy | ±1°C |
| External temperature sensor | PT1000 (±0.2°C) |
| Protection class | IP21 |
| Power | 510W |
| Heating output | 500W |
| Voltage, Frequency | 100–120/200–240V, 50/60Hz |
| Dimension (W×D×H) | 180×320×108mm |
| Weight | 2.2kg |
| Permissible ambient temperature and humidity | 5–40°C, 80%RH |
