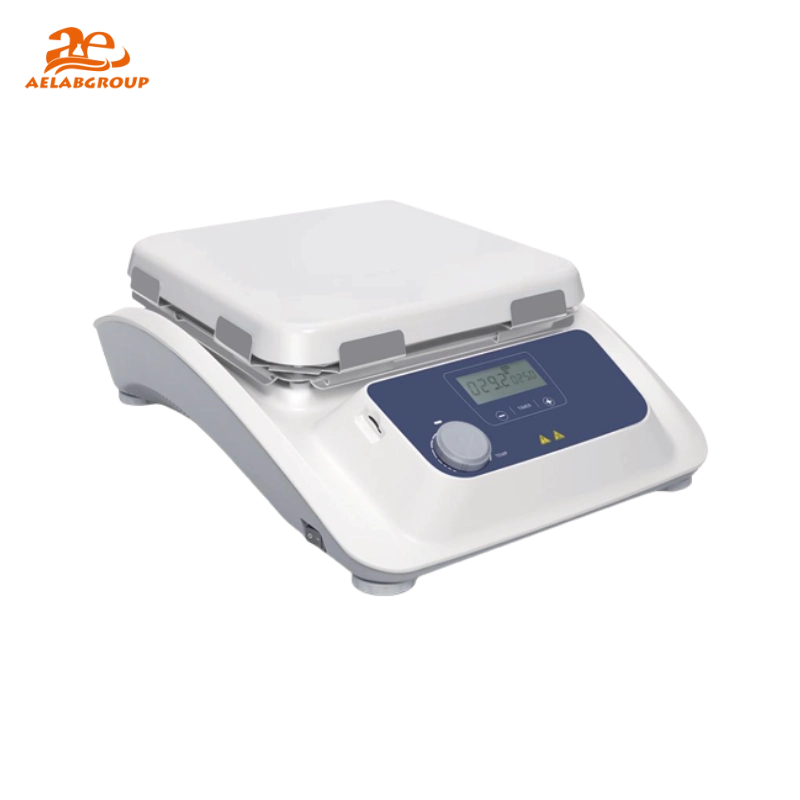

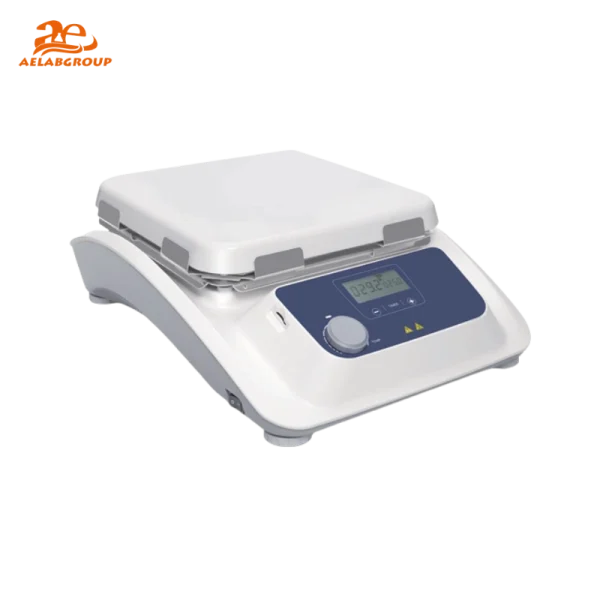

AELAB HP500-Pro LCD Digital Hotplate | High-Performance 500 °C Laboratory Heating Platform

The AELAB HP500-Pro LCD Digital Hotplate is a premium laboratory heating platform engineered for precise temperature control up to 500 °C. Featuring a 10-inch chemical-resistant glass ceramic plate, advanced LCD temperature display, and optional external PT1000 sensor, this hotplate delivers exceptional reliability for research, industrial, and QC applications.

The AELAB HP500-Pro uses an efficient heating module beneath a high-conductivity glass ceramic plate. As current flows through the heating element, heat transfers evenly across the work surface. Users can set temperature and time digitally through the LCD interface. When connected, the PT1000 sensor regulates temperature directly at the sample, ensuring superior accuracy for sensitive applications.

⚙️ Design & Construction

The HP500-Pro incorporates a durable Glass Ceramic work plate engineered for uniform heat transfer and chemical resistance. Its LCD interface displays temperature and time clearly, while an integrated safety system includes a 540 °C protection limit and a “HOT” indicator that activates above 50 °C. The compact 328×424×138 mm body, IP20 protection class, and 1700 W power input make the instrument suitable for continuous laboratory operation.

🔬 Working Principle / Testing Method

The heating module distributes thermal energy uniformly across the ceramic plate. Users program the heating range (Room Temp.–500 °C) in 1 °C increments. The onboard controller maintains ±1 °C accuracy, and the PT1000 sensor enables closed-loop feedback directly from the sample vessel. Real-time temperature and timer values are displayed on the LCD for precise process monitoring.

💡 Key Advantages

• High-temperature laboratory heating up to 500 °C with ±1 °C accuracy
• Chemical-resistant glass ceramic plate suitable for harsh reagents
• Optional PT1000 sensor supports direct sample temperature control
• Built-in timing functionality for controlled heating cycles
• Wide voltage compatibility (100–120/200–240 V, 50/60 Hz)
• Rapid heat transfer and stable uniformity across 10-inch surface
• Enhanced safety with 540 °C limit and automatic hot-surface warning

🔗 Connectivity & Integration

The HP500-Pro includes digital configuration through an integrated LCD controller and supports an external PT1000 temperature probe for real-time feedback. The instrument features onboard runtime recording through the SD card connector (catalog text), enabling GLP-compatible traceability for laboratory documentation.

🧠 Model Insight

🧪 Testing Applications

The AELAB HP500-Pro is suitable for chemical and biochemical sample preparation, digestion and evaporation procedures, heating of flasks and beakers, method development in R&D labs, QC/QA workflows, and industrial heating applications across pharmaceutical, food, environmental, and materials laboratories.

Compliance & Quality Assurance

The HP500-Pro is manufactured following ISO, CE, and GLP-oriented production protocols. All units undergo calibration verification and functional quality control to ensure reliable, traceable performance in regulated laboratory environments.
