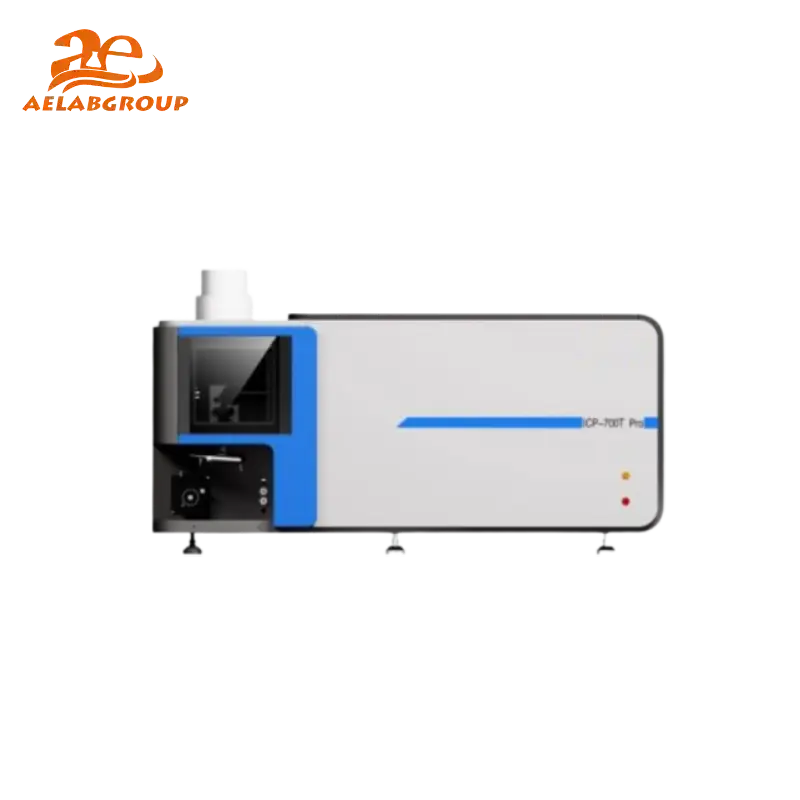

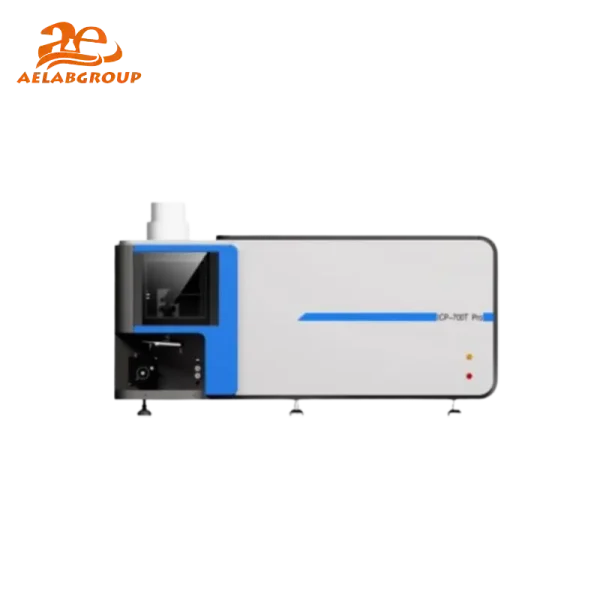

The AELAB ICP700T Pro is a high-performance inductively coupled plasma emission spectrometer designed for precise elemental analysis of over 70 elements. With advanced RF power supply technology, real-time result display, and intelligent automation, it delivers fast, reliable testing across diverse industries.
As a professional laboratory analytical instrument, the lCP700T Pro inductively coupled plasma Emission Spectrometer is a new upgraded product. It has many test elements,can measure more than 70 elements at most, has fast test speed, low detection limit and many other characteristics.it not only optimizes and upgrades the efficiency of solid-state Rf power supply and the monitoring function of instrument status from the perspective of instrument configuration, but also integrates audit tracking The functions of flame video display and direct display of sample results during sample tracing make the instrument more stable and the software operation more convenient for customers to use, providing a better experience and meeting the testing needs of different customers. It can be applied to multiple industries with demand for element detection. The operation of complete machine automation and intelligence is simple and easy to learn.
Features :
🔬 How It Works?
The ICP700T Pro uses an inductively coupled plasma source to excite atoms in a sample, causing them to emit light at characteristic wavelengths. The instrument’s high-resolution ion etched grating separates this light, allowing precise quantification of over 70 elements. Advanced RF power stabilizes the plasma, while the patented atomization chamber ensures efficient solvent removal. Automated ignition and real-time result displays streamline operation and data tracking.
💡 Advantages
High throughput: Rapid analysis of more than 70 elements with low detection limits
Advanced RF power supply enhances plasma stability and measurement precision
User-friendly software with audit tracking and flame video display for quality assurance
Automated ignition and quick tooling replacement reduce downtime
Patented atomization chamber boosts sensitivity by improving solvent removal
Broad wavelength range and flexible spectral lines for diverse testing needs
Durable, energy-efficient design for long-term lab use
🔍 Recommended Models by Use Case
Educational Labs: ICP700T Pro Basic configuration for robust multi-element training
Research Centers: Fully equipped ICP700T Pro with advanced optics and flexible injection systems
Quality Control Departments: Models with rapid testing and real-time audit tracking for compliance
Environmental Testing Labs: Specialized injection systems for organic and hydrofluoric acid resistance
🧪 Ideal For
Food safety and contamination analysis
Chemical and pharmaceutical quality control
Environmental monitoring and water analysis
Metallurgy and mining element testing
Agricultural product inspection
Petrochemical and material science research
Specifications :
| Parameter Name | Details |
| Input Power Supply | Voltage AC 220V, Current 20A |
| Total Argon Consumption | Less than 14 L/min |
| Grating | Ion Etched Holographic Grating, with a Scratch Area of (80×110)mm |
| Resolution (Mn257.610nm) | ≤0.005nm (4320 Grating); ≤0.008nm (3600 Line Grating); ≤0.015nm (2400 Line Grating) |
| Wavelength Range | 190 - 460nm (4320 Grating); 190 - 500nm (3600 Line Grating); 190 - 800nm (2400 Grating) |
| Atomizer | High Precision and Efficient Concentric Nebulizer, 2ml/min, Can Be Equipped with Various Injection Systems Such as High Salt Resistance, Hydrofluoric Acid Resistance, and Organic Resistance |
| Atomization Chamber | The Patented Extended Double Tube Atomization Chamber Has a Better Solvent Removal Effect |
| Optical Path Type | Czerny Turner Type Optical Path with a Focal Length of 1000mm |
| Replacement of Tooling | Quickly Replace the Injection System, Using Patented Technology for Torch Tube Tooling and Torch Tube Installation Platform |
| Power Characteristics | Equipped with Reverse Power Protection for RF Power Supply (Patented Technology) |
| Precision | 2ppm Mixed Multi-element Solution, RSD≤1.0% |
| Stability | 2 Hours RSD≤2.0% |
| Detection Limit | Meets the A-level Requirements of the National Standard |
| Flexibility of Spectral Lines | Test Spectral Lines Can Be Added Arbitrarily According to Usage Requirements |
| Ignition Method | Fully Automatic One-button Ignition, Automatic Matching, Stable and Convenient |
| Atomizer Features | Using a Concentric Nebulizer with a Patented Technology Chamber, with a Strength of 1ppmMn>1000000cps |
| RF Power Supply | Independently Developed All Solid-state RF Power Supply, Output Power 500 - 1600W, Continuously Adjustable, Adjustable Accuracy of 1W, Power Stability<0.01% |
| Power Efficiency | Greater than 65%, Operating Frequency 27.12MHz |
| Frequency and Coupling Efficiency | Frequency 27.12MHz, Coupling Efficiency Greater than 80%, Frequency Stability<0.01% |
| Parameter Name | Details |
| Input Power Supply | Voltage AC 220V, Current 20A |
| Total Argon Consumption | Less than 14 L/min |
| Grating | Ion Etched Holographic Grating, with a Scratch Area of (80×110)mm |
| Resolution (Mn257.610nm) | ≤0.005nm (4320 Grating); ≤0.008nm (3600 Line Grating); ≤0.015nm (2400 Line Grating) |
| Wavelength Range | 190 - 460nm (4320 Grating); 190 - 500nm (3600 Line Grating); 190 - 800nm (2400 Grating) |
| Atomizer | High Precision and Efficient Concentric Nebulizer, 2ml/min, Can Be Equipped with Various Injection Systems Such as High Salt Resistance, Hydrofluoric Acid Resistance, and Organic Resistance |
| Atomization Chamber | The Patented Extended Double Tube Atomization Chamber Has a Better Solvent Removal Effect |
| Optical Path Type | Czerny Turner Type Optical Path with a Focal Length of 1000mm |
| Replacement of Tooling | Quickly Replace the Injection System, Using Patented Technology for Torch Tube Tooling and Torch Tube Installation Platform |
| Power Characteristics | Equipped with Reverse Power Protection for RF Power Supply (Patented Technology) |
| Precision | 2ppm Mixed Multi-element Solution, RSD≤1.0% |
| Stability | 2 Hours RSD≤2.0% |
| Detection Limit | Meets the A-level Requirements of the National Standard |
| Flexibility of Spectral Lines | Test Spectral Lines Can Be Added Arbitrarily According to Usage Requirements |
| Ignition Method | Fully Automatic One-button Ignition, Automatic Matching, Stable and Convenient |
| Atomizer Features | Using a Concentric Nebulizer with a Patented Technology Chamber, with a Strength of 1ppmMn>1000000cps |
| RF Power Supply | Independently Developed All Solid-state RF Power Supply, Output Power 500 - 1600W, Continuously Adjustable, Adjustable Accuracy of 1W, Power Stability<0.01% |
| Power Efficiency | Greater than 65%, Operating Frequency 27.12MHz |
| Frequency and Coupling Efficiency | Frequency 27.12MHz, Coupling Efficiency Greater than 80%, Frequency Stability<0.01% |
