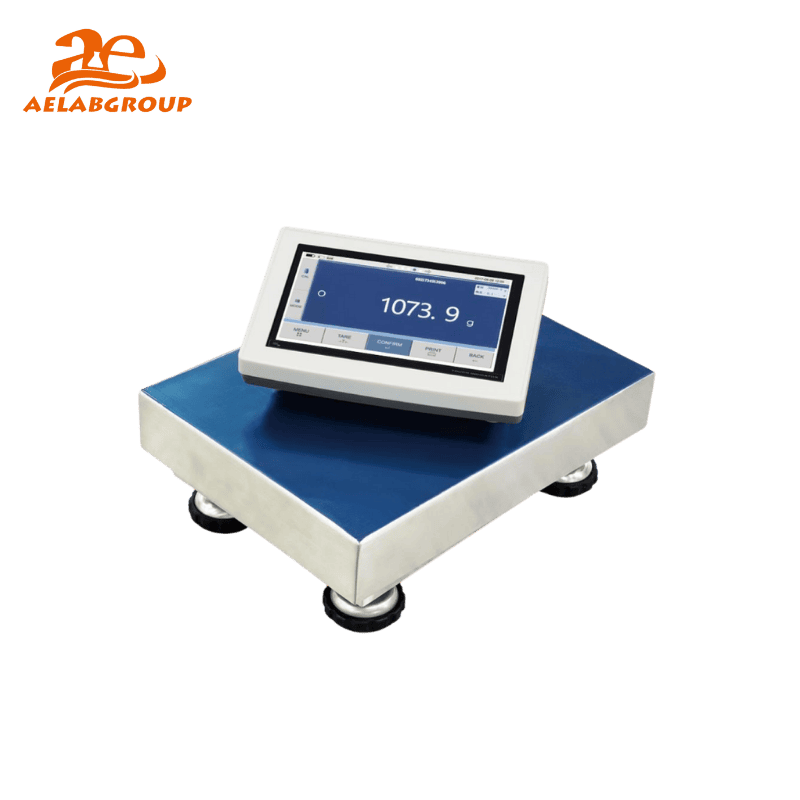

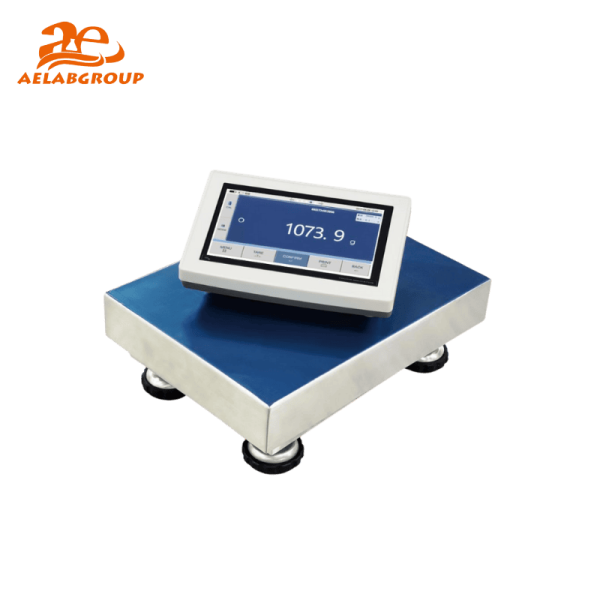

The AELAB Industrial Scale XY-IN Series is a high-performance weighing solution designed for laboratories, manufacturing facilities, and quality control environments. Its 7-inch touch display provides intuitive operation and real-time data visualization, ensuring accuracy and efficiency in every weighing task.
The XY-IN Series combines advanced load-cell technology with digital signal processing to deliver rapid, stable, and repeatable results. Its large Stainless Steel pan accommodates diverse sample types, while the color touch interface simplifies navigation and data entry. Both AC and DC operation enable flexible use across field and laboratory environments.
The XY-IN Series features modular design with multiple capacity and readability configurations. Models XY-INA and XY-INB cater to different load ranges—from analytical-grade 0.1 g readability to heavy-duty 150 kg capacity—while custom versions are available for specialized industrial applications.
Equipped with advanced firmware, the XY-IN supports automatic calibration, multi-unit conversion (g/ct/oz), and Excel-format output via USB. Optional remote display and external printer expansion enhance system adaptability in production lines or controlled lab networks.
The AELAB XY-IN Series complies with industrial and laboratory weighing standards. Each unit is inspected for calibration accuracy, linearity, and safety compliance. ISO and CE certification documents are available upon request for verified installations.
Specifications :
| Feature | XY-INA | XY-INB | XY-IN (Custom) |
|---|---|---|---|
| Capacity | 10–150 kg | 3–30 kg | Customized |
| Readability | 1 g / 2 g / 5 g / 10 g | 0.1 g / 0.2 g / 0.5 g | Customized |
| Operating Temperature | 5–35 °C | ||
| Repeatability | ±3d | ||
| Linearity | ±3d | ||
| Stabilization Time | ≤3 s | ||
| Sensitivity Drift | ±3d | ||
| Corner Error | ±3d | ||
| Weighing Units | g, oz, ct, and more | ||
| Pan Size | 220×300 mm / 300×400 mm / 400×500 mm | ||
| Display | 7-inch touch screen | ||
| Interface | RS232 / USB | ||
| Output | Excel format via USB | ||
| Calibration | Internal calibration (optional) | ||
| Weighing Modes | Counting, Check Weighing, Percentage, Density | ||
| Function Expansion | External remote display support | ||
| Power Supply | Input: 220 V 50 Hz / 110 V 60 Hz; Output: 9 V | ||
| Battery | 10,000 mAh (18650 Li-ion) | ||
| Printer | Label printing with customizable format and content | ||
| Packing Size | 415 × 165 × 430 mm | ||
| Feature | XY-INA | XY-INB | XY-IN (Custom) |
|---|---|---|---|
| Capacity | 10–150 kg | 3–30 kg | Customized |
| Readability | 1 g / 2 g / 5 g / 10 g | 0.1 g / 0.2 g / 0.5 g | Customized |
| Operating Temperature | 5–35 °C | ||
| Repeatability | ±3d | ||
| Linearity | ±3d | ||
| Stabilization Time | ≤3 s | ||
| Sensitivity Drift | ±3d | ||
| Corner Error | ±3d | ||
| Weighing Units | g, oz, ct, and more | ||
| Pan Size | 220×300 mm / 300×400 mm / 400×500 mm | ||
| Display | 7-inch touch screen | ||
| Interface | RS232 / USB | ||
| Output | Excel format via USB | ||
| Calibration | Internal calibration (optional) | ||
| Weighing Modes | Counting, Check Weighing, Percentage, Density | ||
| Function Expansion | External remote display support | ||
| Power Supply | Input: 220 V 50 Hz / 110 V 60 Hz; Output: 9 V | ||
| Battery | 10,000 mAh (18650 Li-ion) | ||
| Printer | Label printing with customizable format and content | ||
| Packing Size | 415 × 165 × 430 mm | ||
