In water quality testing, distillation is an important pretreatment step. In traditional distillation equipment, the heating, distillation, condensation, and receiving parts are independent, making operation cumbersome. Due to the lack of distillation and end-point control, distillation failure often occurs and affects work efficiency.

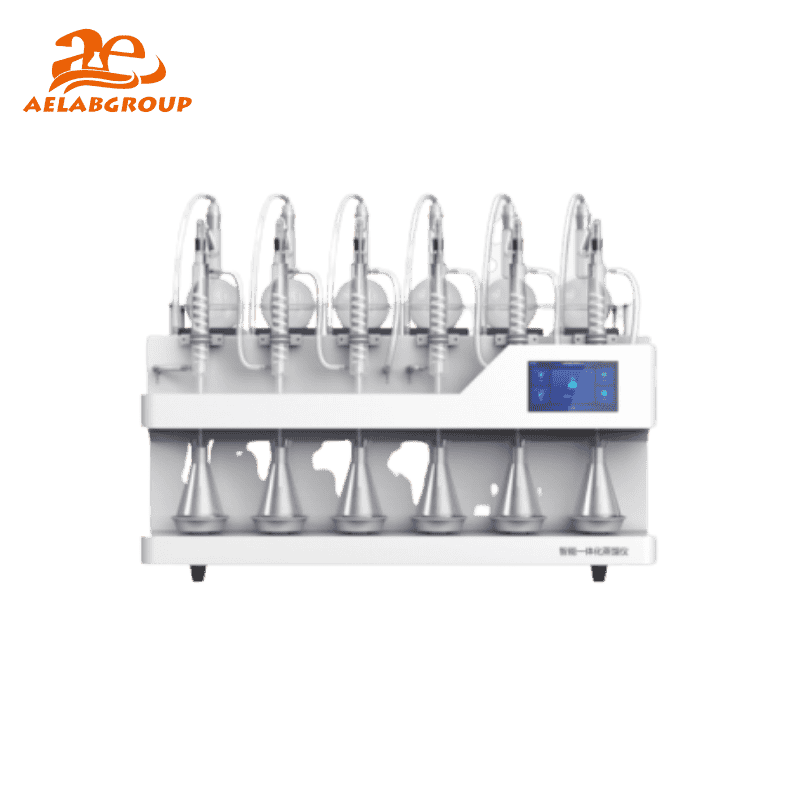

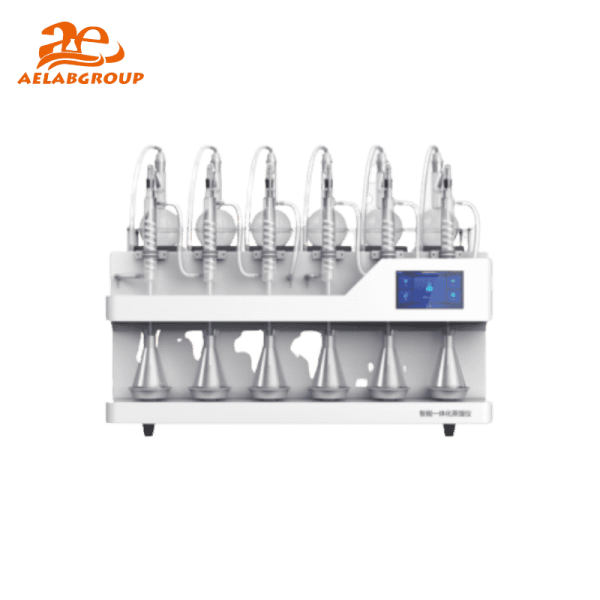

The AELAB R6 Integrated All-Glass Distillation Apparatus adopts intelligent integrated design with precise temperature control, intelligent end-point control, automatic cooling water circulation, and reflux protection. The system delivers simple operation, automatic distillation, energy savings, and stable performance for routine laboratory workflows.
The AELAB R6 features a fully integrated all-glass distillation structure incorporating advanced infrared ceramic radiation heating for uniform, high-efficiency thermal performance. The design eliminates open flames, ensures low power consumption, and provides long service life with strong corrosion resistance. A dedicated external cooling circulating water module supports stable condensation and minimizes thermal interference.
The R6 performs automated water sample distillation using programmable heating (0–400 °C), precise distillation mass settings (0–3000 g), and real-time weighing end-point control. The instrument dynamically displays working status on a 7-inch LCD touchscreen. When the selected distillation mass is reached, the system automatically terminates heating and activates audible alarms. Integrated anti-suckback structures, built-in one-way valves, and customized condensers prevent reflux contamination and ensure analytical integrity.
The R6 utilizes an LCD touch interface enabling fast parameter input, real-time status visualization, and controlled access to distillation modes. Data, timing ranges, and operational parameters can be configured directly on the instrument. The system supports GLP-oriented procedural traceability with stable, repeatable distillation workflows.
| Model | Specifications |
|---|---|
| R6 | 900×350×700 mm; AC220 V 50 Hz; 3000 W; adjustable 0–500 W single-channel heating; 0–600 min & 0–999 min dual timing; 0–3000 g distillation; Room temperature–400 °C control range; 0.1 g accuracy; LCD touchscreen |
The AELAB R6 is widely used for pretreatment of water and environmental samples including volatile phenol, cyanide, ammonia nitrogen, sulfide, and other analytes. It is suitable for environmental monitoring laboratories, water supply and drainage analysis, chemical plants, disease control centers, and wastewater testing facilities.
The R6 is manufactured under strict AELAB quality control protocols, following ISO, CE, and GLP requirements for laboratory sample preparation equipment. Each unit undergoes calibration and operational validation to ensure consistent analytical performance.
Specifications :
| INSTRUMENT PARAMETERS | AELAB R6 |
|---|---|
| Dimension | 900×350×700 mm (external cooling circulating water) |
| Operating voltage | AC220 V 50 Hz |
| Power | 3000 W |
| Power | Single channel 0–500 W adjustable, power can be changed in real time |
| Time control | 0–600 min |
| End point control | weighing, timing |
| Temperature control | Room temperature–400 °C |
| Time control | 0–999 min |
| Distillation setting | 0–3000 g |
| Measurement accuracy | 0.1 g |
| Control mode | LCD touch screen |
| INSTRUMENT PARAMETERS | AELAB R6 |
|---|---|
| Dimension | 900×350×700 mm (external cooling circulating water) |
| Operating voltage | AC220 V 50 Hz |
| Power | 3000 W |
| Power | Single channel 0–500 W adjustable, power can be changed in real time |
| Time control | 0–600 min |
| End point control | weighing, timing |
| Temperature control | Room temperature–400 °C |
| Time control | 0–999 min |
| Distillation setting | 0–3000 g |
| Measurement accuracy | 0.1 g |
| Control mode | LCD touch screen |
