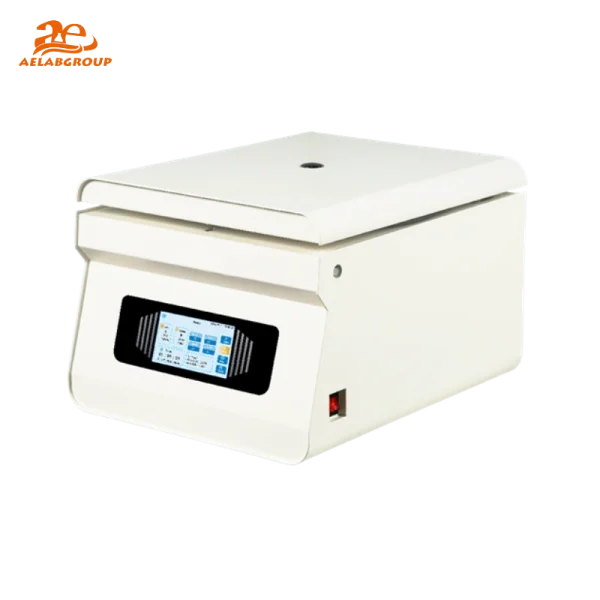

The AELAB iTGD-20S benchtop high and low speed centrifuge performs stable centrifugal separation for biological, clinical, and research laboratories. Designed for routine and advanced sample processing, the AELAB iTGD-20S supports both angle and swing rotors to accommodate a wide range of tube volumes and laboratory protocols.
The AELAB iTGD-20S centrifuge integrates microprocessor control with a touch LCD interface, enabling accurate speed regulation, programmable operation, and enhanced user safety. This model is suitable for medical, hospital, institutional, and life science laboratories requiring flexible centrifugation capability.
The AELAB iTGD-20S centrifuge features a compact benchtop enclosure designed for space-efficient laboratory installation. The unit incorporates a safety interlock lid mechanism, emergency lid lock release, and automatic rotor identification to prevent overspeed operation and ensure mechanical protection during centrifugation.
The AELAB iTGD-20S benchtop centrifuge generates centrifugal force by rotating samples at controlled speeds up to 20000 r/min. Microprocessor regulation ensures precise acceleration, deceleration, and speed stability, allowing effective separation of biological components based on density differences.
The AELAB iTGD-20S centrifuge features an integrated touch LCD control system with internal program storage and on-screen display of operating parameters, date, and time. The system supports rapid recall of previous centrifugation programs for routine laboratory workflows.
The AELAB iTGD-20S benchtop centrifuge is used for PCR sample preparation, clinical diagnostics, biological research, biochemical analysis, and routine laboratory sample separation in medical, hospital, and institutional environments.
The AELAB iTGD-20S centrifuge is manufactured under controlled quality systems and incorporates multiple safety protection mechanisms. Design features support reliable laboratory operation and compliance with standard laboratory safety and quality assurance practices.
Specifications :
| Model | iTGD-20S |
| Display | Touch LCD |
| Max Speed | 20000 r/min |
| Max RCF | 31800 ×g |
| Speed Accuracy | ±10 r/min |
| Timer Range | 0–99 min 59 s |
| Rotor Configuration | |
| No.1 Angle Rotor | 12 × 0.5 ml, 20000 r/min, 31800 ×g |
| No.2 Angle Rotor | 12 × 1.5 / 2 ml, 18000 r/min, 27800 ×g |
| No.3 Angle Rotor | 8 × 5 ml, 14000 r/min, 14800 ×g |
| No.4 Angle Rotor | 24 × 1.5 / 2 ml, 14000 r/min, 17600 ×g |
| No.5 Angle Rotor | 12 × 10 / 15 ml, 5000 r/min, 3500 ×g |
| No.6 Swing Rotor | 16 × 10 / 15 ml, 4000 r/min, 2810 ×g |
| No.7 Swing Rotor | 24 × 10 ml, 4000 r/min, 2810 ×g |
| No.8 Swing Rotor | 4 × 50 ml, 4000 r/min, 2810 ×g |
| No.9 Swing Rotor | 4 × 100 / 150 ml, 4000 r/min, 2810 ×g |
| Noise | ≤60 dB(A) |
| Power Supply | AC 220 V / 110 V, 50 Hz, 5 A |
| Dimensions (L × W × H) | 470 × 395 × 320 mm |
| Weight | 29 kg |
| Model | iTGD-20S |
| Display | Touch LCD |
| Max Speed | 20000 r/min |
| Max RCF | 31800 ×g |
| Speed Accuracy | ±10 r/min |
| Timer Range | 0–99 min 59 s |
| Rotor Configuration | |
| No.1 Angle Rotor | 12 × 0.5 ml, 20000 r/min, 31800 ×g |
| No.2 Angle Rotor | 12 × 1.5 / 2 ml, 18000 r/min, 27800 ×g |
| No.3 Angle Rotor | 8 × 5 ml, 14000 r/min, 14800 ×g |
| No.4 Angle Rotor | 24 × 1.5 / 2 ml, 14000 r/min, 17600 ×g |
| No.5 Angle Rotor | 12 × 10 / 15 ml, 5000 r/min, 3500 ×g |
| No.6 Swing Rotor | 16 × 10 / 15 ml, 4000 r/min, 2810 ×g |
| No.7 Swing Rotor | 24 × 10 ml, 4000 r/min, 2810 ×g |
| No.8 Swing Rotor | 4 × 50 ml, 4000 r/min, 2810 ×g |
| No.9 Swing Rotor | 4 × 100 / 150 ml, 4000 r/min, 2810 ×g |
| Noise | ≤60 dB(A) |
| Power Supply | AC 220 V / 110 V, 50 Hz, 5 A |
| Dimensions (L × W × H) | 470 × 395 × 320 mm |
| Weight | 29 kg |
