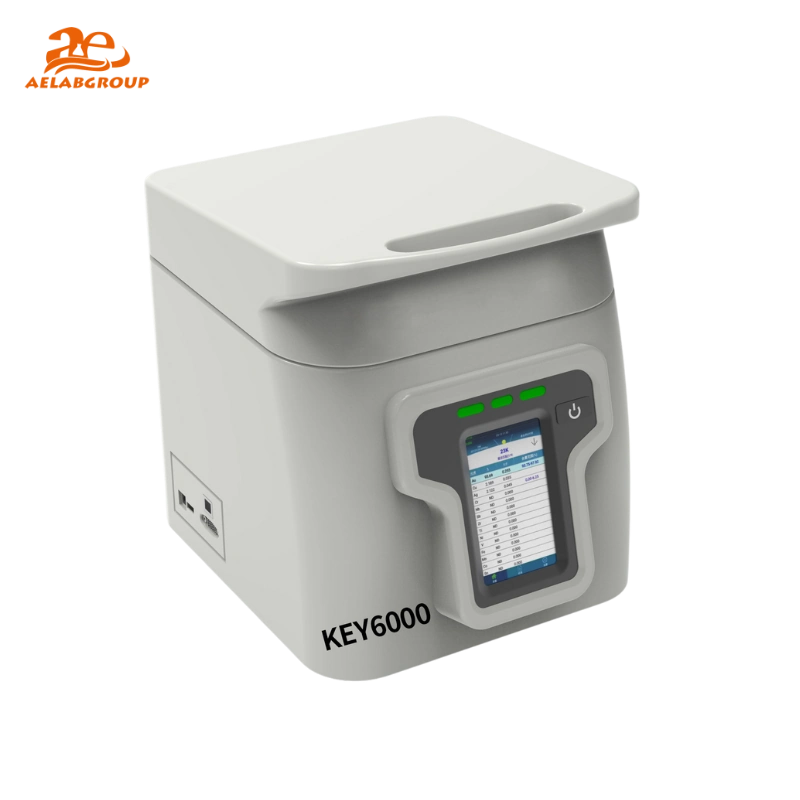

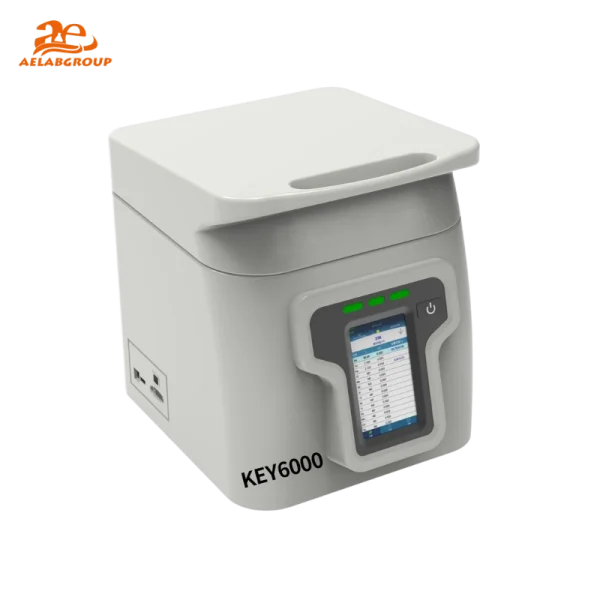

The AELAB KEY6000 Mobile X-Fluorescence Spectrum Analyzer is engineered for rapid elemental composition analysis in laboratory, industrial, and field environments. The instrument performs non-destructive XRF analysis across a wide concentration range, supporting accurate material identification and quality control.
Designed for mobile testing applications, the AELAB KEY6000 Spectrum Analyzer combines compact construction with high analytical performance, enabling on-site testing of solids, powders, and liquids with stable quantitative results.
The AELAB KEY6000 Mobile X-Fluorescence Spectrum Analyzer features a compact instrument housing optimized for portability and stability. The analyzer integrates a high-voltage power supply up to 50 kV and a Si-Pin detector, ensuring consistent signal acquisition and long-term operational reliability in mobile environments.
The AELAB KEY6000 operates using X-fluorescence spectroscopy, where emitted characteristic X-rays from a sample are detected and processed through a DMCP multichannel analyzer. The system measures elemental signatures from sodium to uranium and quantifies elemental concentration using integrated qualitative and quantitative analysis software.
The AELAB KEY6000 Mobile X-fluorescence Spectrum Analyzer integrates qualitative and quantitative analysis software for data processing and reporting. Software-driven operation supports consistent analytical workflows for laboratory and industrial testing.
The AELAB KEY6000 Mobile X-Fluorescence Spectrum Analyzer is used for elemental analysis in precious metals testing, material identification, industrial quality control, environmental screening, and laboratory research requiring rapid, on-site elemental quantification.
The AELAB KEY6000 is manufactured following ISO-oriented quality control procedures. The instrument supports stable analytical performance for regulated laboratory and industrial environments when operated within specified environmental conditions.
Specifications :
| Instrument Type | X-Fluorescence Spectrum Analyzer |
| Analysis Range | 1 ppm to 99.99% |
| Sample Form | Solid, Powder, Liquid |
| High Voltage Power Supply | 0 ~ 50 kV |
| Light Control Current | 0 ~ 100 μA |
| Detector Type | Si-Pin |
| Resolution | 180 eV |
| Multichannel Analyzer | DMCP |
| Test Time | 3 ~ 30 s |
| Measuring Element | 82 elements from Sodium (Na) to Uranium (U); up to 26 elements simultaneously (precious metals industry only) |
| Analysis Software | qualitative and quantitative analysis software |
| Shape Size (mm) | 278 × 338 × 278 |
| Total Weight | 5.9 kg (with battery) |
| Ambient Temperature | -5 °C to 45 °C |
| Relative Humidity | < 90% |
| Instrument Type | X-Fluorescence Spectrum Analyzer |
| Analysis Range | 1 ppm to 99.99% |
| Sample Form | Solid, Powder, Liquid |
| High Voltage Power Supply | 0 ~ 50 kV |
| Light Control Current | 0 ~ 100 μA |
| Detector Type | Si-Pin |
| Resolution | 180 eV |
| Multichannel Analyzer | DMCP |
| Test Time | 3 ~ 30 s |
| Measuring Element | 82 elements from Sodium (Na) to Uranium (U); up to 26 elements simultaneously (precious metals industry only) |
| Analysis Software | qualitative and quantitative analysis software |
| Shape Size (mm) | 278 × 338 × 278 |
| Total Weight | 5.9 kg (with battery) |
| Ambient Temperature | -5 °C to 45 °C |
| Relative Humidity | < 90% |
