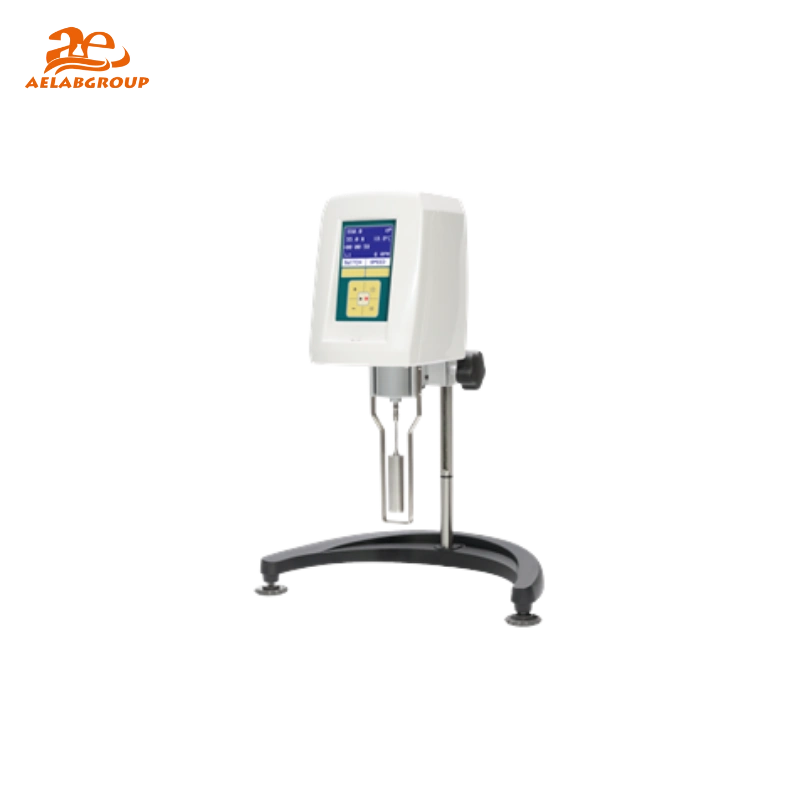

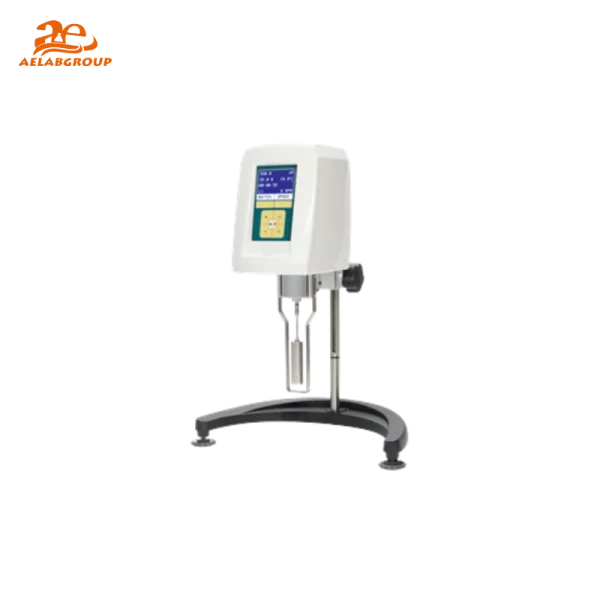

The AELAB LV-RV-HA-HB Series Rotary Viscometer provides fast and accurate viscosity measurement for fluid samples ranging from low to extremely high viscosity. Designed for laboratory and industrial environments, the instrument supports multiple rotors, adjustable rotational speeds, and optional adapters to extend measurement capability down to ultra-low viscosity levels.
The AELAB LV-RV-HA-HB Series rotary viscometer features intuitive operation, automatic calibration by computer, stable rotational speed, and strong anti-interference performance. The system displays viscosity, shear rate, and shear stress simultaneously, ensuring high comparability with imported viscometers used in quality control laboratories.

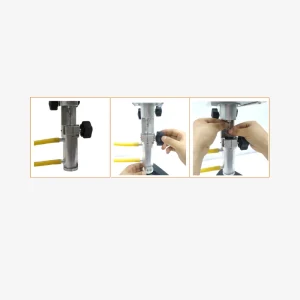

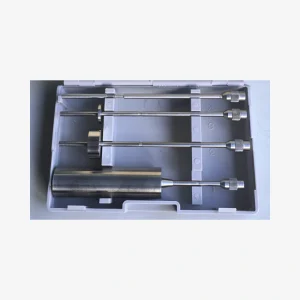

The AELAB LV-RV-HA-HB Series rotary viscometer is constructed with a rigid stand-mounted frame and precision motor drive. The instrument supports interchangeable Stainless Steel rotors (L1–L4 and R1–R7), enhanced ultra-low viscosity adapters, and optional constant temperature components to maintain stable testing conditions.
The AELAB LV-RV-HA-HB Series rotary viscometer measures viscosity by rotating a calibrated rotor at a controlled speed within the sample. The instrument quantifies the torque resistance generated by the fluid, converts the signal into viscosity values, and displays shear rate and shear stress for Newtonian liquid analysis.
The AELAB LV-RV-HA-HB Series rotary viscometer integrates two USB interfaces for direct connection to a computer and micro-thermal printer. Data and curves can be printed directly, supporting laboratory documentation and GLP-style record keeping.
| Model | Speed Range (rpm) | Max Viscosity (mPa·s) |
|---|---|---|
| LVDV-1 | 0.3–100 | 2,000,000 |
| LVDV-2 | 0.1–200 | 6,000,000 |
| HBDV-2 | 0.1–200 | 320,000,000 |
The AELAB LV-RV-HA-HB Series rotary viscometer is used for viscosity measurement in pharmaceutical formulations, food and beverage products, chemical materials, polymers, petroleum products, adhesives, waxes, paraffin, hot melt glue, and other industrial fluids requiring controlled shear analysis.

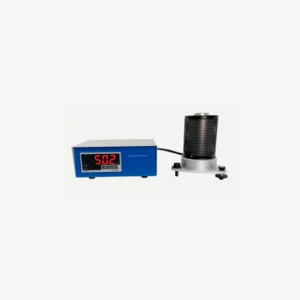

The AELAB LV-RV-HA-HB Series rotary viscometer supports ISO-style laboratory operation with automated calibration, traceable viscosity standards, and stable performance under controlled environmental conditions. Optional temperature probes and constant temperature baths ensure reproducible and compliant viscosity testing.
Specifications :
| Model | LVDV-1 | LVDV-2 |
|---|---|---|
| Display | Liquid Crystal Display | |
| Speed (rpm) | 0.3–100 (37 RPM) | 0.1–200 (58 RPM) |
| Measuring Range (mPa·s) | 1–2,000,000 | 1–6,000,000 |
| Sample Dosage | Rotor 1–4: 300–400 mL Rotor 18,25,31,34: 7–11 mL ULR: 21 mL |
Rotor 1–4: 300–400 mL Rotor 18,25,31,34: 7–11 mL ULR: 21 mL |
| Measurement Error | ±1% (Newtonian liquid) | |
| Repeatability Error | ±0.3% (Newtonian liquid) | |
| Showing the shear response / shear rate |
Standard Configuration | |
| Temperature measurement function |
Standard temperature probe interface (optional temperature probeis required) |
|
| Automatic Scanning Function | Automatically scan and recommend a preferential combination of therotor and the rotational speed |
|
| Print Function | Data and curve printable (standard printing interface, printer) | |
| Data Output Interface | Two USB Interfaces (Printer and Computer) | |
| Working Power Supply | 110 V / 60 Hz or 220 V / 50 Hz | |
| Outline Dimensions (mm) | 300 × 300 × 450 | |
| Model | LVDV-1 | LVDV-2 |
|---|---|---|
| Display | Liquid Crystal Display | |
| Speed (rpm) | 0.3–100 (37 RPM) | 0.1–200 (58 RPM) |
| Measuring Range (mPa·s) | 1–2,000,000 | 1–6,000,000 |
| Sample Dosage | Rotor 1–4: 300–400 mL Rotor 18,25,31,34: 7–11 mL ULR: 21 mL |
Rotor 1–4: 300–400 mL Rotor 18,25,31,34: 7–11 mL ULR: 21 mL |
| Measurement Error | ±1% (Newtonian liquid) | |
| Repeatability Error | ±0.3% (Newtonian liquid) | |
| Showing the shear response / shear rate |
Standard Configuration | |
| Temperature measurement function |
Standard temperature probe interface (optional temperature probeis required) |
|
| Automatic Scanning Function | Automatically scan and recommend a preferential combination of therotor and the rotational speed |
|
| Print Function | Data and curve printable (standard printing interface, printer) | |
| Data Output Interface | Two USB Interfaces (Printer and Computer) | |
| Working Power Supply | 110 V / 60 Hz or 220 V / 50 Hz | |
| Outline Dimensions (mm) | 300 × 300 × 450 | |
