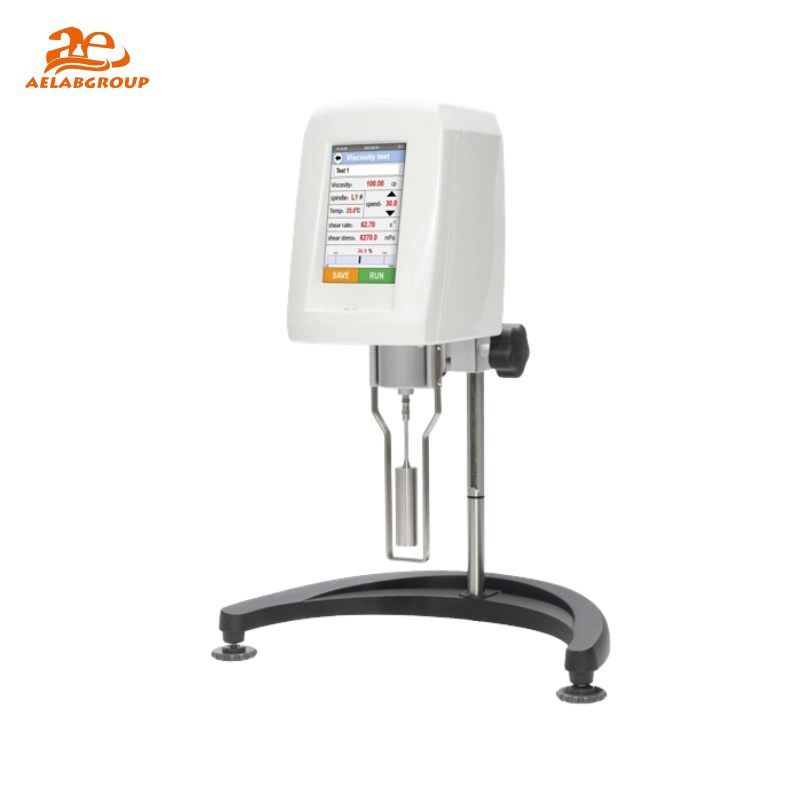

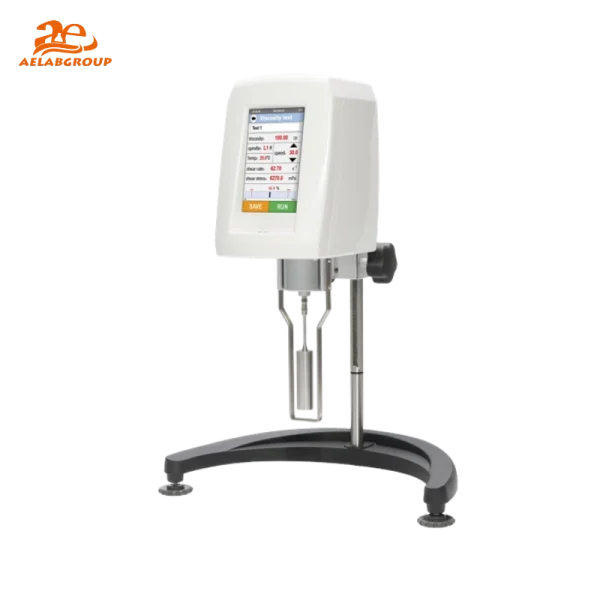

AELAB LVDV-1T / LVDV-2T Touchscreen Rotational Viscometer for Viscosity Testing

The AELAB LVDV-1T / LVDV-2T touchscreen rotational viscometer integrates a 5-inch color touch screen with ARM technology and a built-in Linux system to perform fast, accurate viscosity testing. The AELAB LVDV-1T / LVDV-2T measures high-viscosity samples with stable rotational speed, supports automatic scanning of rotor and rotation speed, and displays viscosity curves and working parameters for controlled laboratory and industrial measurement workflows.

The AELAB LVDV-1T / LVDV-2T touchscreen rotational viscometer quantifies dynamic viscosity and supports kinematic viscosity calculation by density entry. Real-time temperature-time and viscosity-time curves are supported, and rheological curves of shear rate and viscosity can be displayed using optional data processing software, enabling repeatable viscosity testing in paint, cosmetics, ink, pulp, food, oil, starch, solvent adhesive, latex, biochemical products, and other high-viscosity industries.

⚙️ Design & Construction

• The AELAB LVDV-1T / LVDV-2T touchscreen rotational viscometer uses an ARM-based controller with a built-in Linux system to stabilize rotational control logic and measurement processing.

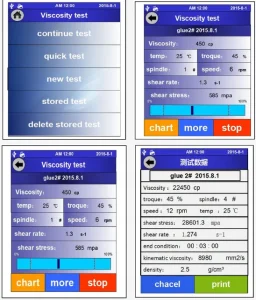

• A 5-inch color touch screen provides visual display of viscosity, temperature, speed, rotor selection, and time-based curves for viscosity testing documentation.

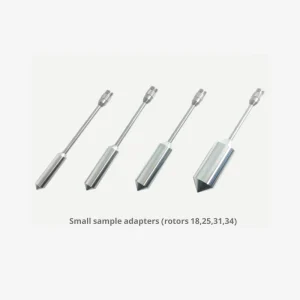

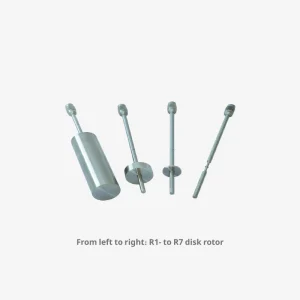

• The AELAB LVDV-1T / LVDV-2T rotational viscometer supports standard rotor sets L1–L4 and optional adapters for ultra-low viscosity (ULR) and small sample measurement configurations.

🔬 Working Principle / Testing Method

• The AELAB LVDV-1T / LVDV-2T rotational viscometer regulates rotor speed (r/min) and measures the resistance response of the sample to quantify viscosity during rotational shear.
• Automatic scanning recommends a preferred combination of rotor and rotation speed to reach a measurable viscosity range and improve testing efficiency.
• The AELAB LVDV-1T / LVDV-2T touchscreen viscometer displays viscosity-time curves and temperature-time curves; optional software enables rheological curve visualization for shear rate and viscosity.
• Kinematic viscosity is supported by entering sample density, allowing viscosity testing workflows that require dynamic and kinematic viscosity reporting.

💡 Key Advantages

• The AELAB LVDV-1T / LVDV-2T touchscreen rotational viscometer delivers ±1% measurement error (Newtonian liquid) for viscosity testing quality control.
• Repeatability is specified at ±0.5% (Newtonian liquid), supporting stable long-term viscosity testing.
• Speed is 0.1–200 r/min with a total of 2000 speed options for controlled shear and viscosity measurement.
• Supports multiple sample dosage configurations including 7 ml, 9 ml, 10.5 ml, 11 ml, and 21 ml (ULR), enabling viscosity testing with reduced sample consumption.
• Real-time curve display supports viscosity testing trend monitoring for temperature-time and viscosity-time behavior.
• Up to 30 self-built measurement procedures and up to 30 stored datasets strengthen viscosity testing method repeatability and GLP-style documentation.
• Wide voltage operation (110 V/60 Hz or 220 V/50 Hz) supports global laboratory viscosity testing deployments.

🔗 Connectivity & Integration

• The AELAB LVDV-1T / LVDV-2T touchscreen viscometer supports USB data output: insert U disk and copy data directly for viscosity testing records.
• RS232 supports computer connection for viscosity testing integration and data handling.
• Printing interface supports data and curve printing (printer purchase required), aligning with audit-friendly viscosity testing workflows.

🧠 Model Insight

🧪 Testing Applications

• The AELAB LVDV-1T / LVDV-2T touchscreen rotational viscometer performs viscosity testing for paint, coatings, and ink where controlled shear and repeatable viscosity measurement are required.
• Supports viscosity testing in cosmetics, latex, adhesives, and polymer systems where high-viscosity materials require stable rotational speed control.
• Used for viscosity testing in food, oil, starch, and process fluids where trend monitoring via viscosity-time curves supports quality control.
• Applicable to biochemical products and laboratory formulations where viscosity testing documentation, stored methods, and data preservation support regulated workflows.

Compliance & Quality Assurance

• The AELAB LVDV-1T / LVDV-2T touchscreen rotational viscometer supports method storage (up to 30 groups) and data preservation (up to 30 sets), reinforcing GLP-style traceability in viscosity testing.
• USB U disk data copy and RS232 computer connection support controlled data handling for viscosity testing records and internal QC review.
• Optional thermostatic components (special thermostatic tank, thermostatic cup, temperature control device, heating furnace) support controlled temperature conditions for viscosity testing repeatability.

For laboratories requiring controlled viscosity testing with touch-screen operation, curve visualization, and exportable results, the AELAB LVDV-1T / LVDV-2T touchscreen rotational viscometer provides measurable performance parameters, documented procedures, and global power compatibility in a compact instrument outline of 300 × 300 × 450 mm.
