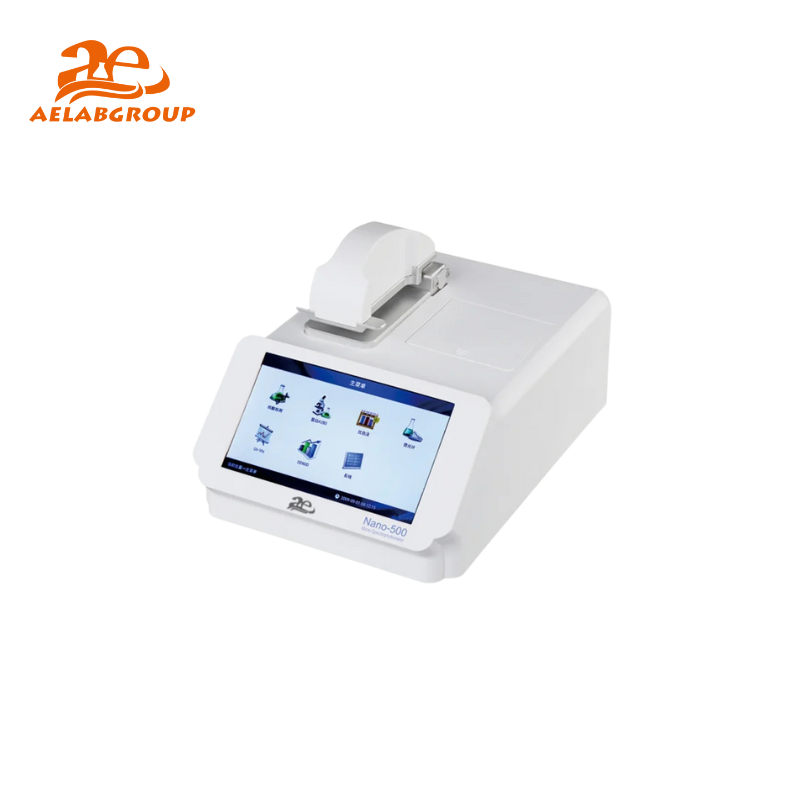

The MicroSpectrophotometer NANO-500 is an advanced instrument designed for precise measurement of nucleic acids, proteins, and other biomolecules in micro-volume samples. It offers enhanced accuracy and sensitivity, suitable for various applications in molecular biology and biochemistry. The NANO-500 features an intuitive touch screen interface, requires no external computer, and includes a built-in cuvette holder, allowing for flexible measurement options. Its compact design makes it ideal for labs with limited space, while its high-performance optics ensure reliable and reproducible results.

Features

• 7-inch touched screen, Android system with friendly Ul design
• Ouick detection (only takes time of 2-6s), no dilution needed
• Auto-detection functionis available
• No need to preheat instrument. measurements can be done upon turning on
• Long life’s Xenon flash lamp, 10⁹ flashes
• Good repeatability due to accurate pathlength control
• Heating up to 37°C , stirring speed 100-900rpm for cuevette measurements
• Only 0.5 ~ 2µl sample volume requested, which can be recycled after test, ideal for precious samplesRNA、protein,down to 0.5pg/ul (dsDNA High Sensitivity)
• Fluorometer measurement, strong specificity, high sensitivity can make it detect low concentration samples like dsDNA、Olipo、RNA、protein,down to 0.5pg/µl (dsDNA High Sensitivity)
• Built-in printer
• Measurement results can be exported to U disc in format of Excel、 JPG

🔬 How It Works?

The NANO-500 utilizes high-performance optical technology to measure absorbance and fluorescence in micro-volume samples. Its Xenon flash lamp provides stable illumination, while the linear CMOS array detector ensures precise readings. Users simply place 0.5–2 µl of a sample directly on the pedestal or in a cuvette. The instrument calculates concentration and purity instantly—without dilution or preheating—making it fast and reliable for routine lab analysis.

💡 Advantages

• Micro-Volume Efficiency: Requires as little as 0.5 µl of sample, minimizing waste.

• High Sensitivity: Detects dsDNA down to 0.5 pg/µl with excellent repeatability.

• Versatile Measurement: Supports nucleic acids, proteins, oligos, and other biomolecules.

• Dual Operation Modes: Pedestal & cuvette for flexible applications.

• User-Friendly Interface: 7-inch Android touch screen with intuitive UI.

• Time-Saving: Results in less than 6 seconds, with no preheating required.

• Long-Term Value: Xenon lamp lasts >10⁹ flashes, reducing maintenance needs.

• Data Management: Export results to USB in Excel or JPG formats.

🔍 Recommended Models by Use Case

• Educational Labs & Training Centers → Simple, fast, and durable for routine teaching.

• Research & Molecular Biology Labs → High sensitivity for nucleic acids, RNA, and protein studies.

• Pharma & QC Departments → Reliable performance and GMP suitability for quality testing.

• Food & Environmental Labs → Versatile detection for biomolecules in applied sciences.

🧪 Ideal For

• DNA, RNA, and protein quantification

• Molecular biology and biochemistry research

• Pharmaceutical quality control

• Food safety and environmental testing

• Clinical and academic research laboratories
