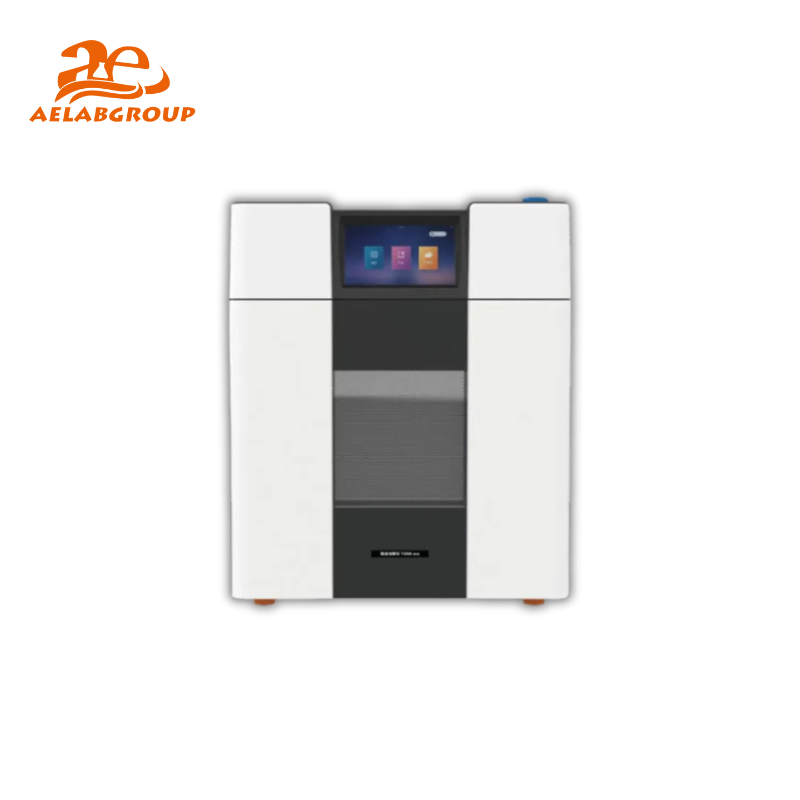

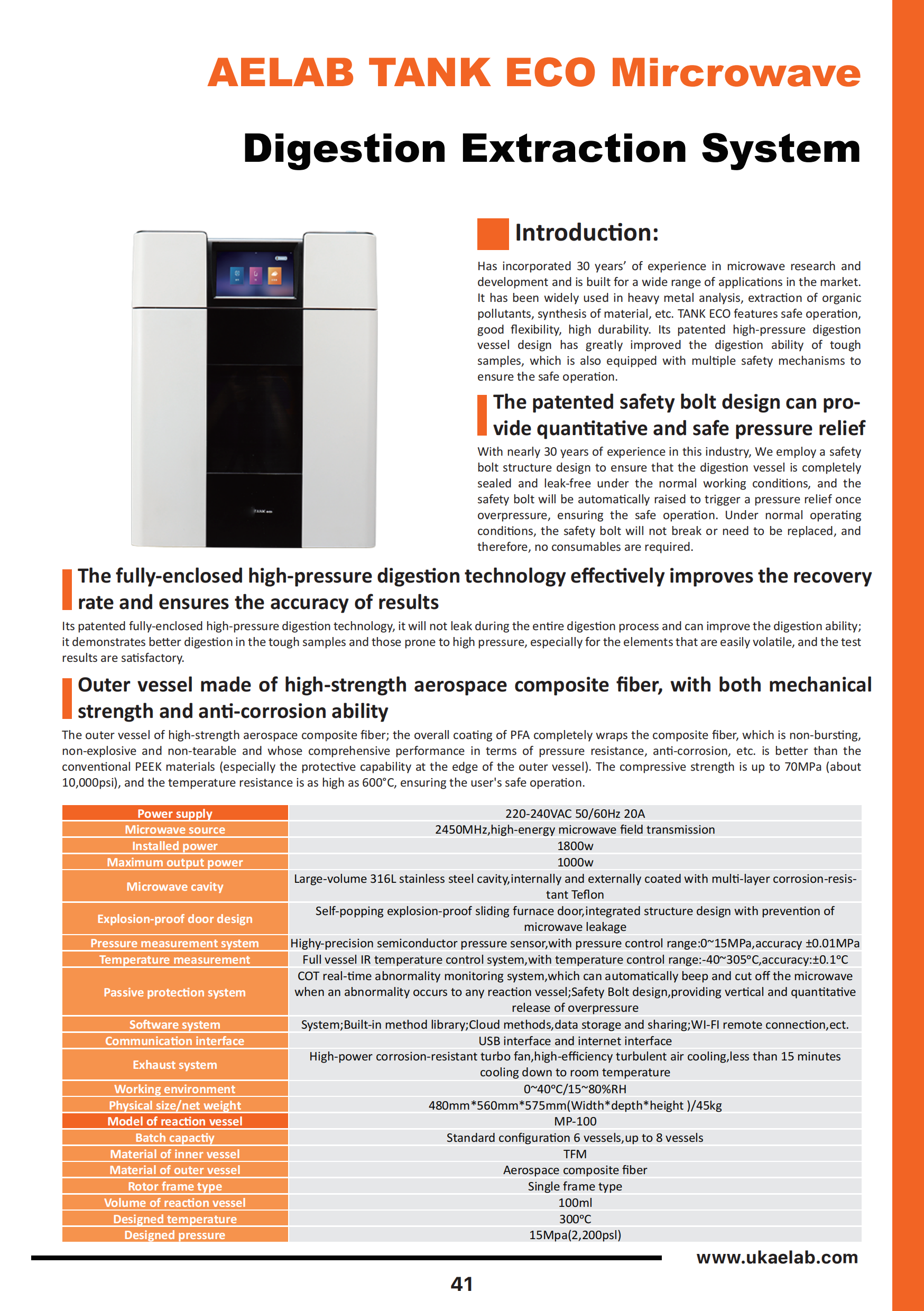

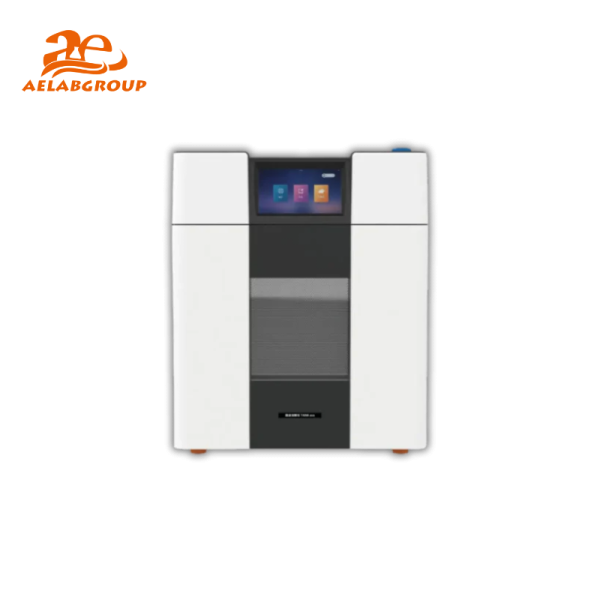

Microwave Digestion/Extraction System TANK ECO

Features:

• The optical fiber and IR temperature measurement system provides precise temperature control while monitoring any abnormality, thereby ensuring accurate results and safety.
  TANK ECO Microwave Digestion/Extraction System is provided with a full vessel IR temperature monitoring system as standard configuration, with a multi-core integrated optical fiber temperature measurement system OPTIONAL. The full vessel temperature monitoring system can effectively monitor any abnormal conditions. If a temperature abnormality occurs, the microwave transmission will be immediately stopped and a beep will alarm.
• High-precision semiconductor pressure sensor, with strong corrosion resistance and high mechanical strength.
  TANK ECO utilizes an improved semiconductor pressure sensor, whose entire pressure transmission path has undergone special anti-corrosion treatment. In addition to accurate pressure measurement, the service life of the sensor has been greatly extended with improved reliability.
• 7-inch LCD touch screen clearly displays the digestion status and experiment process.
  The operating software can display the parameters such as temperature, pressure, time and steps in real time and switch to the coordinate curve interface at any time to check the real-time temperature and pressure changes during the experiment. It can help users understand the experiment process and improve the digestion plans.
• Powerful and convenient software with FDA 21 CFR Part 11.
  The software was designed and developed based on the Android system, provided with the functions such as electronic signature, limits of authority and audit trail, and in line with FDA 21 CFR Part 11 rule. 8G storage, built-in expert method library, and a 7-inch LCD touch screen that can display the temperature-pressure curve during the operation in real time. The software can automatically count the number of vessels, making the experiment easier and simpler.
• “Cloud Service” function, the storage can be unlimitedly expanded while ensuring data security.
  TANK ECO is equipped with the “cloud service” function so that data, methods and other information can be stored and shared in the cloud, unlimited expansion of data storage under the premise of ensuring data security can be provided, and the latest version of the software can also be downloaded from public cloud servers to provide an online update of the system, comprehensively improving the user experience.
• Multiple functions of microwave digestion, microwave extraction and microwave synthesis.
  TANK ECO workstation can provide multiple functions, which can be equipped with an organic solvent leakage sensor, complete pre-processing before microwave digestion and extraction and can also be capable of research of microwave assisted synthesis.
