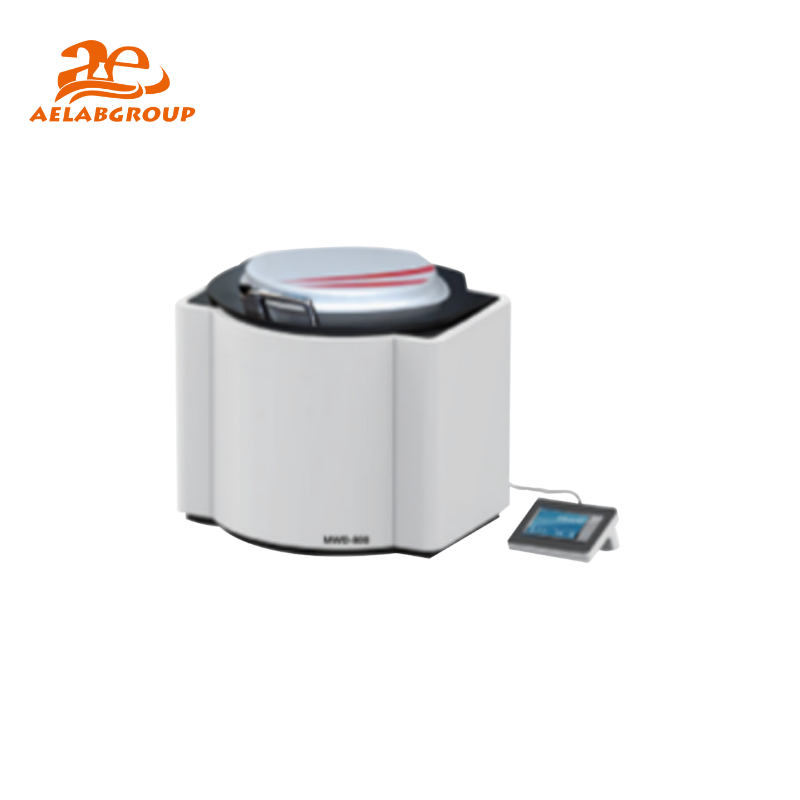

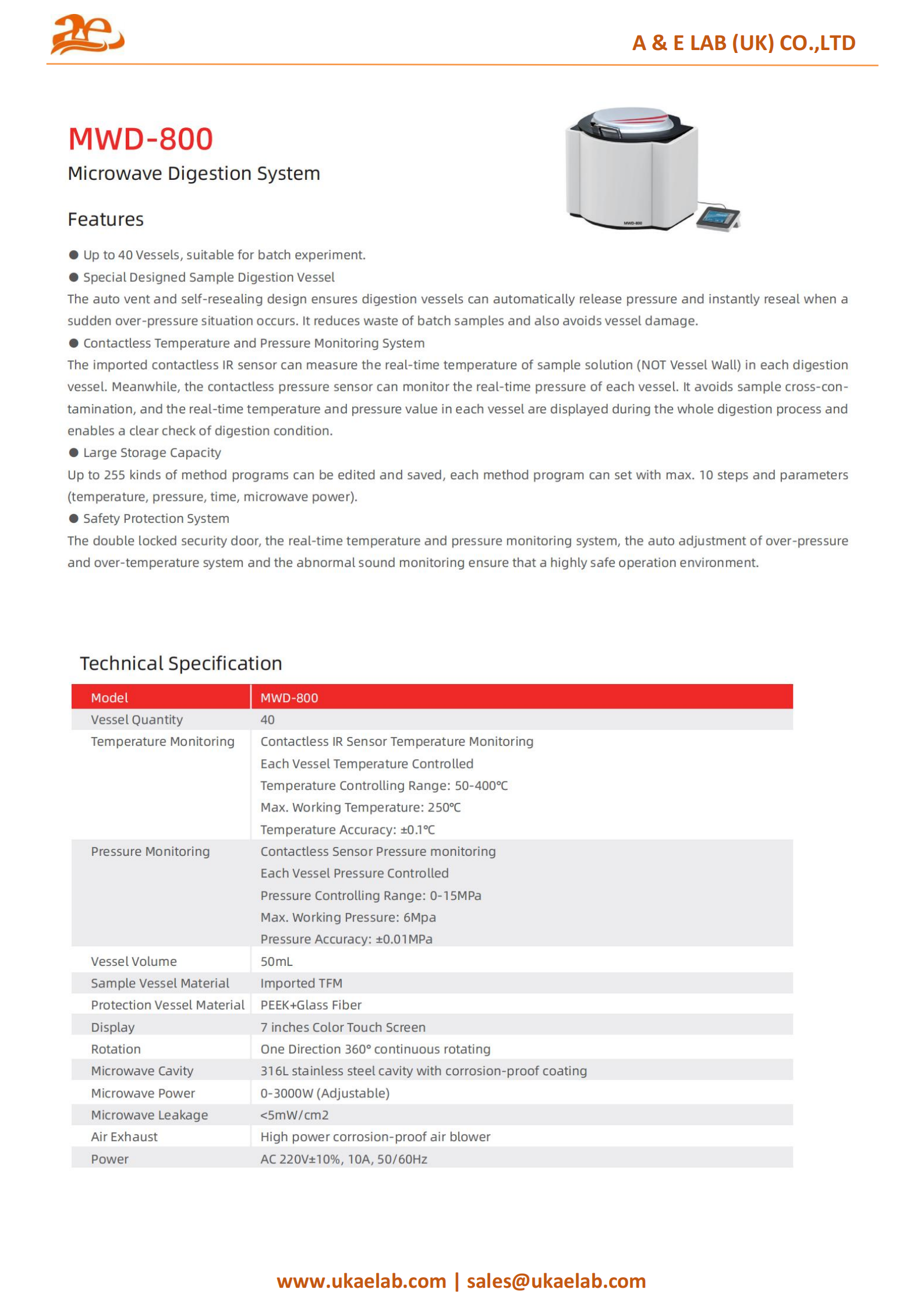

The MWD-800 Microwave Digestion System supports up to 40 vessels for batch experiments. It features auto venting, self-resealing digestion vessels for safety, and contactless IR and pressure sensors for real-time monitoring of temperature and pressure. With storage for up to 255 customizable method programs and a built-in safety protection system, it ensures efficient, reliable, and secure sample digestion.
The auto vent and self-resealing design ensures digestion vessels can automatically release pressure and instantly reseal when a sudden over-pressure situation occurs. It reduces waste of batch samples and also avoids vessel damage.
The imported contactless IR sensor can measure the real-time temperature of sample solution (NOT Vessel Wall) in each digestion vessel. Meanwhile, the contactless pressure sensor can monitor the real-time pressure of each vessel. It avoids sample cross-contamination, and the real-time temperature and pressure value in each vessel are displayed during the whole digestion process and enables a clear check of digestion condition.
Up to 255 kinds of method programs can be edited and saved, each method program can set with max. 10 steps and parameters (temperature, pressure, time, microwave power).
Specifications :
| Model | MWD-800 |
| Vessel Quantity | 40 |
| Temperature Monitoring | Contactless IR Sensor Temperature Monitoring Each Vessel Temperature Controlled Temperature Controlling Range: 50 - 400°C Max. Working Temperature: 250°C Temperature Accuracy: ±0.1°C |
| Pressure Monitoring | Contactless Sensor Pressure monitoring Each Vessel Pressure Controlled Pressure Controlling Range: 0 - 15MPa Max. Working Pressure: 6MPa Pressure Accuracy: ±0.01MPa |
| Vessel Volume | 50mL |
| Sample Vessel Material | Imported TFM |
| Protection Vessel Material | PEEK + Glass Fiber |
| Display | 7 inches Color Touch Screen |
| Rotation | One Direction 360° continuous rotating |
| Microwave Cavity | 316L stainless steel cavity with corrosion-proof coating |
| Microwave Power | 0 - 3000W (Adjustable) |
| Microwave Leakage | <5mW/cm² |
| Air Exhaust | High power corrosion-proof air blower |
| Power | AC 220V±10%, 10A, 50/60Hz |
| Model | MWD-800 |
| Vessel Quantity | 40 |
| Temperature Monitoring | Contactless IR Sensor Temperature Monitoring Each Vessel Temperature Controlled Temperature Controlling Range: 50 - 400°C Max. Working Temperature: 250°C Temperature Accuracy: ±0.1°C |
| Pressure Monitoring | Contactless Sensor Pressure monitoring Each Vessel Pressure Controlled Pressure Controlling Range: 0 - 15MPa Max. Working Pressure: 6MPa Pressure Accuracy: ±0.01MPa |
| Vessel Volume | 50mL |
| Sample Vessel Material | Imported TFM |
| Protection Vessel Material | PEEK + Glass Fiber |
| Display | 7 inches Color Touch Screen |
| Rotation | One Direction 360° continuous rotating |
| Microwave Cavity | 316L stainless steel cavity with corrosion-proof coating |
| Microwave Power | 0 - 3000W (Adjustable) |
| Microwave Leakage | <5mW/cm² |
| Air Exhaust | High power corrosion-proof air blower |
| Power | AC 220V±10%, 10A, 50/60Hz |
