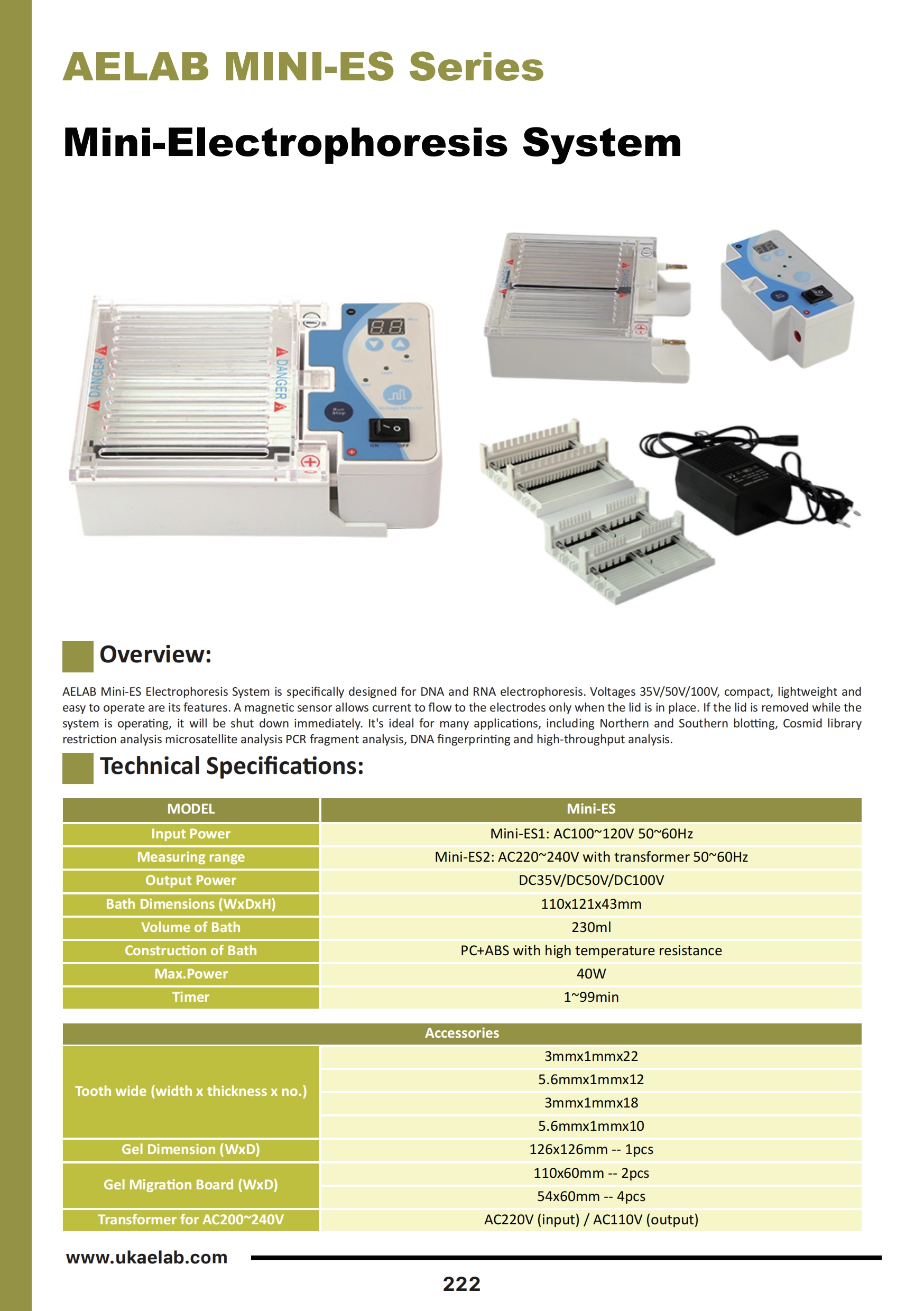

AELAB Mini Electrophoresis System – Mini-ES Series for DNA/RNA

AELAB Mini-ES Electrophoresis System is specifically designed for DNA and RNA electrophoresis.

Voltages 35V/50V/100V, compact, lightweight and easy to operate are its features.

A magnetic sensor allows current to flow to the electrodes only when the lid is in place. If the lid is removed while the system is operating, it will be shut down immediately.

It’s ideal for many applications, including Northern and Southern blotting, Cosmid library restriction analysis microsatellite analysis PCR fragment analysis, DNA fingerprinting and high-throughput analysis.

 Features:

• Input Power: AC100~120V 50~60Hz or AC220~240V with transformer 50~60Hz
• Output Power: DC35V/DC50V/DC100V
• Bath Dimensions (WxDxH): 110x121x43mm
• Volume of Bath: 230ml
• Construction of Bath: PC+ABS with high temperature resistance
• Power:40W
• Timer range:1min~99min
• Overall Dimensions (WxDxH):190x130x60mm

🔬 How It Works?

The AELAB Mini-ES uses gel electrophoresis to separate DNA or RNA fragments by size. After loading samples into agarose gel wells, the system applies an electric current—causing negatively charged nucleic acids to migrate through the gel. A magnetic safety interlock ensures that current only flows when the lid is securely closed, immediately halting operation if removed, ensuring user safety.

💡 Advantages

• ✅ Compact & Portable: Ideal for small lab benches and mobile setups

• ✅ Multi-Voltage Support: Selectable 35V, 50V, or 100V for flexible applications

• ✅ Safety Interlock: Prevents accidental exposure to live current

• ✅ User-Friendly Timer: Digital timer from 1 to 99 minutes with auto-stop

• ✅ Durable Build: Heat-resistant PC+ABS for extended device longevity

• ✅ Complete Accessory Kit: Includes combs, gel plates, and migration boards

🔍 Recommended Models by Use Case

• Mini-ES1: For educational and academic labs using 110V supply

• Mini-ES2: For international or research labs using 220V power

• With Transformer: Perfect for institutions with varying voltage requirements

🧪 Ideal For

• University and educational biology labs

• Molecular biology research centers

• Genetic fingerprinting labs

• Quality control in pharmaceutical and biotech industries

• Food and environmental testing labs

• High-throughput DNA/RNA fragment analysis
