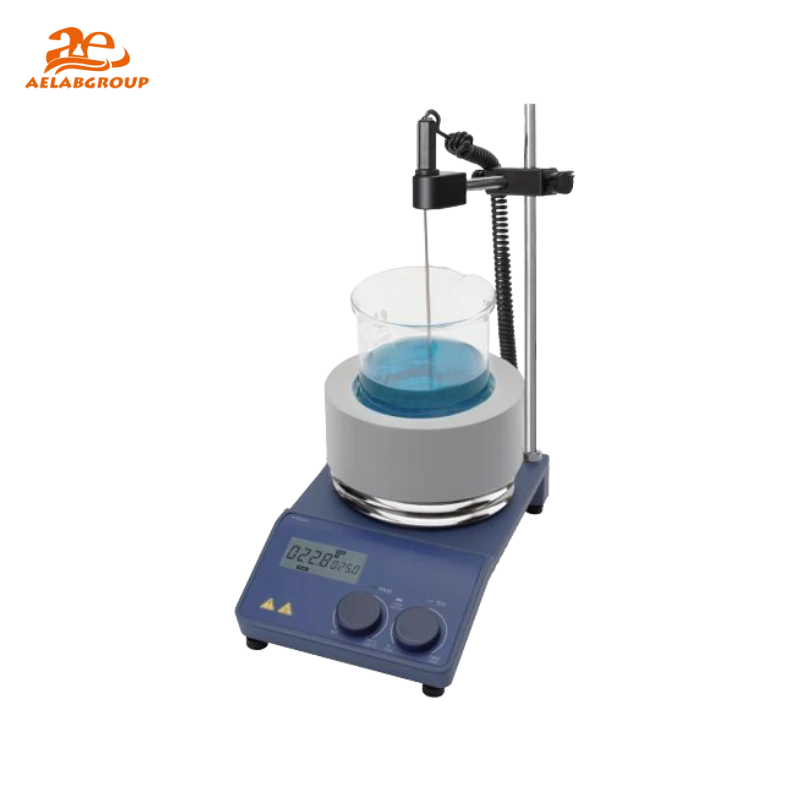

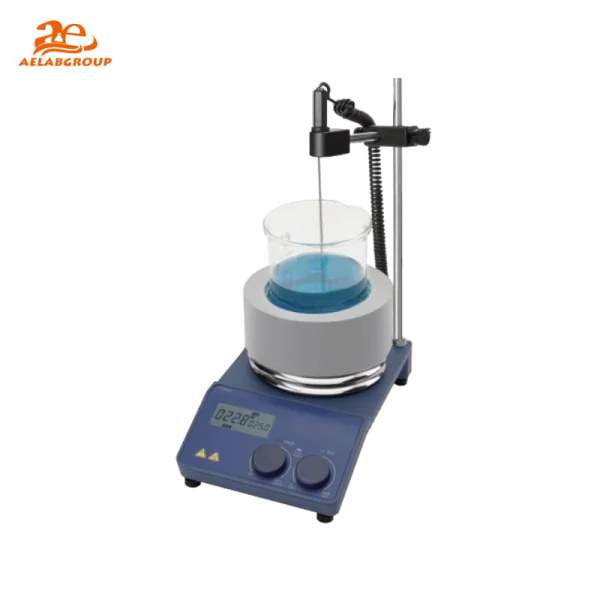

AELAB MS-H280 Magnetic Stirrer with Heating Mantle | LCD Digital Heating & Mixing System

The AELAB MS-H280 Series integrates a high-power magnetic stirrer with a precision electric heating mantle for uniform heating and strong magnetic coupling. With interchangeable heating sleeves for multiple beaker and flask sizes, it supports flexible liquid processing under controlled temperature conditions. The LCD digital display, safety monitoring circuits, and stable drive system make it suitable for scientific, industrial, and educational laboratories.

The MS-H280-B100/250/500/1000 and MS-H280-F100/250/500/1000 models provide accurate heating, strong stirring torque, and consistent temperature regulation. Designed for applications requiring simultaneous heating and mixing, the system maintains reliable thermal uniformity and repeatable stirring performance.

⚙️ Design & Construction

The AELAB MS-H280 Series features a durable metal housing with an LCD control panel for real-time monitoring of stirring and heating settings. The heating mantle incorporates high-quality Aluminum Silicate Fiber for uniform thermal distribution and corrosion resistance. Interchangeable sleeves accommodate 100–1000 mL vessels in both beaker and round-bottom flask formats. A brushless DC motor ensures quiet operation, long service life, and enhanced magnetic field strength for improved stirring of viscous solutions.

🔬 Working Principle / Testing Method

The integrated heating mantle surrounds the vessel, transferring heat through insulated Aluminum Silicate Fiber for stable and controlled temperature regulation. A high-strength magnetic field rotates a PTFE-coated stir bar placed inside the vessel. Temperature and speed adjustments are performed through the LCD digital panel, enabling precise control of heating, mixing, and incubation processes. The system supports independent adjustment of stirring speed and working temperature.

💡 Key Advantages

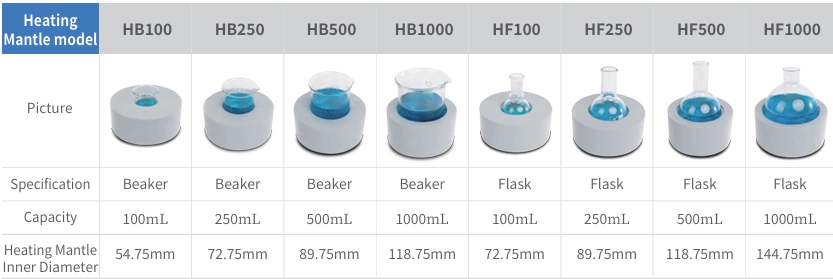

• Supports 100–1000 mL vessels through interchangeable heating sleeves
• Uniform mantle heating improves thermal efficiency during incubation and reaction processes
• Brushless DC motor enhances torque stability and long-term reliability
• Integrated HOT indicator warns the user when the surface exceeds 50 °C
• Dual safety monitoring circuits prevent overheating and sensor malfunction
• Magnetic stirrer can be used with or without heating depending on process requirements
• Temperature self-calibration maintains long-term accuracy

🔗 Connectivity & Integration

The MS-H280 Series includes an LCD interface with direct panel control for adjusting heating and stirring parameters. The system supports digital monitoring of temperature and operational status. No external communication ports were listed in the provided catalog materials.

🧠 Model Insight

🧪 Testing Applications

• Chemical solution preparation and reagent dissolution
• Biochemistry, microbiology, and molecular workflow heating
• Food and agricultural sample heating and mixing
• Pharmaceutical formulation and controlled-temperature stirring
• Petrochemical heating, extraction, and viscosity processing
• Education and training laboratories for controlled heating experiments
• Mining and materials processing requiring consistent thermal input

Compliance & Quality Assurance

The AELAB MS-H280 Series is manufactured under ISO-aligned quality standards with safety-tested components, dual-circuit protection, HOT surface indication, and precise thermal calibration. Each unit undergoes performance verification to ensure consistent stirring stability and long-term laboratory reliability.
