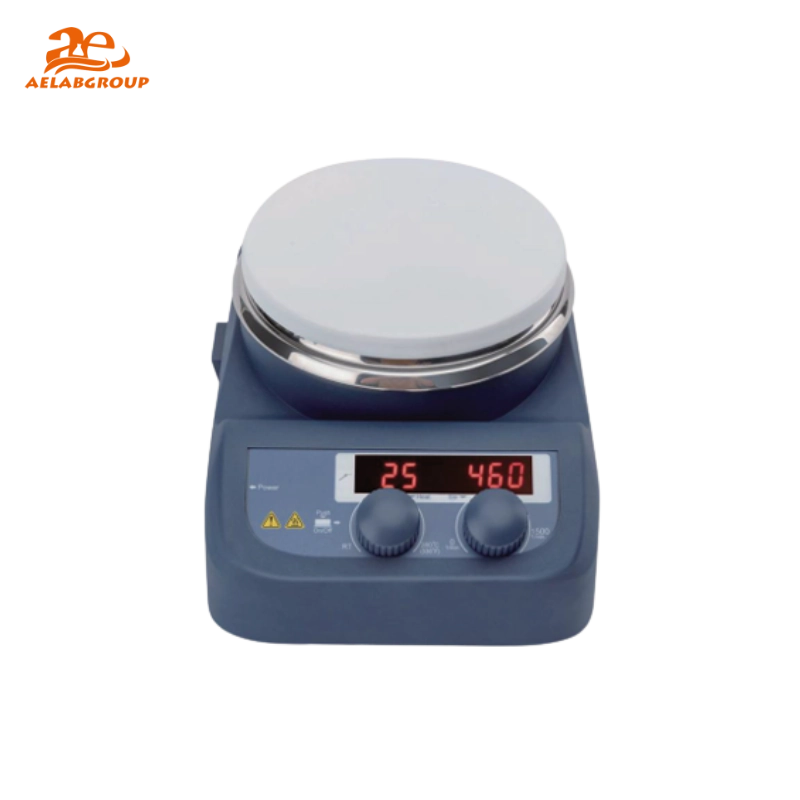

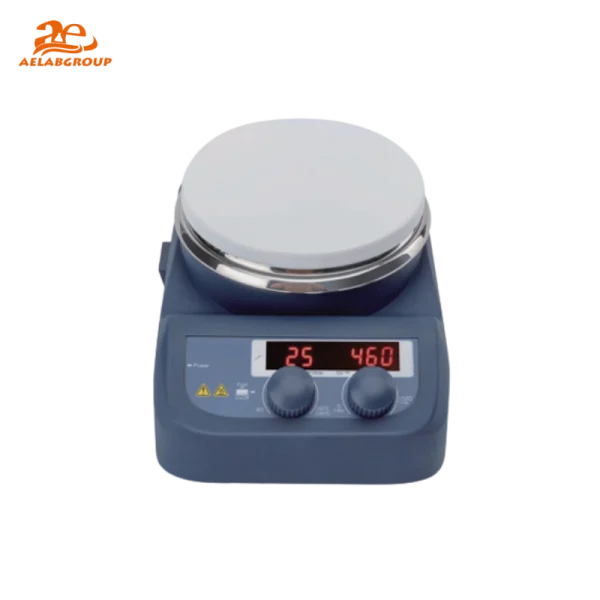

The AELAB MS-H280-Pro LED Digital Magnetic Hotplate Stirrer is engineered for high reliability in small-volume laboratory tasks, providing digital temperature and stirring control with rapid heating up to 280 °C. Its ceramic-coated stainless-steel surface ensures excellent chemical resistance, while the LED display simplifies real-time monitoring during experimental work.
The MS-H280-Pro supports stable performance with a brushless DC motor, user-friendly adjustment knobs, and a compact footprint suitable for research, educational, and industrial laboratory environments.
The AELAB MS-H280-Pro features a durable Stainless Steel work plate coated with ceramic for enhanced chemical resistance and uniform heat distribution. The internal Brushless DC motor minimizes noise and maintenance needs while extending operational lifespan. A clear LED interface displays both stirring speed and temperature, ensuring accurate process control in routine laboratory heating and mixing tasks.
The instrument generates a controlled magnetic field beneath the ceramic-coated plate, rotating a magnetic stirring bar within the vessel to homogenize samples effectively. The integrated heating system stabilizes plate temperature from ambient to 280 °C. For high-accuracy thermal measurement, the MS-H280-Pro supports a PT1000 external sensor, enabling liquid-phase temperature feedback with ±0.2 °C precision.
The MS-H280-Pro provides LED-based operational feedback for stirring and temperature settings. External temperature control is enabled via PT1000 sensor integration, supporting GLP-compliant traceability. No data connector is required for standard standalone operation.
| Model | Specifications |
|---|---|
| MS-H280-Pro | 200–1500rpm, 280 °C max heating, PT1000 compatible, 1.8 kg |
The AELAB MS-H280-Pro is suitable for solution preparation, chemical reagent mixing, heating and dissolving solids, buffer preparation, food and beverage analysis, microbiology workflows, university laboratories, and industrial QC environments requiring precise thermal and stirring control.
The MS-H280-Pro complies with ISO and CE laboratory equipment standards. All units undergo AELAB quality-control testing, including motor endurance verification, heating calibration, and safety system checks.
Specifications :
| Specifications | MS-H-ProA | MS-H-PRO | MS-H-PRO+ | MS-H-S | MS-H380-Pro | MS-H280-Pro |
|---|---|---|---|---|---|---|
| Work plate dimension (W×D) | Ø135mm (5 inch) | Ø135mm (5 inch) | Ø135mm (5 inch) | Ø135mm (5 inch) | 140×140mm | Ø135mm (5 inch) |
| Work plate material | Aluminum cover with ceramic coating | Stainless steel cover with ceramic coating | Stainless steel cover with ceramic coating | Stainless steel cover with ceramic coating | Aluminum cover with ceramic coating | Stainless steel cover with ceramic coating |
| Motor type | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor |
| Stirring positions | 1 | 1 | 1 | 1 | 1 | 1 |
| Max. stirring quantity (H₂O) | 20L | 20L | 20L | 20L | 5L | 3L |
| Max. magnetic bar length | 80mm | 80mm | 80mm | 80mm | 50mm | 50mm |
| Speed range | 100–1500rpm, resolution ±1rpm | 100–1500rpm, resolution ±1rpm | 100–1500rpm, resolution ±1rpm | 0–1500rpm | 200–1500rpm | 200–1500rpm |
| Speed display | LCD | LCD | LCD | Scale | LCD | LED |
| Temperature display | LCD | LCD | LCD | Scale | LCD | LED |
| Heating temperature range | Room temp.–340°C, increment 1°C | Room temp.–340°C, increment 1°C | Room temp.–340°C, increment 1°C | Room temp.–340°C | Room Temp.–380°C | Room Temp.–280°C |
| Heating liquid temperature control accuracy | ±1°C (<100°C) ±1% (>100°C) | ±1°C (<100°C) ±1% (>100°C) | ±1°C (<100°C) ±1% (>100°C) | _ | ±1°C (<100°C) ±1% (>100°C) | ±1°C (<100°C) ±1% (>100°C) |
| Overheating temp. protection | 420°C | 420°C | 420°C | 420°C | 420°C | 320°C |
| Temperature display accuracy | ±0.1°C | ±0.1°C | ±0.1°C | _ | ±0.1°C | ±1°C |
| External temp. sensor | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) | _ | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) |
| Hot warning | 50°C | 50°C | 50°C | _ | _ | 50°C |
| Data connector | RS232 | RS232 | RS232 | _ | _ | _ |
| Protection class | IP21 | IP21 | IP21 | IP21 | IP21 | IP42 |
| Timer function | 1min–99h59min | _ | 1min–99h59min | _ | _ | _ |
| Motor rating input | 10W | 10W | 10W | 10W | 1.8W | 3W |
| Power | 720W | 550W | 550W | 530W | 510W | 515W |
| Heating output | 600W | 500W | 500W | 500W | 500W | 500W |
| Voltage/Frequency | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz |
| Dimension (W×D×H) | 280×160×100mm | 160×280×100mm | 160×280×100mm | 160×280×100mm | 320×180×108mm | 150×260×100mm |
| Weight | 2.8kg | 2.8kg | 2.8kg | 2.8kg | 2.2kg | 1.8kg |
| Permissible ambient temp. & humidity | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH |
| Specifications | MS-H-ProA | MS-H-PRO | MS-H-PRO+ | MS-H-S | MS-H380-Pro | MS-H280-Pro |
|---|---|---|---|---|---|---|
| Work plate dimension (W×D) | Ø135mm (5 inch) | Ø135mm (5 inch) | Ø135mm (5 inch) | Ø135mm (5 inch) | 140×140mm | Ø135mm (5 inch) |
| Work plate material | Aluminum cover with ceramic coating | Stainless steel cover with ceramic coating | Stainless steel cover with ceramic coating | Stainless steel cover with ceramic coating | Aluminum cover with ceramic coating | Stainless steel cover with ceramic coating |
| Motor type | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor | Brushless DC motor |
| Stirring positions | 1 | 1 | 1 | 1 | 1 | 1 |
| Max. stirring quantity (H₂O) | 20L | 20L | 20L | 20L | 5L | 3L |
| Max. magnetic bar length | 80mm | 80mm | 80mm | 80mm | 50mm | 50mm |
| Speed range | 100–1500rpm, resolution ±1rpm | 100–1500rpm, resolution ±1rpm | 100–1500rpm, resolution ±1rpm | 0–1500rpm | 200–1500rpm | 200–1500rpm |
| Speed display | LCD | LCD | LCD | Scale | LCD | LED |
| Temperature display | LCD | LCD | LCD | Scale | LCD | LED |
| Heating temperature range | Room temp.–340°C, increment 1°C | Room temp.–340°C, increment 1°C | Room temp.–340°C, increment 1°C | Room temp.–340°C | Room Temp.–380°C | Room Temp.–280°C |
| Heating liquid temperature control accuracy | ±1°C (<100°C) ±1% (>100°C) | ±1°C (<100°C) ±1% (>100°C) | ±1°C (<100°C) ±1% (>100°C) | _ | ±1°C (<100°C) ±1% (>100°C) | ±1°C (<100°C) ±1% (>100°C) |
| Overheating temp. protection | 420°C | 420°C | 420°C | 420°C | 420°C | 320°C |
| Temperature display accuracy | ±0.1°C | ±0.1°C | ±0.1°C | _ | ±0.1°C | ±1°C |
| External temp. sensor | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) | _ | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) |
| Hot warning | 50°C | 50°C | 50°C | _ | _ | 50°C |
| Data connector | RS232 | RS232 | RS232 | _ | _ | _ |
| Protection class | IP21 | IP21 | IP21 | IP21 | IP21 | IP42 |
| Timer function | 1min–99h59min | _ | 1min–99h59min | _ | _ | _ |
| Motor rating input | 10W | 10W | 10W | 10W | 1.8W | 3W |
| Power | 720W | 550W | 550W | 530W | 510W | 515W |
| Heating output | 600W | 500W | 500W | 500W | 500W | 500W |
| Voltage/Frequency | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz |
| Dimension (W×D×H) | 280×160×100mm | 160×280×100mm | 160×280×100mm | 160×280×100mm | 320×180×108mm | 150×260×100mm |
| Weight | 2.8kg | 2.8kg | 2.8kg | 2.8kg | 2.2kg | 1.8kg |
| Permissible ambient temp. & humidity | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH |
