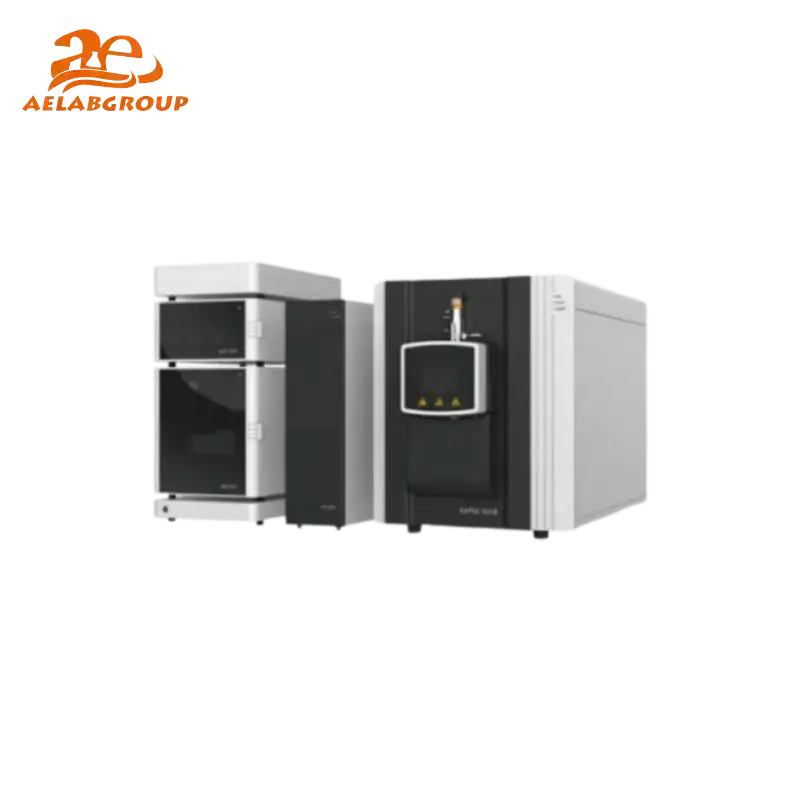

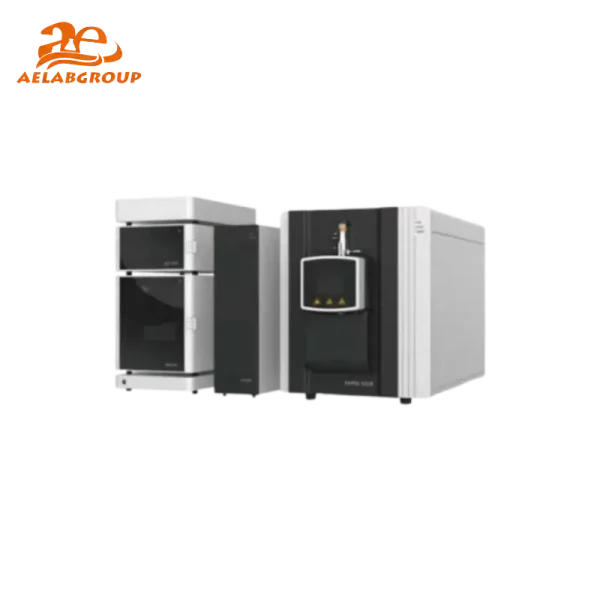

AELAB MS Spectrometer LC-MS 5210 – Advanced Triple Quadrupole Mass Spectrometer

Application:

AELAB liquid chromatography-mass spectrometry platform includes multiple products of triple quadrupole mass spectrometer, including LC-MS/MS, GC/LC-MS/MS, to create high-end domestic chromatography-mass spectrometry products. Combined with online, mobile, fully automatic and other application requirements, we have launched customized products such as online water quality monitoring, mobile monitoring, and fully automatic online SPE, which have excellent performance and reliability and can meet the analysis and application requirements in different fields such as food, medicine, clinical, environment, judicial identification, and emergency safety.

Mass Expert mass spectrometry workstation in English

The control software and analysis software of completely new Mass Expert mass spectrometry in English are simple to operate. The function of one-click automatic tuning and quality calibration reduces the complexity of instrument control and the threshold of instrument use. Mass spectrometry analysis software and report template can be customized according to different application fields and different users to meet the use needs of various application fields.

Robust and efficient ion optics

The innovative double 3Q ion optical system has high ion transmission efficiency, good matrix tolerance, good balance sensitivity and stability, and has excellent application performance.

Step Scan 3Q ion transport system

• Integrated packaging, easy to disassemble and cleaning .
• Three groups of quadrupoles form a unique 3Q ion transmission channel with large ion path and high ion transmission efficiency.
• Quadrupole design and step scanning can reduce the interference of low quality ions greatly.

Tandem QQQ quality analyzer

• Adopt design of tandem Quadrupole mass analyzer and Six-pole collision cell.
• The stable dual mass analyzer can carry out various mass analysis scans and is suitable for various mass spectrometry research work.
• Efficient collision cell for maximum ion transport.
• Including full scan, SIM, SRM, product ion scan, precursor ion scan, neutral loss scan and MRM.

Liquid chromatography system

Humanized design to improve user experience

• Plunger rod self-cleaning (back wash) is equipped as standard to reduce the impact of buffer salt on the pump system and prolong the service life of the gasket
• Online degasser (Degasser) is equipped as standard to reduce user’s exhaust bubble operation and improve system operation stability.
• Solvent switching valve (SSV, optional), which can quickly switch four mobile phases on the binary pump without manual switching of mobile Phases

The system has small delay and realizes rapid gradient change

The gradient of mobile phase B (5% → 95%) changed rapidly within 2 min, and then balanced to the initial 5% B within 25s, reflecting the super performance of the infusion pump

High gradient accuracy to ensure experiment repeatability

🔬 How It Works?
The LC-MS 5210 combines liquid chromatography separation with triple quadrupole mass spectrometry to analyze complex samples efficiently. The sample passes through the chromatography system, separating compounds based on chemical properties. Ions generated are transmitted via the innovative double 3Q ion optics with high sensitivity and stability. The tandem quadrupole mass analyzer performs multiple scan types to identify and quantify target molecules with accuracy and reproducibility. The Mass Expert software streamlines control and data analysis, making operation intuitive even for new users.

💡 Advantages

• High ion transmission efficiency and matrix tolerance ensure reliable results in complex sample matrices

• Robust tandem quadrupole design enables diverse scanning modes for comprehensive analysis

• One-click automatic tuning and calibration reduce user training time and operational complexity

• Integrated LC system with plunger self-cleaning and online degasser improves instrument lifespan and stability

• Fast gradient changes enable rapid experiment turnaround and improved throughput

• Customizable software and reports tailored to multiple fields increase versatility and user convenience

🔍 Recommended Models by Use Case

• Educational Labs: LC-MS 5210 standard model with user-friendly software for training purposes

• Research Centers: Advanced configurations with optional solvent switching for complex method development

• QC Departments: Fully automated versions for routine, high-throughput sample analysis with minimal maintenance

🧪 Ideal For

• Food safety laboratories conducting contaminant and residue analysis

• Pharmaceutical research and clinical labs requiring precise quantification of compounds

• Environmental monitoring agencies analyzing water and soil samples

• Forensic and judicial identification departments performing toxicology testing

• Emergency safety units requiring rapid and reliable detection of hazardous substances
