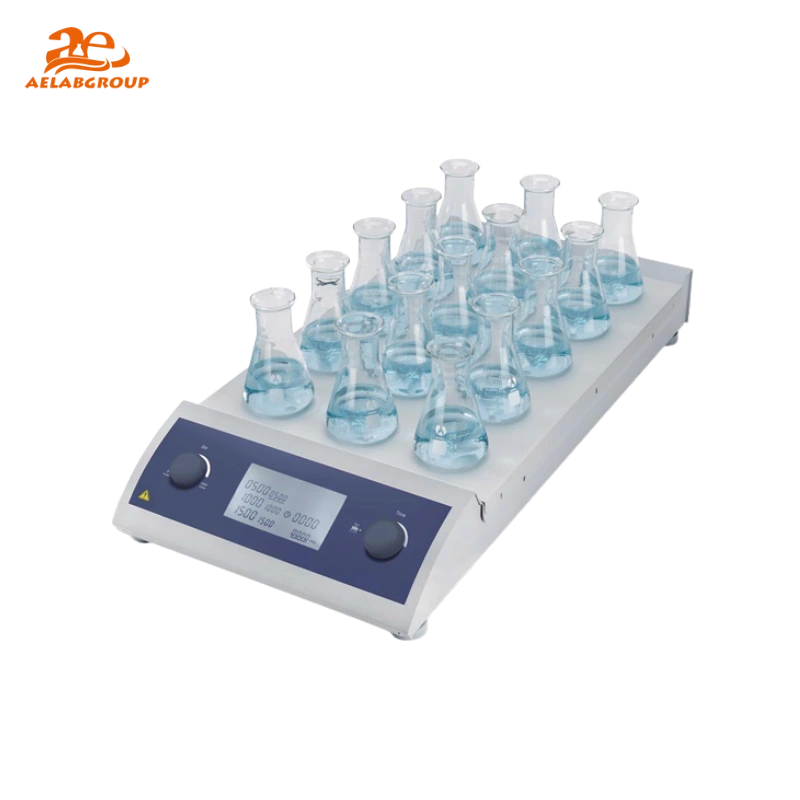

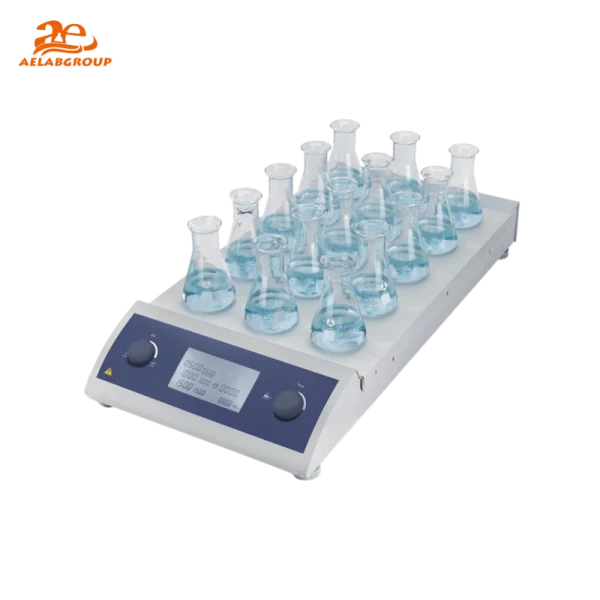

AELAB MS-T-S15 15-Position Magnetic Stirrer | Multi-Position Lab Stirrer

The AELAB MS-T-S15 15-Position Magnetic Stirrer is designed for laboratories requiring synchronized or independent stirring across multiple samples. Its brushless motor ensures quiet performance, low maintenance, and long service life. The durable Aluminum work plate provides chemical resistance and stable operation in analytical and educational environments.

The MS-T-S15 enables high-speed, uniform mixing for large sample loads. Strong internal magnets, LCD digital control, and a robust mechanical structure deliver reliable performance for research, industrial workflows, and multi-position sample preparation tasks.

⚙️ Design & Construction

The AELAB MS-T-S15 features a rigid Aluminum work plate engineered for abrasion resistance, corrosion protection, and stable vessel placement. Its internal magnetic system uses strong permanent magnets to generate uniform rotating magnetic fields. The brushless DC motor provides efficient torque output with minimal noise and extended lifecycle. The front-mounted LCD screen displays speed, time, and group settings for clear operator feedback.

🔬 Working Principle / Testing Method

The MS-T-S15 operates by generating controlled rotating magnetic fields beneath each stirring position. Stir bars inside the vessels follow this rotation, producing consistent agitation at programmable speeds from 100 rpm to 1500 rpm. The 15 stirring points are divided into three independently adjustable groups, allowing different speeds and timer values within the same experiment. The integrated timer ranges from 1 minute to 99 hours 59 minutes, supporting long-duration mixing protocols. A buzzer alerts the operator when the countdown finishes.

💡 Key Advantages

• Three independently regulated stirring groups for flexible workflow control
• Brushless motor delivering stable torque and reduced maintenance
• High accuracy speed control (±10 rpm) for reproducible sample preparation
• Robust IP21 protection suitable for routine laboratory environments
• Chemical-resistant Aluminum plate optimized for long operational life
• Wide 100–240 V universal power supply for global laboratory compatibility
• LCD display providing clear visualization of speed, timing, and group status

🔗 Connectivity & Integration

The MS-T-S15 is designed as a standalone digital stirring platform. Its front control panel ensures fast parameter adjustment, timer configuration, and monitoring. The platform integrates seamlessly into GLP-compliant workflows due to its stable performance, traceable control settings, and reproducible speed accuracy.

🧠 Model Insight

🧪 Testing Applications

The AELAB MS-T-S15 supports high-throughput mixing workflows in:

• Chemical solution preparation
• Biotechnology and pharmaceutical sample agitation
• Food and beverage quality analysis
• Environmental laboratory testing
• Academic and teaching laboratories
• Parallel experiments and multi-sample optimization studies

Compliance & Quality Assurance

The MS-T-S15 is manufactured under AELAB quality protocols, ensuring reliable performance, electrical safety, and compliance with global ISO and CE laboratory equipment standards.
