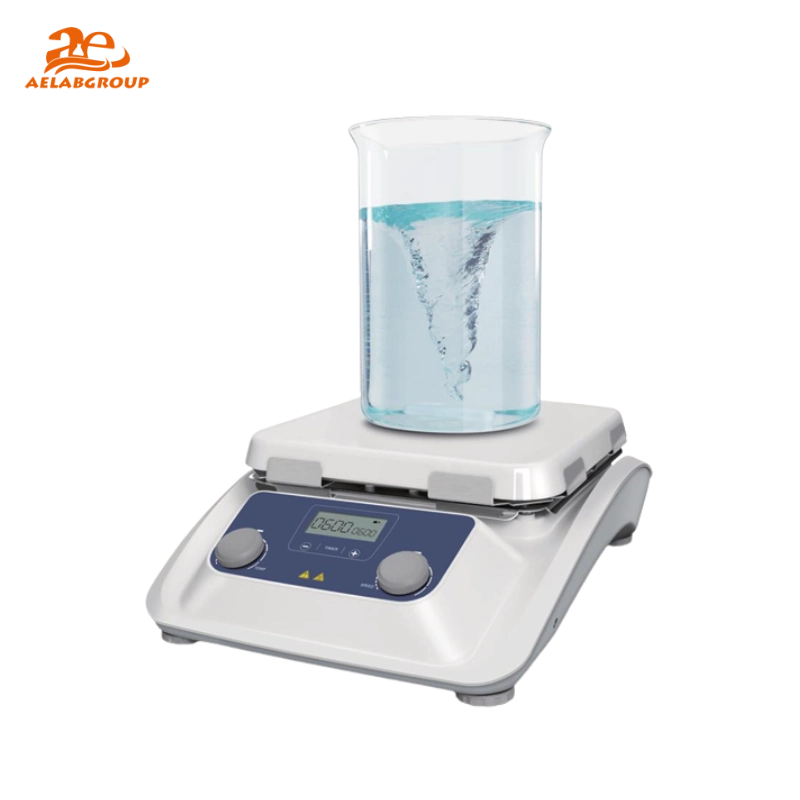

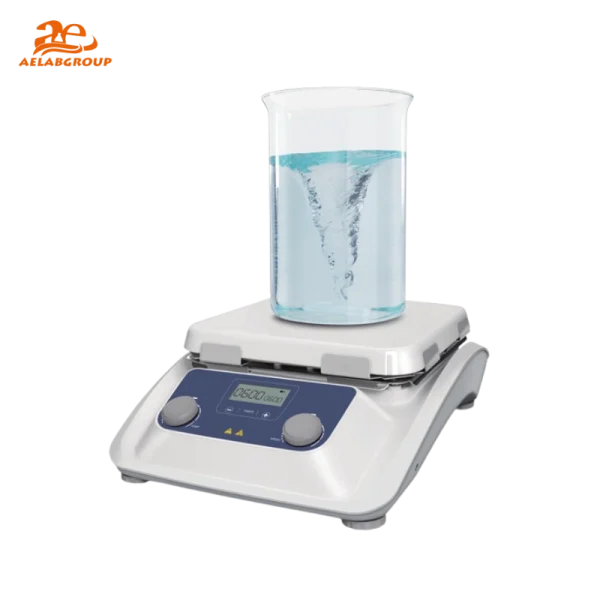

The AELAB MS10-H500-Pro LCD Digital Magnetic Hotplate Stirrer is a high-capacity laboratory mixer engineered for demanding research, industrial, and QC environments. Its 10-inch glass ceramic work plate provides chemical resistance and efficient heat transfer, supporting up to 30 L mixing applications.
The system integrates a brushless DC motor and advanced LCD digital control for precise speed and temperature management. External sensor input via PT1000 ensures accurate sample-level temperature regulation, while the SD card interface enables real-time data logging.
The AELAB MS10-H500-Pro features a 254 × 254 mm glass ceramic work plate engineered for high chemical durability and uniform heat distribution. The brushless DC motor ensures stable torque, quiet operation, and extended service life. A clear LCD interface displays real-time stirring speed, heating status, and sensor-derived sample temperature. The IP20-rated housing provides robust protection for laboratory environments.
The instrument rotates a magnetic stir bar using a controlled brushless DC motor, producing smooth vortex formation across a 30 L volume. Heating is regulated through high-accuracy digital controllers and an integrated temperature feedback system. When connected, the PT1000 probe measures sample temperature with ±0.2 °C accuracy, enabling closed-loop external control up to 500 °C.
The MS10-H500-Pro supports SD-card data export for long-term performance recording. Temperature measurements may be controlled using the PT1000 external probe, enabling high-precision sample regulation. Compatible with standard laboratory software workflows and GLP documentation protocols.
| Model | Key Specifications |
|---|---|
| MS10-H500-Pro | 10-inch plate, 30 L stirring, 100–1500 rpm, 500 °C heating, SD-card data logging |
| MS7-H550-Pro | 7-inch plate, 20 L stirring, 100–1500 rpm, 550 °C heating, RS232 connectivity |
| MS7-H550-S | 7-inch plate, 10 L stirring, 0–1500 rpm, 550 °C heating, compact design |
The AELAB MS10-H500-Pro is suitable for chemical synthesis, pharmaceutical sample preparation, food and beverage testing, environmental analysis, academic research, biotechnology workflows, and general laboratory heating and stirring operations.
The MS10-H500-Pro is manufactured under strict AELAB quality protocols, featuring CE-compliant safety electronics, integrated overheating protection, and traceable calibration for speed and temperature accuracy.
Specifications :
| Specifications | MS10-H500-Pro | MS7-H550-Pro | MS7-H550-S |
|---|---|---|---|
| Work plate Dimension (W x D) | 254×254mm (10 inch) | 184×184mm (7 inch) | 184×184mm (7 inch) |
| Work plate material | Glass ceramic | Glass ceramic | Glass ceramic |
| Motor type | Brushless DC motor | Brushless DC motor | Shaded pole motor |
| Stirring positions | 1 | 1 | 1 |
| Max. stirring quantity, [H₂O] | 30L | 20L | 10L |
| Max. magnetic bar length | 80mm | 80mm | 80mm |
| Speed range | 100–1500rpm, resolution ±1rpm | 100–1500rpm, resolution ±1rpm | 0–1500rpm |
| Speed display | LCD | LCD | Scale |
| Temperature display | LCD | LCD | LED |
| Heating temperature range | Room Temp.–500°C, increment 1°C | Room Temp.–550°C, increment 1°C | Room Temp.–550°C, increment 5°C |
| Temperature control accuracy | ±1°C(<100°C) ±1%(>100°C) | ±1°C(<100°C) ±1%(>100°C) | ±10°C |
| Overheating protection | 540°C | 580°C | 580°C |
| Temperature display accuracy | ±0.1°C | ±0.1°C | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) |
| "Hot" warning | 50°C | 50°C | 50°C |
| Data connector | SD card | RS232 | – |
| Protection class | IP20 | IP21 | IP21 |
| Motor rating output | 10W | 10W | 1.5W |
| Power | 1700W | 1050W | 1030W |
| Heating output | 1500W | 1000W | 1000W |
| Voltage, Frequency | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz |
| Dimension (W×D×H) | 328×424×138mm | 215×360×112mm | 215×360×112mm |
| Weight | 7.2kg | 5.3kg | 4.5kg |
| Timer function | 1min–99h59min | – | – |
| Permissible ambient temperature and humidity | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH |
| Specifications | MS10-H500-Pro | MS7-H550-Pro | MS7-H550-S |
|---|---|---|---|
| Work plate Dimension (W x D) | 254×254mm (10 inch) | 184×184mm (7 inch) | 184×184mm (7 inch) |
| Work plate material | Glass ceramic | Glass ceramic | Glass ceramic |
| Motor type | Brushless DC motor | Brushless DC motor | Shaded pole motor |
| Stirring positions | 1 | 1 | 1 |
| Max. stirring quantity, [H₂O] | 30L | 20L | 10L |
| Max. magnetic bar length | 80mm | 80mm | 80mm |
| Speed range | 100–1500rpm, resolution ±1rpm | 100–1500rpm, resolution ±1rpm | 0–1500rpm |
| Speed display | LCD | LCD | Scale |
| Temperature display | LCD | LCD | LED |
| Heating temperature range | Room Temp.–500°C, increment 1°C | Room Temp.–550°C, increment 1°C | Room Temp.–550°C, increment 5°C |
| Temperature control accuracy | ±1°C(<100°C) ±1%(>100°C) | ±1°C(<100°C) ±1%(>100°C) | ±10°C |
| Overheating protection | 540°C | 580°C | 580°C |
| Temperature display accuracy | ±0.1°C | ±0.1°C | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) |
| "Hot" warning | 50°C | 50°C | 50°C |
| Data connector | SD card | RS232 | – |
| Protection class | IP20 | IP21 | IP21 |
| Motor rating output | 10W | 10W | 1.5W |
| Power | 1700W | 1050W | 1030W |
| Heating output | 1500W | 1000W | 1000W |
| Voltage, Frequency | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz |
| Dimension (W×D×H) | 328×424×138mm | 215×360×112mm | 215×360×112mm |
| Weight | 7.2kg | 5.3kg | 4.5kg |
| Timer function | 1min–99h59min | – | – |
| Permissible ambient temperature and humidity | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH |
