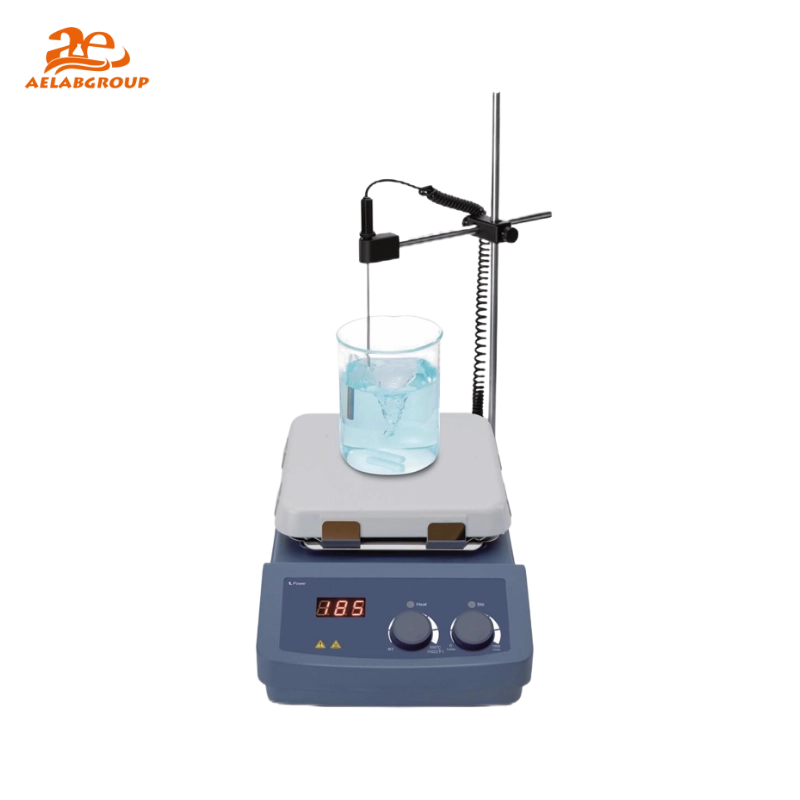

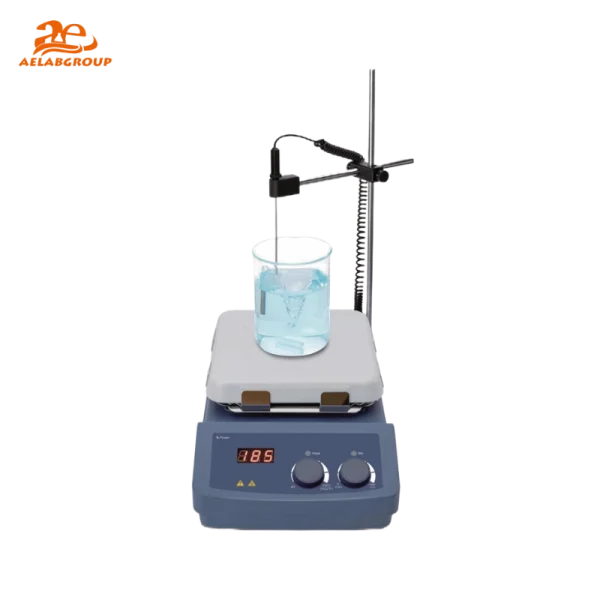

The AELAB MS7-H550-S LED Magnetic Hotplate Stirrer is engineered for routine laboratory mixing and controlled heating tasks, providing a stable and reliable platform for research, quality control, and educational use. The 7-inch glass ceramic work plate ensures excellent chemical resistance and uniform heat distribution for consistent performance.
Designed for daily laboratory workflows, the MS7-H550-S supports heating up to 550°C and stirring up to 1500 rpm using a durable shaded-pole motor. The LED temperature display enables clear, real-time monitoring, while the integrated safety features ensure dependable operation during demanding applications.
The AELAB MS7-H550-S features a 184×184 mm Glass Ceramic work plate with strong chemical resistance suitable for corrosive media. A shaded-pole motor drives the magnetic field to maintain stable stirring up to 1500 rpm. The compact 215×360×112 mm frame ensures efficient benchtop integration while the IP21 protection class supports reliable daily operation.
The instrument rotates a magnetic field beneath the ceramic plate, driving a magnetic stir bar inside the sample vessel. Heating is controlled through an integrated system capable of regulated heating from Room Temperature to 550°C in 5°C increments. The LED display provides temperature monitoring, and an external PT1000 sensor (accuracy ±0.2°C) may be used for precise liquid-phase control. Overheat protection activates at 580°C to safeguard both operator and sample.
The MS7-H550-S is a simplified LED model without data connectivity ports, ensuring straightforward operation. It supports external PT1000 temperature input for closed-loop control. Higher models in the series (MS7-H550-Pro) include RS232 for GLP/PC data integration.
| Model | Specifications |
|---|---|
| MS7-H550-S | 184×184 mm plate, 0–1500 rpm, Room Temp.-550°C, LED display, 4.5 kg |
| MS7-H550-Pro | 184×184 mm plate, 100–1500 rpm, Room Temp.-550°C, LCD display, RS232, 5.3 kg |
| MS10-H500-Pro | 254×254 mm plate, 100–1500 rpm, Room Temp.-500°C, LCD, 30 L capacity, 7.2 kg |
The AELAB MS7-H550-S supports chemical dissolution, reagent preparation, buffer mixing, titration pre-mixing, digestion workflows, environmental sample heating, and academic research experiments across chemical, pharmaceutical, food, and material laboratories.
The instrument is manufactured under ISO-aligned quality protocols, incorporates GLP-oriented temperature monitoring, and includes factory calibration traceability to ensure consistent performance and operational reliability.
Specifications :
| Specifications | MS10-H500-Pro | MS7-H550-Pro | MS7-H550-S |
|---|---|---|---|
| Work plate Dimension (W × D) | 254×254mm (10 inch) | 184×184mm (7 inch) | 184×184mm (7 inch) |
| Work plate material | Glass ceramic | Glass ceramic | Glass ceramic |
| Motor type | Brushless DC motor | Brushless DC motor | Shaded pole motor |
| Stirring positions | 1 | 1 | 1 |
| Max. stirring quantity, [H₂O] | 30L | 20L | 10L |
| Max. magnetic bar length | 80mm | 80mm | 80mm |
| Speed range | 100–1500rpm, resolution ±1rpm | 100–1500rpm, resolution ±1rpm | 0–1500rpm |
| Speed display | LCD | LCD | Scale |
| Temperature display | LCD | LCD | LED |
| Heating temperature range | Room Temp.–500°C, increment 1°C | Room Temp.–550°C, increment 1°C | Room Temp.–550°C, increment 5°C |
| Temperature control accuracy | ±1°C(<100°C) ±1% (>100°C) | ±1°C(<100°C) ±1% (>100°C) | ±10°C |
| Overheating protection | 540°C | 580°C | 580°C |
| Temperature display accuracy | ±0.1°C | ±0.1°C | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) |
| “Hot” warning | 50°C | 50°C | 50°C |
| Data connector | SD card | RS232 | – |
| Protection class | IP20 | IP21 | IP21 |
| Motor rating output | 10W | 10W | 1.5W |
| Power | 1700W | 1050W | 1030W |
| Heating output | 1500W | 1000W | 1000W |
| Voltage, Frequency | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz |
| Dimension (W×D×H) | 328×424×138mm | 215×360×112mm | 215×360×112mm |
| Weight | 7.2kg | 5.3kg | 4.5kg |
| Timer function | 1min–9h59min | – | – |
| Permissible ambient temperature and humidity | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH |
| Specifications | MS10-H500-Pro | MS7-H550-Pro | MS7-H550-S |
|---|---|---|---|
| Work plate Dimension (W × D) | 254×254mm (10 inch) | 184×184mm (7 inch) | 184×184mm (7 inch) |
| Work plate material | Glass ceramic | Glass ceramic | Glass ceramic |
| Motor type | Brushless DC motor | Brushless DC motor | Shaded pole motor |
| Stirring positions | 1 | 1 | 1 |
| Max. stirring quantity, [H₂O] | 30L | 20L | 10L |
| Max. magnetic bar length | 80mm | 80mm | 80mm |
| Speed range | 100–1500rpm, resolution ±1rpm | 100–1500rpm, resolution ±1rpm | 0–1500rpm |
| Speed display | LCD | LCD | Scale |
| Temperature display | LCD | LCD | LED |
| Heating temperature range | Room Temp.–500°C, increment 1°C | Room Temp.–550°C, increment 1°C | Room Temp.–550°C, increment 5°C |
| Temperature control accuracy | ±1°C(<100°C) ±1% (>100°C) | ±1°C(<100°C) ±1% (>100°C) | ±10°C |
| Overheating protection | 540°C | 580°C | 580°C |
| Temperature display accuracy | ±0.1°C | ±0.1°C | ±1°C |
| External temperature sensor | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) | PT1000 (accuracy ±0.2°C) |
| “Hot” warning | 50°C | 50°C | 50°C |
| Data connector | SD card | RS232 | – |
| Protection class | IP20 | IP21 | IP21 |
| Motor rating output | 10W | 10W | 1.5W |
| Power | 1700W | 1050W | 1030W |
| Heating output | 1500W | 1000W | 1000W |
| Voltage, Frequency | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz | 100–120/200–240V, 50/60Hz |
| Dimension (W×D×H) | 328×424×138mm | 215×360×112mm | 215×360×112mm |
| Weight | 7.2kg | 5.3kg | 4.5kg |
| Timer function | 1min–9h59min | – | – |
| Permissible ambient temperature and humidity | 5–40°C, 80%RH | 5–40°C, 80%RH | 5–40°C, 80%RH |
