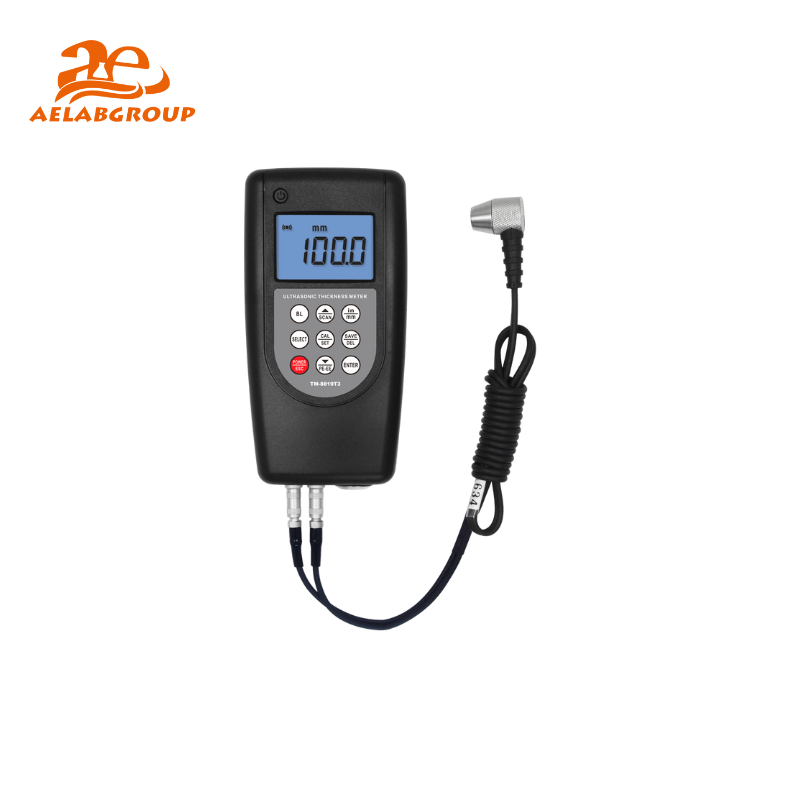

The TM-8819-T3 Multi-Mode Ultrasonic Thickness Gauge is designed for measuring the thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, and more. It is widely used in industries such as petroleum, shipbuilding, power stations, and machinery manufacturing. This versatile gauge provides accurate and reliable measurements to assess the condition and integrity of critical components in a variety of industrial applications.
Features
Specifications :
| Unit System | Metric system or British system (optional) |
| Display | LCD with backlight |
| Range | Pulse-Echo mode: (1.0~300)mm (in Steel) |
| Echo-Echo mode: (3~30)mm | |
| Resolution | 0.1mm / 0.01mm / 0.001inch |
| Accuracy | ±(0.5%n + 0.05mm), depends on materials and conditions |
| Measurement Period | 4 times per second for single point mode and 10 times per second for scan mode |
| Sound Velocity | 1000m/s~9999 m/s |
| Memory for up to 20 files(99 values for each file)of stored values | |
| Working Mode | There are two working modes of thickness measurement: single mode and scan mode |
| Operating Conditions | Temperature:0~40ºC Humidity:<85%RH |
| Power Supply | 4x1.5V AAA(UM-4)Battery |
| Dimensions | 142mmx72mmx34mm |
| Weight | 175g(Not Including Batteries) |
| Standard Accessories | Main Unit |
| Standard Probe | |
| Coupling Agent | |
| Carrying Case(B04) | |
| Operation Manual | |
| Optional Accessories | Other Special-purpose Probe |
| RS-232C Data Cable with Software | |
| Bluetooth Data Adapter with Software | |
| Unit System | Metric system or British system (optional) |
| Display | LCD with backlight |
| Range | Pulse-Echo mode: (1.0~300)mm (in Steel) |
| Echo-Echo mode: (3~30)mm | |
| Resolution | 0.1mm / 0.01mm / 0.001inch |
| Accuracy | ±(0.5%n + 0.05mm), depends on materials and conditions |
| Measurement Period | 4 times per second for single point mode and 10 times per second for scan mode |
| Sound Velocity | 1000m/s~9999 m/s |
| Memory for up to 20 files(99 values for each file)of stored values | |
| Working Mode | There are two working modes of thickness measurement: single mode and scan mode |
| Operating Conditions | Temperature:0~40ºC Humidity:<85%RH |
| Power Supply | 4x1.5V AAA(UM-4)Battery |
| Dimensions | 142mmx72mmx34mm |
| Weight | 175g(Not Including Batteries) |
| Standard Accessories | Main Unit |
| Standard Probe | |
| Coupling Agent | |
| Carrying Case(B04) | |
| Operation Manual | |
| Optional Accessories | Other Special-purpose Probe |
| RS-232C Data Cable with Software | |
| Bluetooth Data Adapter with Software | |
