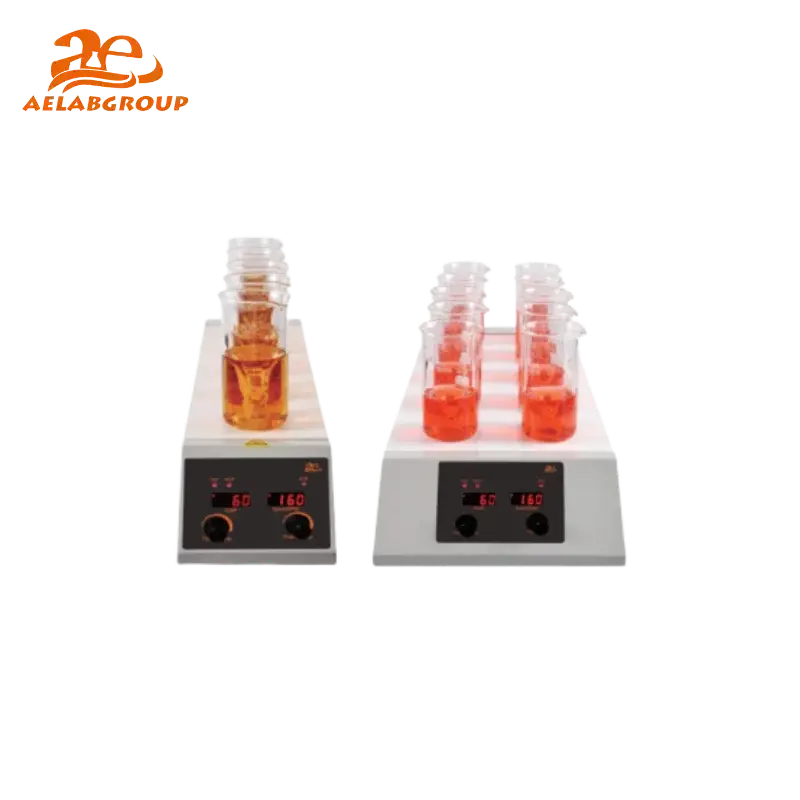

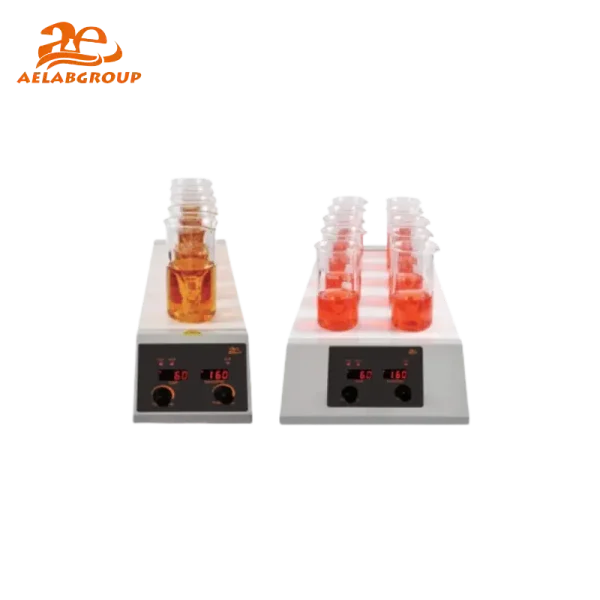

The AELAB Multi-Position Stirrer Hotplate AE-HS120-5 Series is a versatile lab instrument that allows efficient heating and stirring of multiple samples. With varying configurations and advanced features, it’s designed to meet the demands of high-throughput labs, offering precision and reliability.
A multi-position stirrer hotplate is a lab instrument designed to simultaneously heat and stir multiple samples. It features multiple independent stirring and heating positions, allowing for efficient, concurrent processing of several samples, ideal for high-throughput laboratory applications and complex experiments.
The AELAB Multi-Position Stirrer Hotplate operates by independently controlling both heating and stirring for each sample position. With precise speed and temperature control, users can optimize their processes by managing multiple samples simultaneously. The ceramic-coated surface ensures excellent heat transfer, while the stirring mechanism is powered by a durable brushless DC motor for consistent performance across all positions.
Multi-Sample Processing: Efficiently heat and stir multiple samples at the same time.
Precision & Control: Speed control in 1 rpm increments and precise temperature regulation up to 120°C.
Durability: Chemical-resistant and robust construction, built for long-term lab use.
Flexible Configurations: Choose from models with 5 or 10 stirring positions to match your lab’s needs.
User Safety: LED hot warning indicator for safe operation.
AE-HS120-5: Ideal for smaller labs or educational institutions where simultaneous sample processing is required.
AE-HS120-10: Suitable for high-throughput research labs that need to handle larger volumes or multiple experiments.
AE-S120 Series: Perfect for high-capacity stirring needs, such as chemical or biochemical processing, where larger volumes (up to 150L) are necessary.
Research Centers: Simultaneous heating and stirring for efficient analysis.
Educational Labs: Great for teaching environments requiring high-efficiency, multiple-sample setups.
Quality Control (QC): Consistent performance for high-volume testing and sample analysis.
Pharmaceutical and Chemical Labs: Reliable for sensitive and chemical-resistant applications.

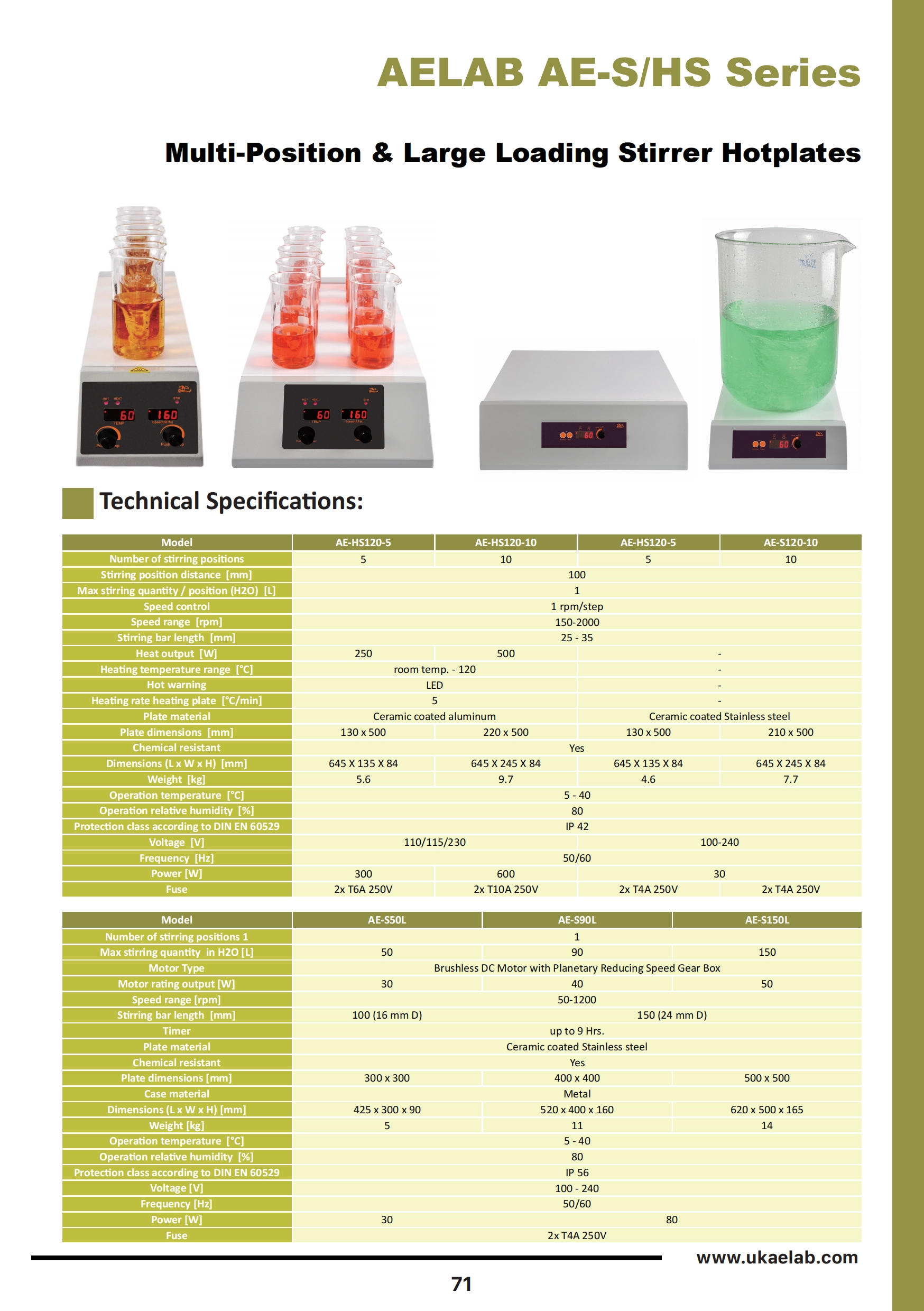

Specifications :
| Model | AE-HS120-5 | AE-HS120-10 | AE-S120-5 | AE-S120-10 |
| Number of stirring positions | 5 | 10 | 5 | 10 |
| Stirring position distance [mm] | 100 | 100 | 100 | 100 |
| Max stirring quantity / position (H2O) [L] | 1.0 | 1.0 | 1.0 | 1.0 |
| Speed control | 1 rpm/step | 1 rpm/step | 1 rpm/step | 1 rpm/step |
| Speed range [rpm] | 150-2000 | 150-2000 | 150-2000 | 150-2000 |
| Stirring bar length [mm] | 25 - 35 | 25 - 35 | 25 - 35 | 25 - 35 |
| Heat output [W] | 250 | 500 | - | - |
| Heating temperature range [°C] | room temp. - 120 | room temp. - 120 | - | - |
| Hot warning | LED | LED | - | - |
| Heating rate heating plate [°C/min] | 5 | 5 | - | - |
| Plate material | Ceramic coated aluminum | Ceramic coated Stainless steel | ||
| Plate dimensions [mm] | 130 x 500 | 220 x 500 | 130 x 500 | 210 x 500 |
| Chemical resistant | Yes | Yes | Yes | Yes |
| Dimensions (L x W x H) [mm] | 645 X 135 X 84 | 645 X 245 X 84 | 645 X 135 X 84 | 645 X 245 X 84 |
| Weight [kg] | 5.6 | 9.7 | 4.6 | 7.7 |
| Operation temperature [°C] | 5 - 40 | 5 - 40 | 5 - 40 | 5 - 40 |
| Operation relative humidity [%] | 80 | 80 | 80 | 80 |
| Protection class according to DIN EN 60529 | IP 42 | IP 42 | IP 42 | IP 42 |
| Voltage [V] | 110/115/230 | 110/115/230 | 100-240 | 100-240 |
| Frequency [Hz] | 50/60 | 50/60 | 50/60 | 50/60 |
| Power [W] | 300 | 600 | 30 | 30 |
| Fuse | 2x T6A 250V | 2x T10A 250V | 2x T4A 250V | 2x T4A 250V |
| Model | AE-S50L | AE-S90L | AE-S150L |
| Number of stirring positions 1 | 1 | 1 | 1 |
| Max stirring quantity in H2O [L] | 50 | 90 | 150 |
| Motor Type | Brushless DC Motor with Planetary Reducing Speed Gear Box | ||
| Motor rating output [W] | 30 | 40 | 50 |
| Speed range [rpm] | 50-1200 | 50-1200 | 50-1200 |
| Stirring bar length max. [mm] | 100 (16 mm D) | 150 (24 mm D) | 150 (24 mm D) |
| Timer | up to 9 Hrs. | up to 9 Hrs | up to 9 Hrs. |
| Plate material | Ceramic coated Stainless steel | ||
| Chemical resistant | Yes | Yes | Yes |
| Plate dimensions [mm] | 300 x 300 | 400 x 400 | 500 x 500 |
| Case material | Metal | Metal | Metal |
| Dimensions (L x W x H) [mm] | 425 x 300 x 90 | 520 x 400 x 160 | 620 x 500 x 165 |
| Weight [kg] | 5 | 11 | 14 |
| Operation temperature [°C] | 5 - 40 | 5 - 40 | 5 - 40 |
| Operation relative humidity [%] | 80 | 80 | 80 |
| Protection class according to
DIN EN 60529 |
IP 56 | IP 56 | IP 56 |
| Voltage [V] | 100 - 240 | 100 - 240 | 100 - 240 |
| Frequency [Hz] | 50/60 | 50/60 | 50/60 |
| Power [W] | 30 | 80 | 80 |
| Fuse | 2x T4A 250V | 2x T4A 250V | 2x T4A 250V |
| Model | AE-HS120-5 | AE-HS120-10 | AE-S120-5 | AE-S120-10 |
| Number of stirring positions | 5 | 10 | 5 | 10 |
| Stirring position distance [mm] | 100 | 100 | 100 | 100 |
| Max stirring quantity / position (H2O) [L] | 1.0 | 1.0 | 1.0 | 1.0 |
| Speed control | 1 rpm/step | 1 rpm/step | 1 rpm/step | 1 rpm/step |
| Speed range [rpm] | 150-2000 | 150-2000 | 150-2000 | 150-2000 |
| Stirring bar length [mm] | 25 - 35 | 25 - 35 | 25 - 35 | 25 - 35 |
| Heat output [W] | 250 | 500 | - | - |
| Heating temperature range [°C] | room temp. - 120 | room temp. - 120 | - | - |
| Hot warning | LED | LED | - | - |
| Heating rate heating plate [°C/min] | 5 | 5 | - | - |
| Plate material | Ceramic coated aluminum | Ceramic coated Stainless steel | ||
| Plate dimensions [mm] | 130 x 500 | 220 x 500 | 130 x 500 | 210 x 500 |
| Chemical resistant | Yes | Yes | Yes | Yes |
| Dimensions (L x W x H) [mm] | 645 X 135 X 84 | 645 X 245 X 84 | 645 X 135 X 84 | 645 X 245 X 84 |
| Weight [kg] | 5.6 | 9.7 | 4.6 | 7.7 |
| Operation temperature [°C] | 5 - 40 | 5 - 40 | 5 - 40 | 5 - 40 |
| Operation relative humidity [%] | 80 | 80 | 80 | 80 |
| Protection class according to DIN EN 60529 | IP 42 | IP 42 | IP 42 | IP 42 |
| Voltage [V] | 110/115/230 | 110/115/230 | 100-240 | 100-240 |
| Frequency [Hz] | 50/60 | 50/60 | 50/60 | 50/60 |
| Power [W] | 300 | 600 | 30 | 30 |
| Fuse | 2x T6A 250V | 2x T10A 250V | 2x T4A 250V | 2x T4A 250V |
| Model | AE-S50L | AE-S90L | AE-S150L |
| Number of stirring positions 1 | 1 | 1 | 1 |
| Max stirring quantity in H2O [L] | 50 | 90 | 150 |
| Motor Type | Brushless DC Motor with Planetary Reducing Speed Gear Box | ||
| Motor rating output [W] | 30 | 40 | 50 |
| Speed range [rpm] | 50-1200 | 50-1200 | 50-1200 |
| Stirring bar length max. [mm] | 100 (16 mm D) | 150 (24 mm D) | 150 (24 mm D) |
| Timer | up to 9 Hrs. | up to 9 Hrs | up to 9 Hrs. |
| Plate material | Ceramic coated Stainless steel | ||
| Chemical resistant | Yes | Yes | Yes |
| Plate dimensions [mm] | 300 x 300 | 400 x 400 | 500 x 500 |
| Case material | Metal | Metal | Metal |
| Dimensions (L x W x H) [mm] | 425 x 300 x 90 | 520 x 400 x 160 | 620 x 500 x 165 |
| Weight [kg] | 5 | 11 | 14 |
| Operation temperature [°C] | 5 - 40 | 5 - 40 | 5 - 40 |
| Operation relative humidity [%] | 80 | 80 | 80 |
| Protection class according to
DIN EN 60529 |
IP 56 | IP 56 | IP 56 |
| Voltage [V] | 100 - 240 | 100 - 240 | 100 - 240 |
| Frequency [Hz] | 50/60 | 50/60 | 50/60 |
| Power [W] | 30 | 80 | 80 |
| Fuse | 2x T4A 250V | 2x T4A 250V | 2x T4A 250V |
