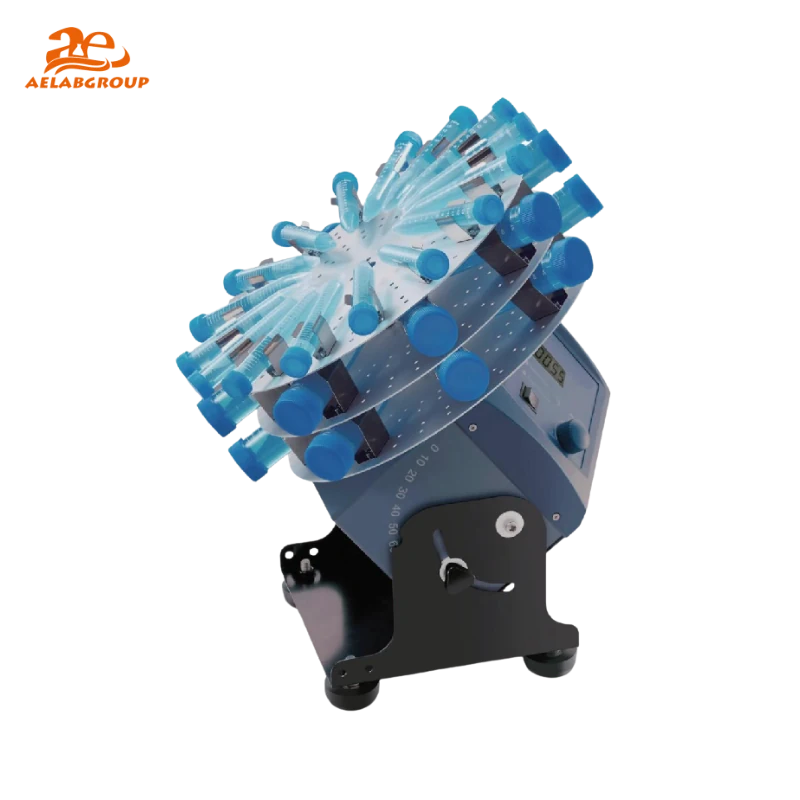

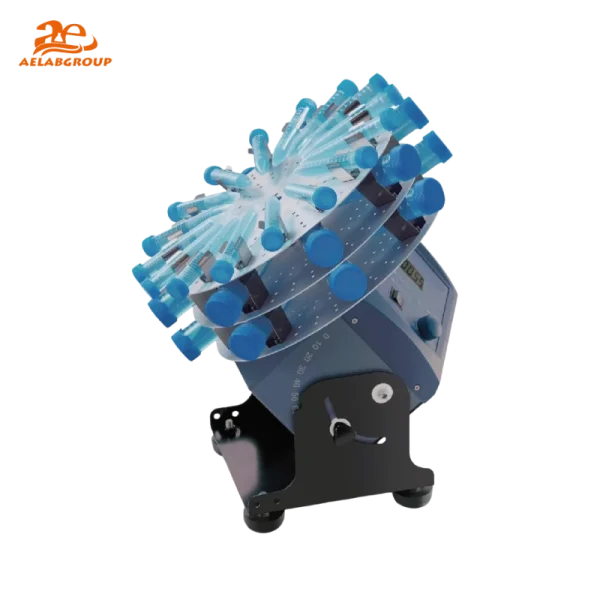

The AELAB MX-RD-Pro LCD Digital Tube Rotator is a high-performance laboratory mixing instrument designed for gentle, efficient, and continuous rotation of biological samples. Equipped with an LCD display, adjustable speed, and brushless motor technology, it delivers precision and reliability for modern research and clinical laboratories.
The MX-RD-Pro Tube Rotator uses a smooth circular rotating motion to gently mix samples without foaming or damaging their structure. By adjusting the tilt angle up to 90°, users can optimize mixing efficiency for various sample volumes. The brushless DC motor ensures consistent torque, low noise, and extended operational life, making it ideal for continuous laboratory workflows.

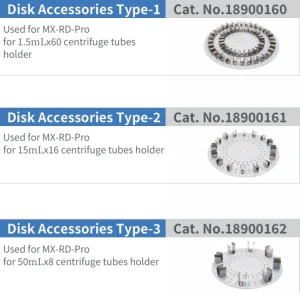

The AELAB MX-RD-Pro features a stable, ergonomic frame designed to support continuous operation. Its brushless DC motor provides reliable torque output with minimal maintenance requirements. The LCD panel clearly displays speed and timer settings, ensuring full visibility during operation. The rotator accommodates multiple accessory disk types for 1.5mL, 15mL, and 50mL centrifuge tubes, supporting a wide range of experimental setups.
The MX-RD-Pro operates using a circular rotation mechanism optimized for gentle yet effective sample agitation. Users can select a rotation speed between 10–70 rpm and set a timer up to 1199 minutes. The 0–90° adjustable tilt angle enhances mixing efficiency by varying the gravitational and rotational forces on the sample. The LCD interface provides continuous monitoring, enabling consistent and reproducible sample homogenization.
The MX-RD-Pro operates as a standalone benchtop mixer. Speed and timer settings are controlled directly from the onboard LCD interface. The stability and precision of the brushless motor make it suitable for GLP-compliant laboratory workflows, routine QC testing, and research applications requiring reproducible mixing results.
| Model | Specifications |
|---|---|
| MX-RD-Pro | 10–70 rpm speed range, 0–90° tilt angle, brushless DC motor, 280 × 210 × 300 mm |
The AELAB MX-RD-Pro is suitable for biochemical, molecular biology, and clinical workflows. Typical applications include immune precipitations, sample resuspension, latex diagnostics, blood coagulation prevention studies, incubation mixing, and routine processing of microtubes and centrifuge tubes (1.5mL–50mL).
The instrument is manufactured under strict AELAB quality control standards. It conforms to CE safety requirements, incorporates a protected IP21 housing, and is engineered for dependable operation in laboratories maintaining GLP-compliant practices.
Specifications :
| Specifications | MX-RD-Pro |
|---|---|
| Motor type | Brushless DC motor |
| Tilt angle | 0–90° |
| Speed range | 10–70 rpm |
| Speed display | LCD |
| Timer display | LCD |
| Timer | 1–1199 min |
| Operation mode | Continuous / timer |
| Voltage, Frequency | 100–240V, 50/60Hz |
| Power | 40W |
| Dimension (D×W×H) | 280 × 210 × 300 mm |
| Permissible ambient temperature and humidity | 5–40°C, 80%RH |
| Protection class | IP21 |
| Specifications | MX-RD-Pro |
|---|---|
| Motor type | Brushless DC motor |
| Tilt angle | 0–90° |
| Speed range | 10–70 rpm |
| Speed display | LCD |
| Timer display | LCD |
| Timer | 1–1199 min |
| Operation mode | Continuous / timer |
| Voltage, Frequency | 100–240V, 50/60Hz |
| Power | 40W |
| Dimension (D×W×H) | 280 × 210 × 300 mm |
| Permissible ambient temperature and humidity | 5–40°C, 80%RH |
| Protection class | IP21 |
