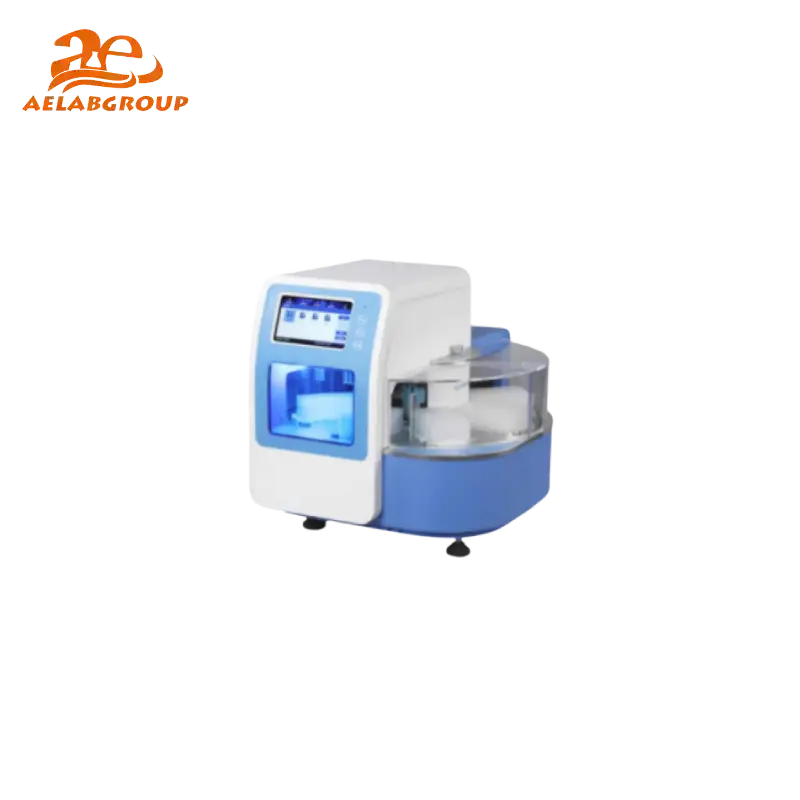

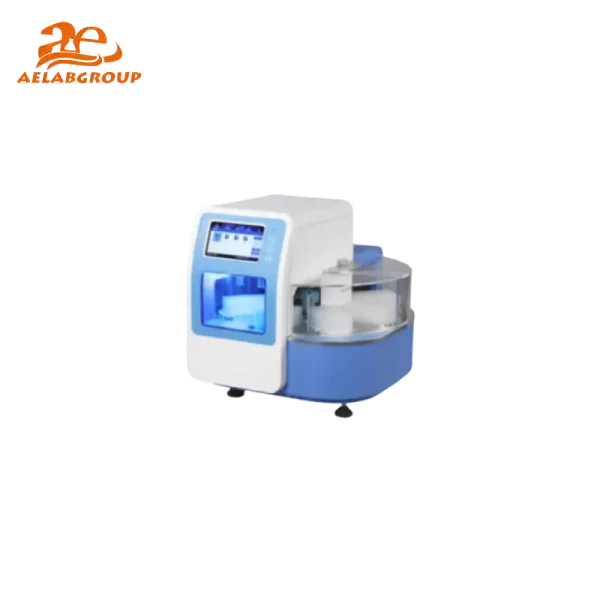

AELAB Nucleic Acid Purification System Auto-Pure 4800 | High Throughput, Efficient Extraction

Auto-Pure 4800 automatic nucleic acid extraction system is a 48-through-put automatic nucleic acid extraction instrument, based on the magnetic bead method to extract nucleic acids. During the purification process, the steps of pipetting, lysis, washing, elution, and PCR system set-up can be done automatically in the workstation. One-stop operation, without manual intervention, can extract 48 x 1mL samples at the same time, which is more efficient and convenient than manual and semi-automatic extraction. At the same time, standardized and automated operation steps avoid human error, the experimental results are more reliable and repeatable. 3pcs UV lamps sterilization and negative pressure filtration system effectively prevent cross-contamination. As an efficient smart workstation, Auto-Pure 4800 can bring you a better product experience.

Features:

* Fast & flexible experiment

1.Time for the extraction: 48 samples – 15 ~ 30 min (depending on different reagents)

Time for the pipette sample: 48 samples – 13 min

Time for PCR set-up: 48 samples – 10min

2.Bottled or prefilled reagents can be selected for extraction according to actual needs

3.Modular design of the work-table. And it can be customized for the layout of different forms

* High-precision liquid handling

1.1+2 pipettors combination can meet various needs of sample, extraction reagent and PCR reagent

2.The pipettor’s pressure detection technology cannot only detect the height of the liquid level, but also empty suction, residual liquid volume and blockage detection

3.Detailed pipetting parameter settings for different liquids can effectively improve the accuracy

* Effective cross-contamination prevention

1.Air displacement pipetting principle to avoid liquid contamination

2.Anti-hanging drop technology to avoid dropping contamination

3.Negative pressure filter system to prevent aerosol contamination

4.Full coverage UV sterilization, exhaustive to clean the work-table

* Easy-to-learn operating software

1.Graphical user interface, program editing can be completed without complicated operations

2.Built-in comprehensive libraries of consumable carriers, and liquids to reduce customer program matching time

3.Users can simply select according to their needs to complete the whole process of liquid handling,extraction, and PCR / qPCR set-up

* Open and reliable nucleic acid extraction system

1.Open software designing, it can be suitable for matching most of the magnetic-beads based on extraction reagents

2.Various magnetic absorption methods can effectively solve problems of residual magnetic beads

* Vortex magnetic beads and PCR reagent block

1. Specially designed for magnetic beads, the vortex is stable which improves the efficiency of the experiment
2. The PCR reagent block can be be pre-cooled in the refrigerator before working
3. The PCR reagent block can be customized according to customer needs

How It Works?

The AELAB Auto-Pure 4800 utilizes advanced magnetic bead technology to automate nucleic acid extraction. The system works by pipetting and handling samples and reagents, followed by efficient magnetic separation. The modular design allows easy integration of various reagents, enhancing flexibility. Air displacement pipetting ensures high accuracy and minimizes contamination, while full UV sterilization and a negative pressure filtration system prevent cross-contamination.

Advantages

• High Throughput: Extracts up to 48 samples simultaneously in 15-30 minutes.

• Accuracy & Reliability: Precise liquid handling and temperature control guarantee reproducible results.

• Flexible Setup: Modular worktable design and customizable reagents cater to diverse needs.

• Reduced Human Error: Automated process for consistent results with minimal manual intervention.

• Cross-Contamination Prevention: Multi-stage sterilization and filtration systems ensure clean, uncontaminated samples.

Recommended Models by Use Case

• High-Throughput Research Centers: The Auto-Pure 4800 is ideal for labs that require fast, efficient nucleic acid extraction with minimal manual labor.

• Clinical Laboratories: Suitable for diagnostic labs that require high reliability and automation in their workflows.

• Genomic Research: Perfect for labs working with large sample sizes or needing PCR setup automation alongside extraction.

Ideal For

• Educational Labs: Perfect for university or research institutes requiring efficient nucleic acid extraction.

• Pharmaceutical & Biotech Labs: Essential for labs involved in drug research, clinical trials, and genetic studies.

• QC Departments: For quality control labs testing biological samples in high volumes.
