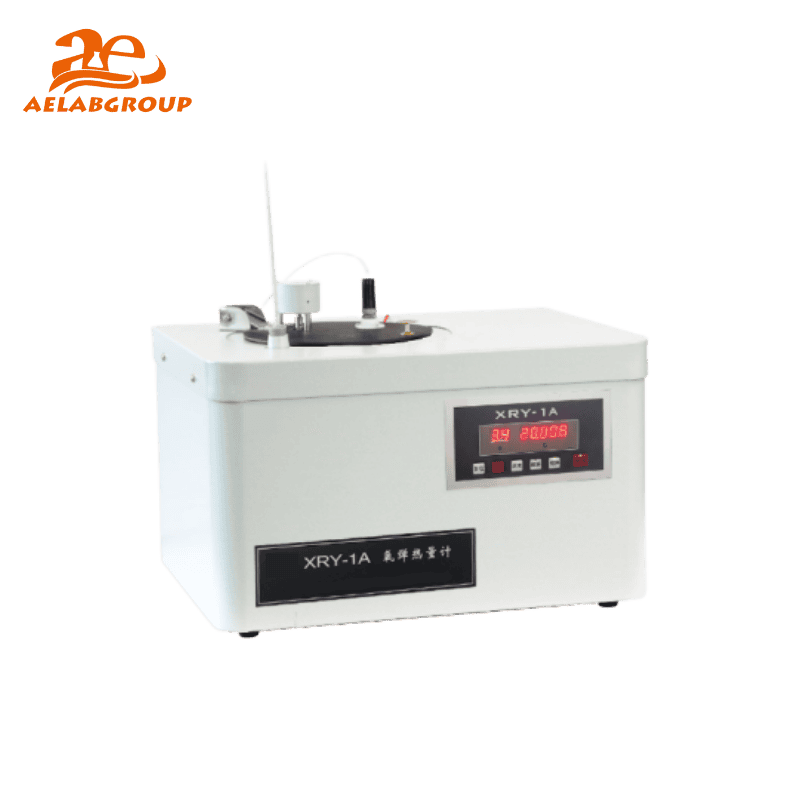

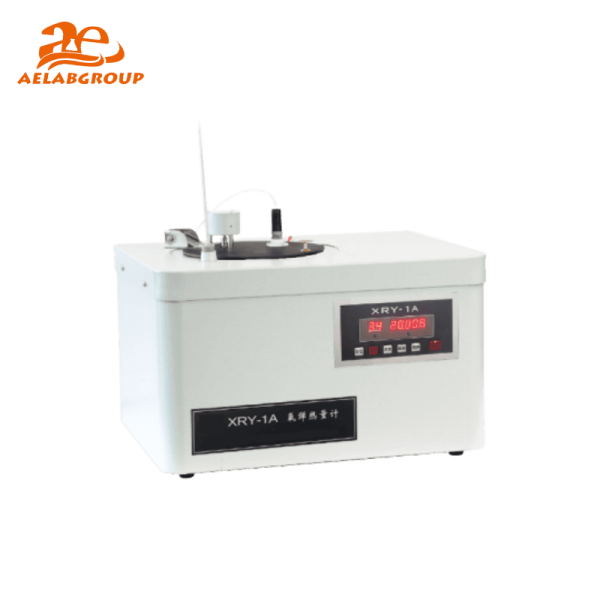

The AELAB Oxygen Bomb Calorimeter XRY-1A is engineered to meet the National Standards GB/T213-2008 and GB/T384-1988 for determining the calorific value of coal, petroleum products, and related materials. It also complies with JJG672-2001 and the Enterprise Standard of Shanghai Q/XYXY 10 XRY Series Oxygen Bomb Calorimeter. With a heat capacity of 14400 J/K ~ 15000 J/K, the XRY-1A ensures accurate and repeatable determination of fuel energy content for industrial and academic laboratories.
Suitable for testing coal, diesel oil, jet fuel, paraffin, and other combustible samples, the XRY-1A provides precise thermal value analysis without water interference. Its stainless-steel bomb design, high-pressure resistance, and automatic stirring system enable stable and reliable combustion testing under controlled conditions.
The instrument incorporates a fully sealed oxygen bomb structure made of corrosion-resistant Stainless Steel. The cross-section of the inner cylinder is pyriform with a 3 kg capacity, ensuring efficient heat transfer. The double-layer external water jacket and electric stirrer maintain temperature uniformity throughout the test cycle.
The XRY-1A measures the heat of combustion by burning the sample in an oxygen atmosphere within a sealed stainless-steel bomb. The released heat increases the water temperature in the surrounding jacket, which is recorded with a 0.001 K-resolution thermometer. The calorific value is computed using the system’s calibrated heat capacity and corrected for environmental factors.
The system includes a digital control unit with temperature monitoring, automatic stirring, and data storage capability. Results can be exported or logged via connected PC software for further thermal analysis and GLP documentation.
| Model | Specifications |
|---|---|
| XRY-1A | 14400 J/K ~ 15000 J/K heat capacity, 0.001 K resolution, 20 MPa oxygen bomb pressure, 600 × 460 × 430 mm dimension |
The AELAB XRY-1A Oxygen Bomb Calorimeter is widely used in laboratories for energy content analysis of coal, petroleum, biomass, chemical materials, and solid waste. Ideal for universities, power plants, cement factories, and research institutions performing thermal and fuel quality assessments.
All AELAB calorimeters conform to ISO 9001, CE, and GLP quality standards. Each instrument undergoes factory calibration traceable to national metrology institutes, ensuring repeatable and certified performance across all testing environments.

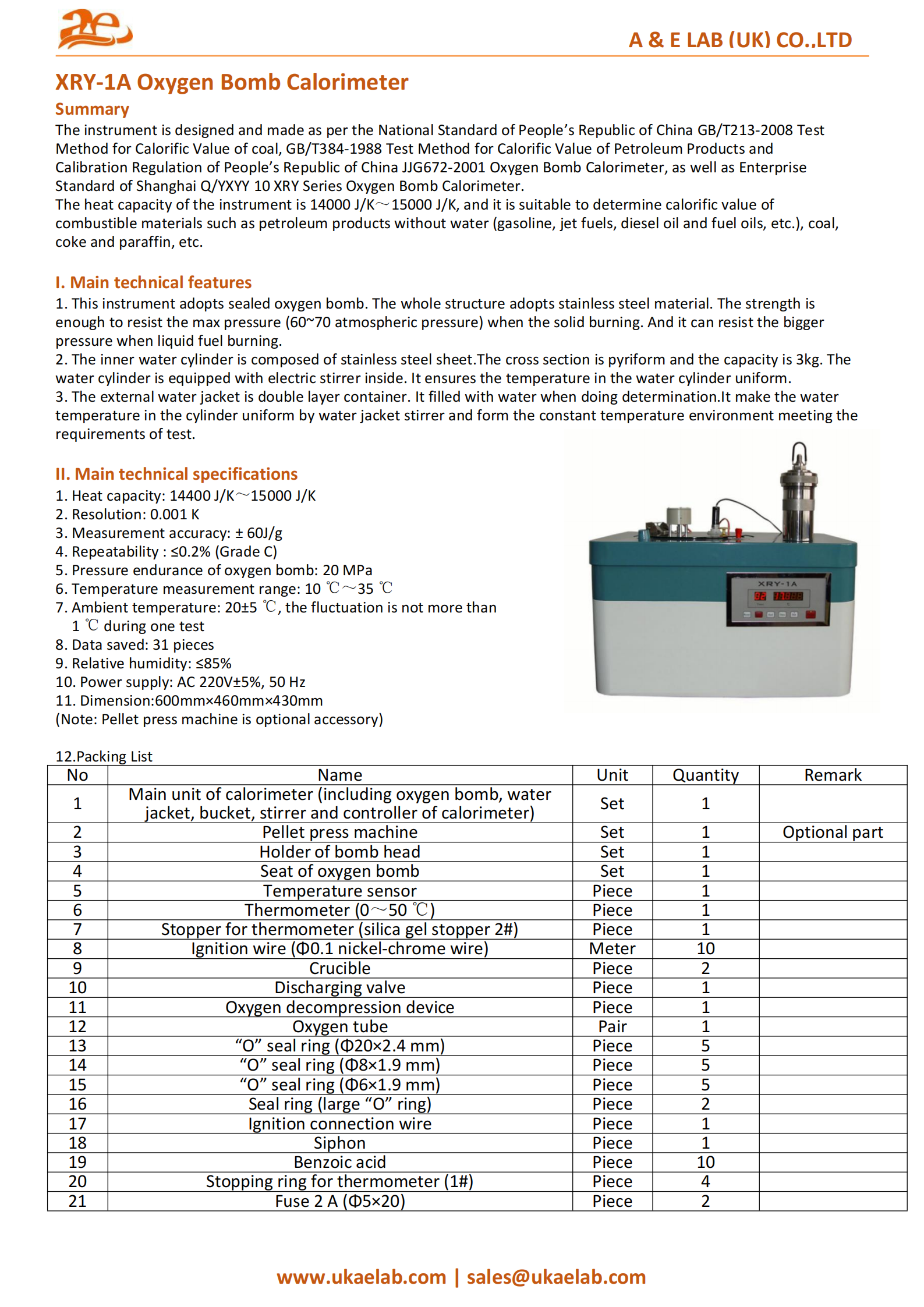

Specifications :
| No | Parameter | Specification |
|---|---|---|
| 1 | Heat Capacity | 14400 J/K ~ 15000 J/K |
| 2 | Resolution | 0.001 K |
| 3 | Measurement Accuracy | ± 60 J/g |
| 4 | Repeatability | ≤ 0.2 % (Grade C) |
| 5 | Pressure Endurance of Oxygen Bomb | 20 MPa |
| 6 | Temperature Measurement Range | 10 °C ~ 35 °C |
| 7 | Ambient Temperature | 20 ± 5 °C (fluctuation ≤ 1 °C) |
| 8 | Data Storage | 31 pieces |
| 9 | Relative Humidity | ≤ 85 % |
| 10 | Power Supply | AC 220 V ± 5 %, 50 Hz |
| 11 | Dimensions | 600 mm × 460 mm × 430 mm |
| No | Name | Unit | Quantity | Remark |
|---|---|---|---|---|
| 1 | Main unit of calorimeter (including oxygen bomb, water jacket, bucket, stirrer, and controller) | Set | 1 | |
| 2 | Pellet press machine | Set | 1 | Optional part |
| 3 | Holder of bomb head | Set | 1 | |
| 4 | Seat of oxygen bomb | Set | 1 | |
| 5 | Temperature sensor | Piece | 1 | |
| 6 | Thermometer (0 ~ 50 °C) | Piece | 1 | |
| 7 | Stopper for thermometer (silica gel stopper 2#) | Piece | 1 | |
| 8 | Ignition wire (Φ0.1 nickel-chrome wire) | Meter | 10 | |
| 9 | Crucible | Piece | 2 | |
| 10 | Discharging valve | Piece | 1 | |
| 11 | Oxygen decompression device | Piece | 1 | |
| 12 | Oxygen tube | Pair | 1 | |
| 13 | O-seal ring (Φ20 × 2.4 mm) | Piece | 5 | |
| 14 | O-seal ring (Φ8 × 1.9 mm) | Piece | 5 | |
| 15 | O-seal ring (Φ6 × 1.9 mm) | Piece | 5 | |
| 16 | Seal ring (large “O” ring) | Piece | 2 | |
| 17 | Ignition connection wire | Piece | 1 | |
| 18 | Siphon | Piece | 1 | |
| 19 | Benzoic acid | Piece | 10 | |
| 20 | Stopping ring for thermometer (1#) | Piece | 4 | |
| 21 | Fuse 2 A (Φ5 × 20) | Piece | 2 |
| No | Parameter | Specification |
|---|---|---|
| 1 | Heat Capacity | 14400 J/K ~ 15000 J/K |
| 2 | Resolution | 0.001 K |
| 3 | Measurement Accuracy | ± 60 J/g |
| 4 | Repeatability | ≤ 0.2 % (Grade C) |
| 5 | Pressure Endurance of Oxygen Bomb | 20 MPa |
| 6 | Temperature Measurement Range | 10 °C ~ 35 °C |
| 7 | Ambient Temperature | 20 ± 5 °C (fluctuation ≤ 1 °C) |
| 8 | Data Storage | 31 pieces |
| 9 | Relative Humidity | ≤ 85 % |
| 10 | Power Supply | AC 220 V ± 5 %, 50 Hz |
| 11 | Dimensions | 600 mm × 460 mm × 430 mm |
| No | Name | Unit | Quantity | Remark |
|---|---|---|---|---|
| 1 | Main unit of calorimeter (including oxygen bomb, water jacket, bucket, stirrer, and controller) | Set | 1 | |
| 2 | Pellet press machine | Set | 1 | Optional part |
| 3 | Holder of bomb head | Set | 1 | |
| 4 | Seat of oxygen bomb | Set | 1 | |
| 5 | Temperature sensor | Piece | 1 | |
| 6 | Thermometer (0 ~ 50 °C) | Piece | 1 | |
| 7 | Stopper for thermometer (silica gel stopper 2#) | Piece | 1 | |
| 8 | Ignition wire (Φ0.1 nickel-chrome wire) | Meter | 10 | |
| 9 | Crucible | Piece | 2 | |
| 10 | Discharging valve | Piece | 1 | |
| 11 | Oxygen decompression device | Piece | 1 | |
| 12 | Oxygen tube | Pair | 1 | |
| 13 | O-seal ring (Φ20 × 2.4 mm) | Piece | 5 | |
| 14 | O-seal ring (Φ8 × 1.9 mm) | Piece | 5 | |
| 15 | O-seal ring (Φ6 × 1.9 mm) | Piece | 5 | |
| 16 | Seal ring (large “O” ring) | Piece | 2 | |
| 17 | Ignition connection wire | Piece | 1 | |
| 18 | Siphon | Piece | 1 | |
| 19 | Benzoic acid | Piece | 10 | |
| 20 | Stopping ring for thermometer (1#) | Piece | 4 | |
| 21 | Fuse 2 A (Φ5 × 20) | Piece | 2 |
