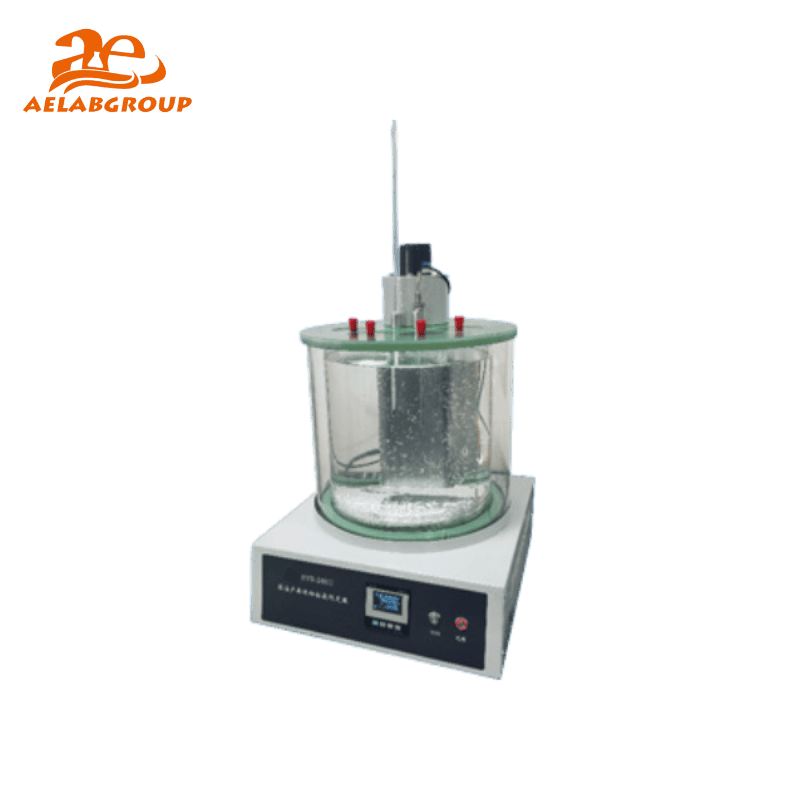

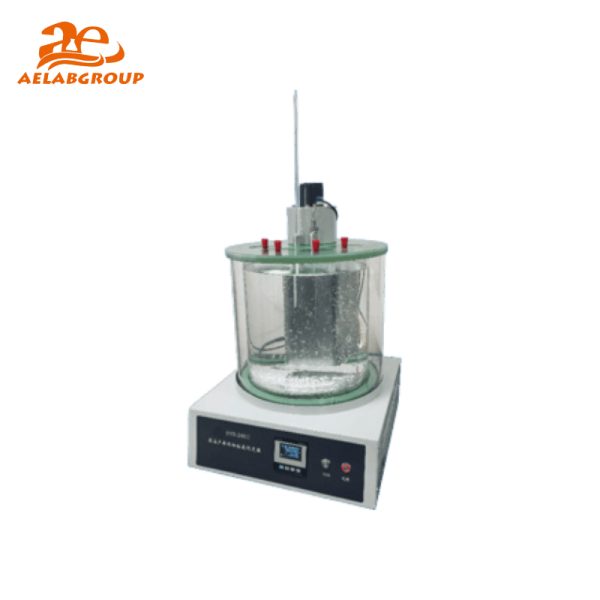

The AELAB SYD-265C Kinematic Viscometer is engineered for precise measurement of the kinematic viscosity of Newtonian liquids such as petroleum products. With a dual-sample design and superior thermal insulation, it meets industry and national standards for high-accuracy lab testing.
✅ 🔬 How It Works?
The AELAB SYD-265C operates by measuring the time it takes for a specified volume of petroleum product to flow under gravity through a calibrated capillary viscometer tube at a controlled temperature. The dual-sample configuration allows two tests simultaneously, improving efficiency. The built-in RTD Pt100 sensor ensures temperature stability, while the user-friendly digital timer accurately records flow duration for viscosity calculation.
✅ 💡 Advantages
🌡 Precise Thermal Control: ±0.1°C accuracy ensures consistent results
🔁 Dual-Sample Capability: Test two samples at once for greater throughput
🧱 High-Quality Materials: Durable hard glass bath with insulated shell
⚙ Flexible Capillary Support: Compatible with various viscometer types
🔧 Customizable Options: Tailored viscometer tubes for diverse applications
✅ 🔍 Recommended Models by Use Case
Educational Laboratories: Use the standard SYD-265C with Pinkevitch tubes for training and demonstrations
Research Institutes: Opt for customized models with Ubbelohde viscometers for advanced studies
Quality Control Departments: Cannon-Fenske capillaries offer robust performance for routine industrial QC
✅ 🧪 Ideal For
Petrochemical Testing Labs
Oil Refinery QC Units
Chemical Research Centers
Automotive Lubricant Developers
University and Vocational Lab Training
Specifications :
| Power supply | AC(220±10%)V，50Hz±5% |
| Maximum power consumption | 1800W |
| Stirring motor | 1200RPM |
| Temperature control range | Ambient to 100℃ |
| Temperature control accuracy | ±0.1℃ |
| Timing range | 0s～9999.9s； |
| Constant temperature bath | 20L,double shell structure |
| Working environment
|
Ambient temperature: 15℃～35℃ |
| Relative humidity: ≤85％ | |
| Temperature sensor | RTD, Pt100 |
| Capillary viscometer tubes (Pinkevitch viscometer) | 6 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm |
| Dimension | 530mm×400mm×670mm |
| Net weight | 20.5kg. |
| Note：This instrument is equipped with 6 pieces of Pinkevitch viscometers.We can customize instrument equipping with Ubbelohde viscometers。 Cannon-Fenske Opaque capillaries according to customer's requirements. | |
| Power supply | AC(220±10%)V，50Hz±5% |
| Maximum power consumption | 1800W |
| Stirring motor | 1200RPM |
| Temperature control range | Ambient to 100℃ |
| Temperature control accuracy | ±0.1℃ |
| Timing range | 0s～9999.9s； |
| Constant temperature bath | 20L,double shell structure |
| Working environment
|
Ambient temperature: 15℃～35℃ |
| Relative humidity: ≤85％ | |
| Temperature sensor | RTD, Pt100 |
| Capillary viscometer tubes (Pinkevitch viscometer) | 6 pieces in total, inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm |
| Dimension | 530mm×400mm×670mm |
| Net weight | 20.5kg. |
| Note：This instrument is equipped with 6 pieces of Pinkevitch viscometers.We can customize instrument equipping with Ubbelohde viscometers。 Cannon-Fenske Opaque capillaries according to customer's requirements. | |
