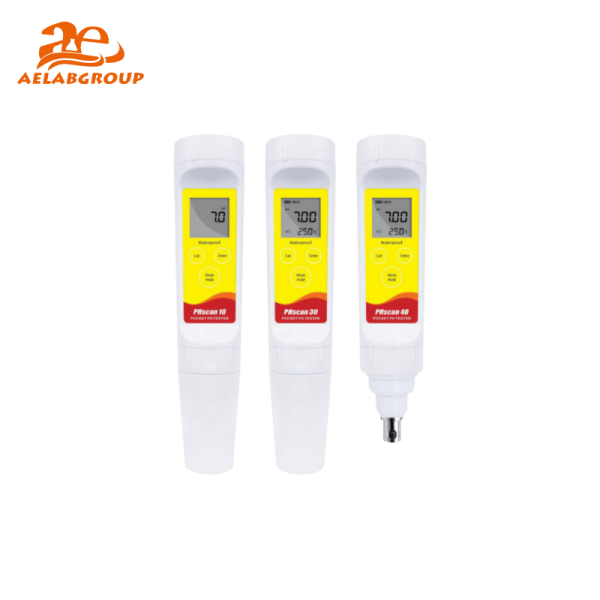

PH Scan10/20/30/40 Pocket pH Tester

The PH Scan 10/20/30/40 Pocket pH Testers provide accurate pH measurement with easy calibration, auto power-off, and user-friendly features like replaceable electrodes and auto-hold in advanced models.

Modles : PHscan10~PHscan20~PHscan30~PHscan40

Quantity:

Send Email

The PH Scan 10/20/30/40 Pocket pH Testers are compact, reliable devices featuring 1–3 point push-button calibration with auto-buffer recognition, hold or auto-hold functions for easy and accurate reading, auto power-off for battery conservation, replaceable electrodes for cost-effective maintenance, and customizable settings in advanced models for flexible and precise pH measurement.

PH SCAN 10/20 FEATURES

2 points push-button calibration with auto-buffer recognition.
Hold function freezes reading momentarily for easy viewing and recording.
Auto-Power Off effectively conserves battery life.
Replaceable electrode module reduces the maintenance and replacement costs.

PH SCAN 30/40 FEATURES

1 to 3 points push-button calibration with auto-buffer recognition.
Auto-Hold function locks the reading automatically for the accurate measuring results.
Auto-Hold feature senses and locks the measurement at the end point.
Auto-Power Off effectively conserves battery life.
Setup menu allows setting the 5 parameters, including the pH buffer group (USA / NIST), number of calibration points, temperature unit, etc.
Reset feature automatically resumes all settings back to factory default options.

Specifications :

Model	PHscan10	PHscan20	PHscan30	PHscan40
pH
Measuring Range	0.0 - 14.0pH	0.00 - 14.00pH	-1.00 - 15.00pH	-1.00 - 15.00pH
Accuracy	± 0.1pH	± 0.05pH	± 0.05pH	± 0.05pH
Resolution	0.1pH	0.01pH	0.01pH	0.01pH
Temperature Compensation	--	0 - 60°C, Automatic	0 - 60°C, Automatic	0 - 100°C, Manual
Calibration Points	2 points	2 points	1 - 3 points	1 - 3 points
pH Buffer Options	USA	USA	USA or NIST	USA or NIST
Temperature
Measuring Range	--	--	0 - 60°C, 32 - 140°F	--
Accuracy	--	--	± 1°C	--
Resolution	--	--	0.1°C	--
General
Data Hold	Manual	Manual	Manual or Auto-Endpoint	Manual or Auto-Endpoint
Connector	6-pin	6-pin	6-pin	BNC
Power Requirements	3 x 1.5V G13A batteries	3 x 1.5V G13A batteries	2 x 1.5V AAA batteries	2 x 1.5V AAA batteries
Dimensions	185(L) x 40(Dia.) mm	185(L) x 40(Dia.) mm	185(L) x 40(Dia.) mm	185(L) x 40(Dia.) mm
Weight	100g	100g	100g	100g

Model	PHscan10	PHscan20	PHscan30	PHscan40
pH
Measuring Range	0.0 - 14.0pH	0.00 - 14.00pH	-1.00 - 15.00pH	-1.00 - 15.00pH
Accuracy	± 0.1pH	± 0.05pH	± 0.05pH	± 0.05pH
Resolution	0.1pH	0.01pH	0.01pH	0.01pH
Temperature Compensation	--	0 - 60°C, Automatic	0 - 60°C, Automatic	0 - 100°C, Manual
Calibration Points	2 points	2 points	1 - 3 points	1 - 3 points
pH Buffer Options	USA	USA	USA or NIST	USA or NIST
Temperature
Measuring Range	--	--	0 - 60°C, 32 - 140°F	--
Accuracy	--	--	± 1°C	--
Resolution	--	--	0.1°C	--
General
Data Hold	Manual	Manual	Manual or Auto-Endpoint	Manual or Auto-Endpoint
Connector	6-pin	6-pin	6-pin	BNC
Power Requirements	3 x 1.5V G13A batteries	3 x 1.5V G13A batteries	2 x 1.5V AAA batteries	2 x 1.5V AAA batteries
Dimensions	185(L) x 40(Dia.) mm	185(L) x 40(Dia.) mm	185(L) x 40(Dia.) mm	185(L) x 40(Dia.) mm
Weight	100g	100g	100g	100g
