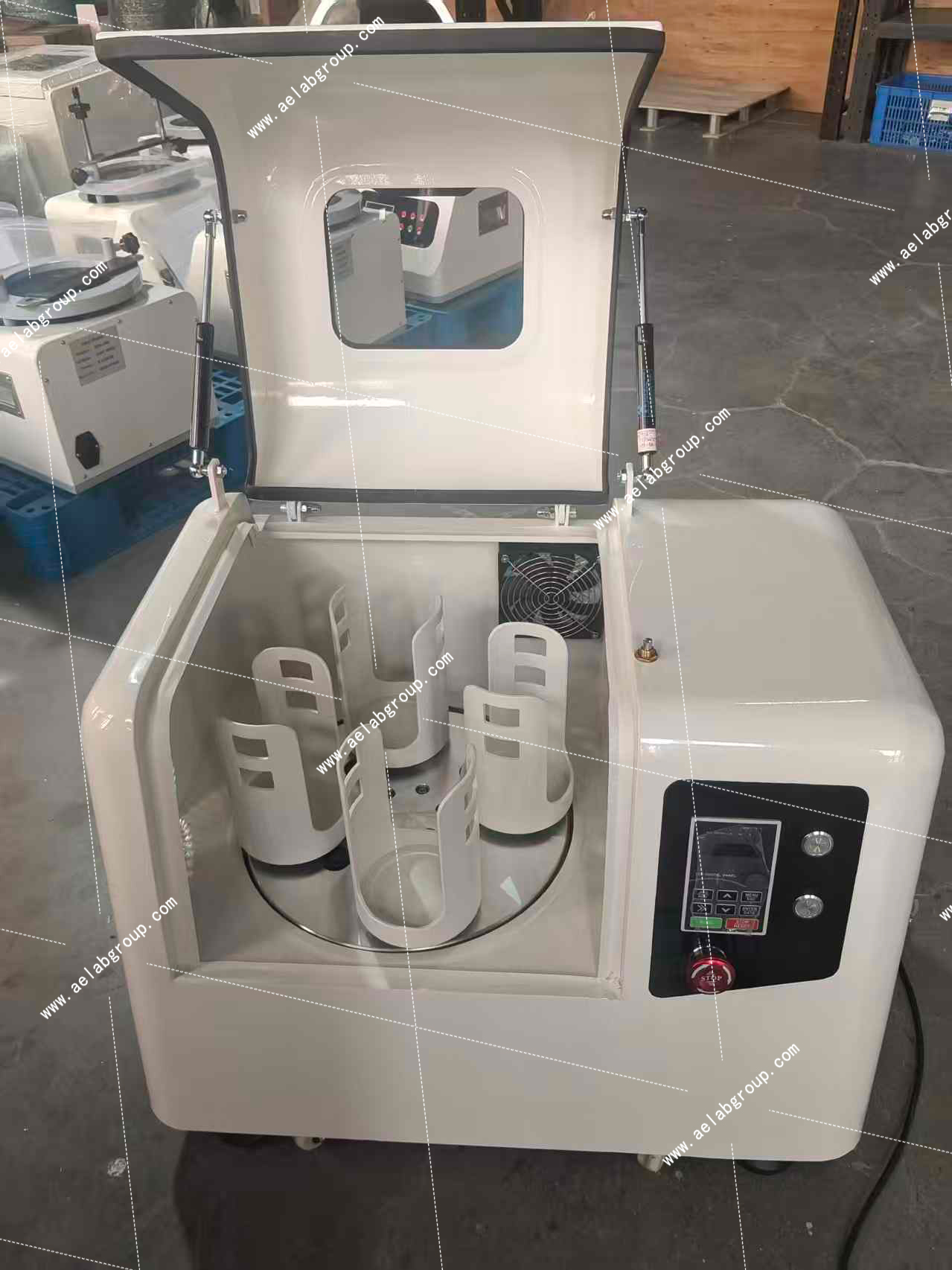

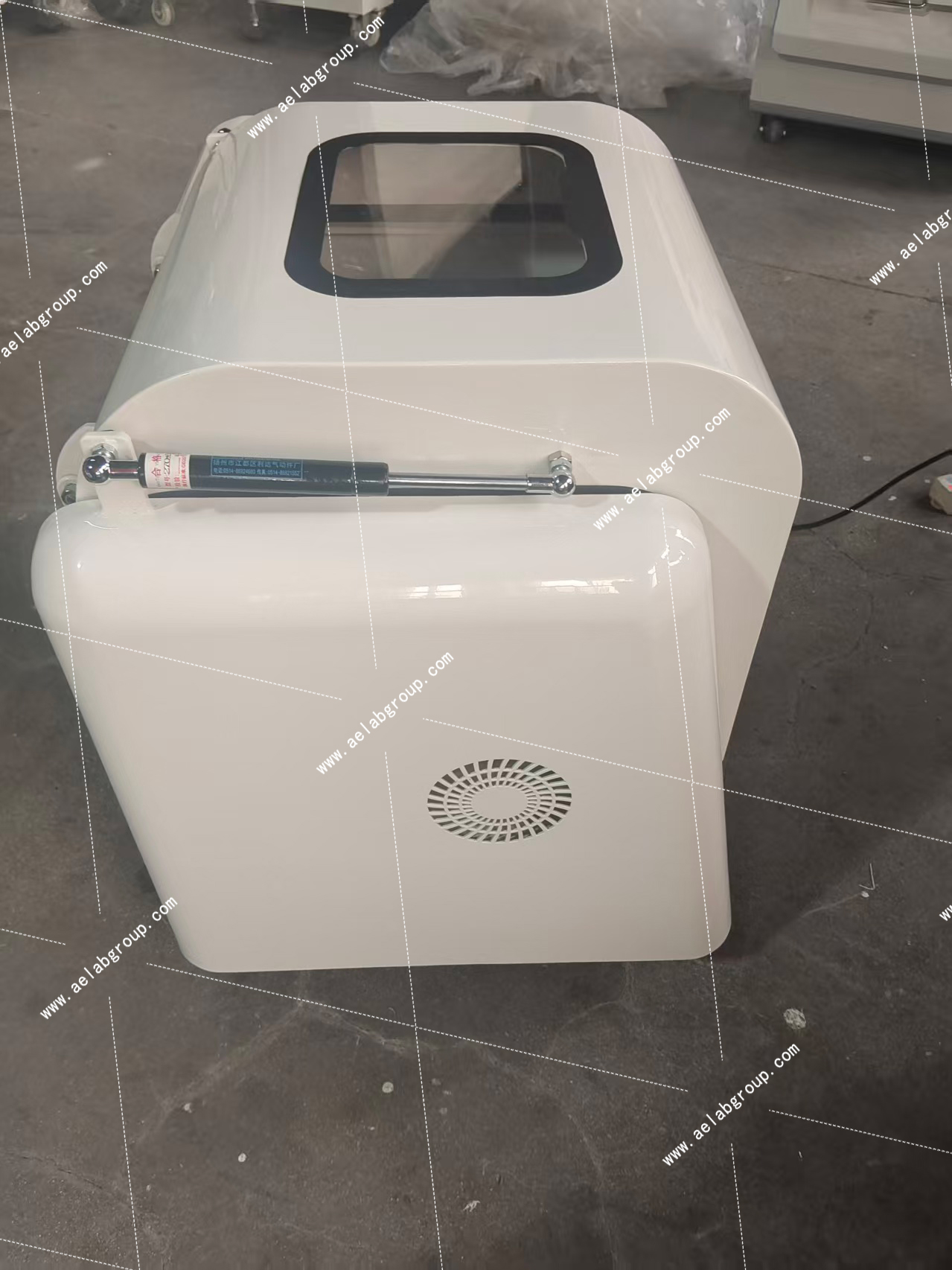

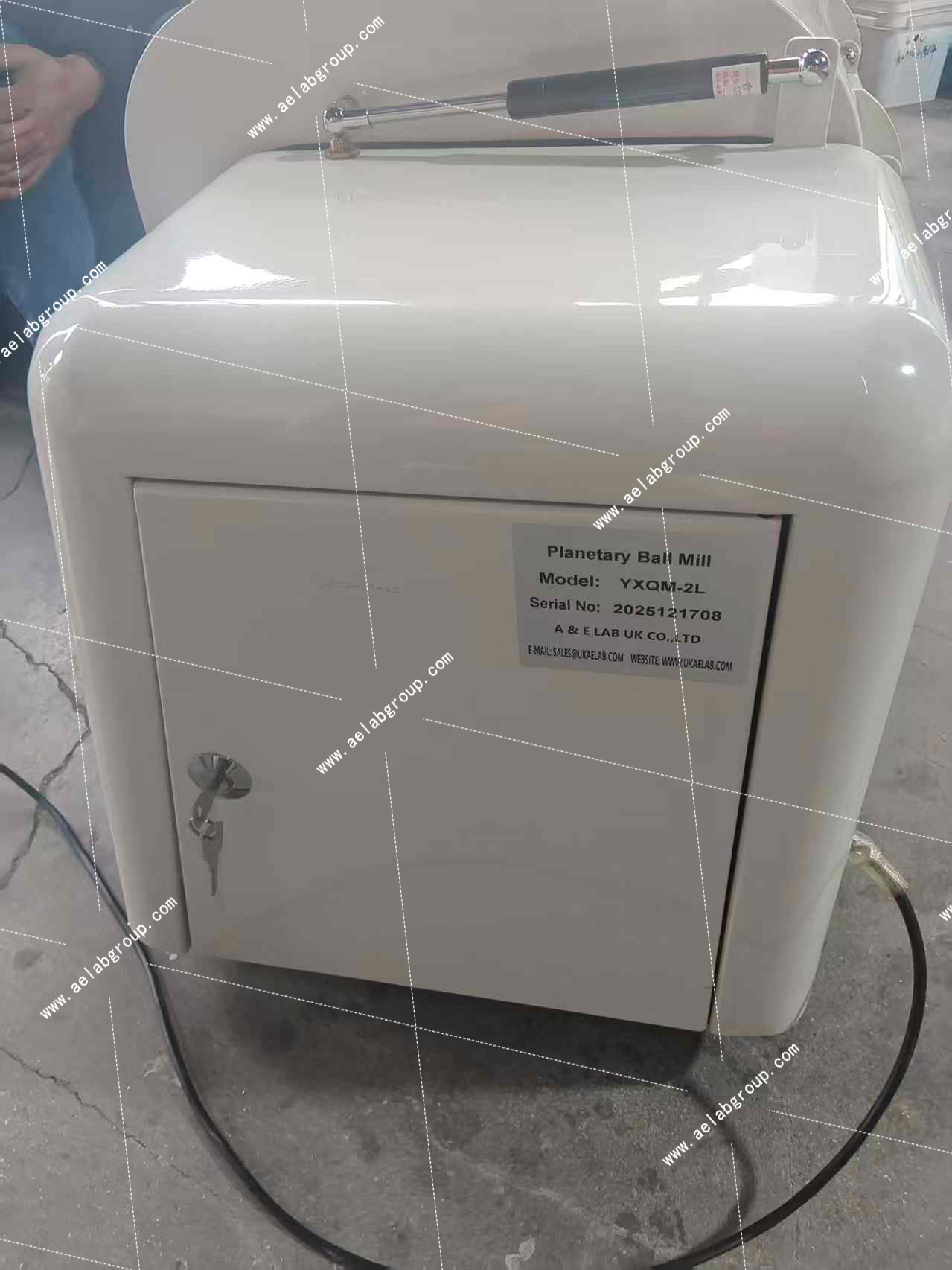

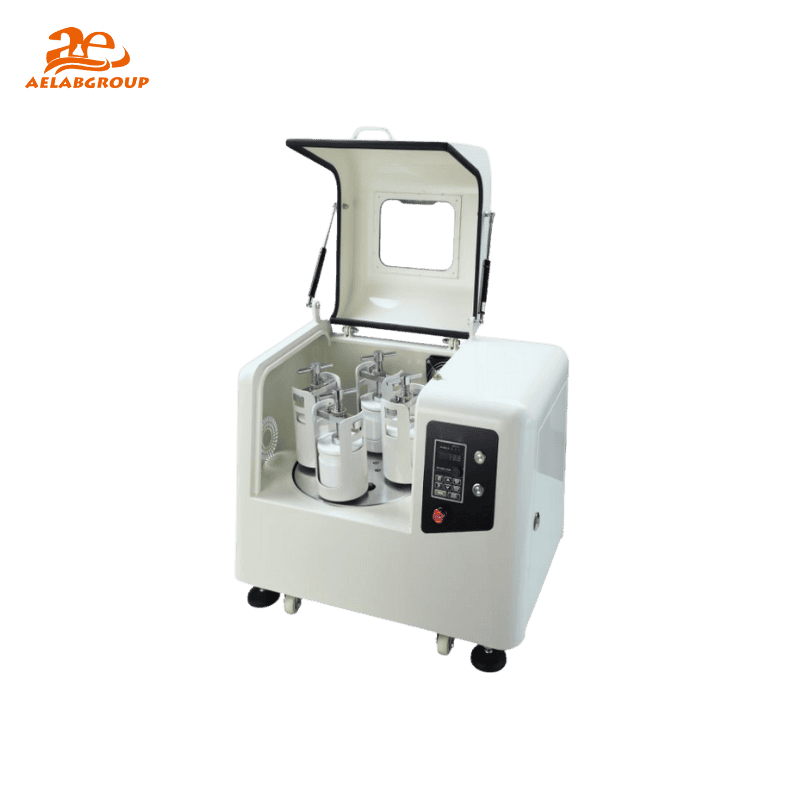

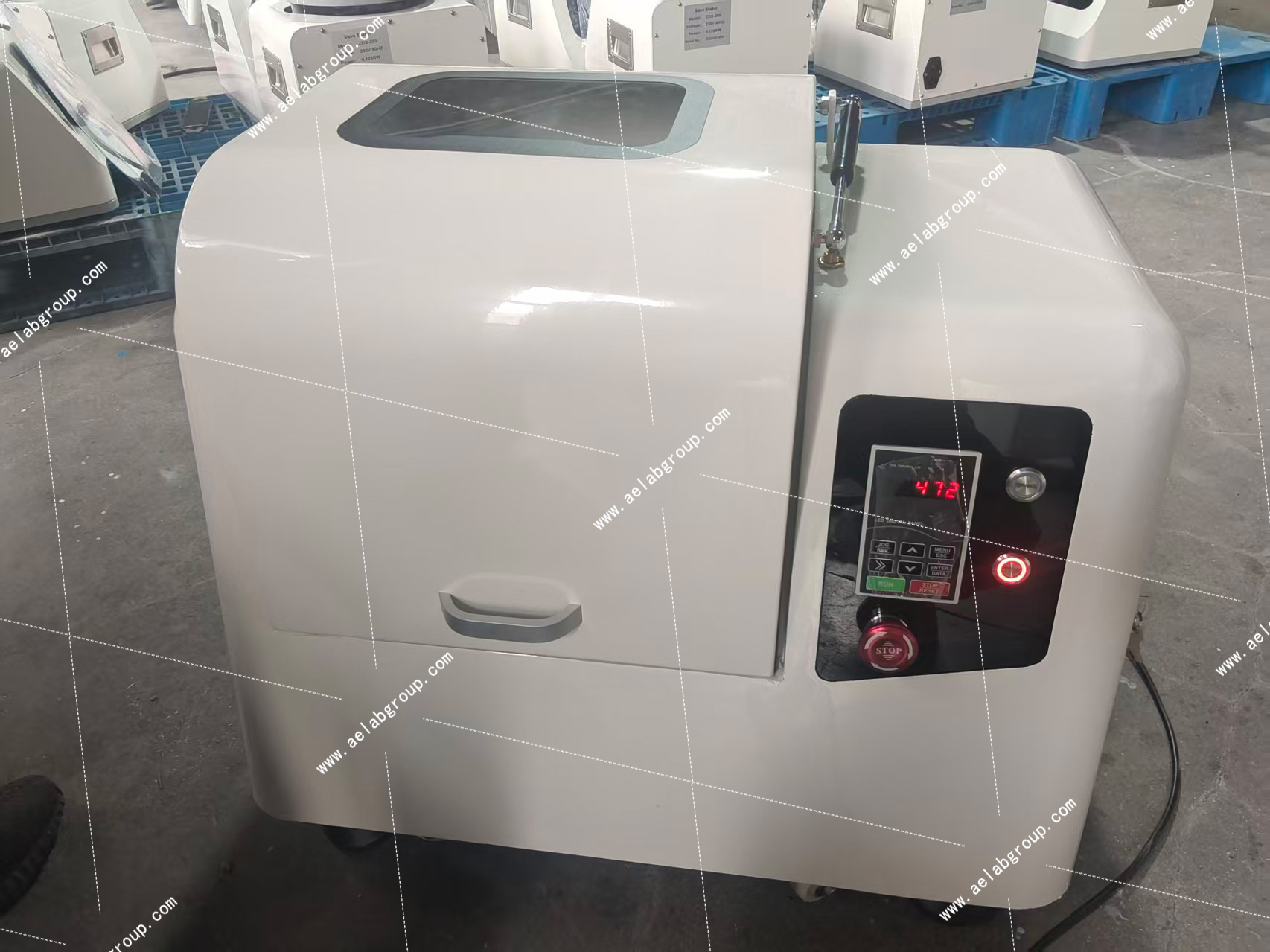

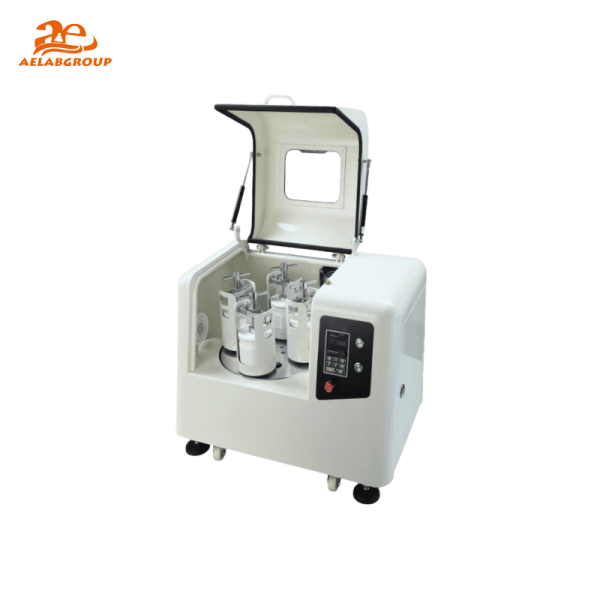

The YXQM Series Planetary Ball Mill features an innovative oil-seal silent technology, with a patented design that reduces noise by 50% compared to other planetary ball mills on the market, while extending the service life by more than 2 times. This model can achieve nano-scale grinding with a final fineness of up to 0.1μm, making it ideal for colloidal grinding. It is equipped with a PLC control panel, offering easy operation and high efficiency, allowing for the setting of time, RPM, and both forward and reverse rotation. The device is designed to be mobile, with wheels for easy handling, making it quick and convenient to move. Additionally, the safety door can only be opened when the machine is stopped, ensuring safe operation.
Features：
Specifications :
Application to laboratory
| Model | YXQM-0.4L | YXQM-1L | YXQM-2L | YXQM-4L | YXQM-8L | YXQM-12L |
| Grinding Jar Size | 50-100 (ml) | 50-250 (ml) | 50-500 (ml) | 50-1000 (ml) | 500-2000 (ml) | 1000-3000 (ml) |
| Vacuum Jar Size | 50 (ml) | 50-100 (ml) | 50-250 (ml) | 50-500 (ml) | 500-2000 (ml) | 1000-3000 (ml) |
| Sun Wheel Speed | 5-450 (r/min) | 5-450 (r/min) | 5-400 (r/min) | 5-400 (r/min) | 5-320 (r/min) | 5-320 (r/min) |
| Ball Mill Jar Speed | 10-900 (r/min) | 10-900 (r/min) | 10-800 (r/min) | 10-800 (r/min) | 10-640 (r/min) | 10-640 (r/min) |
| Power | 0.55 (kw) | 0.55 (kw) | 0.75 (kw) | 0.75 (kw) | 1.5 (kw) | 1.5 (kw) |
| Voltag | 220/50 (v/hz) | 220/50 (v/hz) | 220/50 (v/hz) | 220/50 (v/hz) | 220/380/50 (v/hz) | 380/50 (v/hz) |
| Weight | 68 (kg) | 70 (kg) | 96 (kg) | 99 (kg) | 191 (kg) | 193 (kg) |
Application to mass production
| Model | YXQM-16L | YXQM-20L | YXQM-40L | YXQM-60L | YXQM-80L | YXQM-100L |
| Grinding Jar Size | 1-4 (L) | 1-5 (L) | 5-10 (L) | 10-15 (L) | 10-20 (L) | 10-25 (L) |
| Vacuum Jar Size | 1-4 (L) | 1-5 (L) | 5-10 (L) | 10-15 (L) | 10-20 (L) | 10-25 (L) |
| Sun Wheel Speed | 5-230 (r/min) | 5-230 (r/min) | 5-220 (r/min) | 5-220 (r/min) | 5-180 (r/min) | 5-180 (r/min) |
| Ball Mill Jar Speed | 10-460 (r/min) | 10-460 (r/min) | 10-440 (r/min) | 10-440 (r/min) | 10-360 (r/min) | 10-360 (r/min) |
| Power | 3 (kw) | 3 (kw) | 7.5 (kw) | 7.5 (kw) | 15 (kw) | 15 (kw) |
| Voltage | 380/50 (v/hz) | 380/50 (v/hz) | 380/50 (v/hz) | 380/50 (v/hz) | 380/50 (v/hz) | 380/50 (v/hz) |
| Weight | 230 (kg) | 288 (kg) | 400 (kg) | 610 (kg) | 610 (kg) | 1059 (kg) |
Application to laboratory
| Model | YXQM-0.4L | YXQM-1L | YXQM-2L | YXQM-4L | YXQM-8L | YXQM-12L |
| Grinding Jar Size | 50-100 (ml) | 50-250 (ml) | 50-500 (ml) | 50-1000 (ml) | 500-2000 (ml) | 1000-3000 (ml) |
| Vacuum Jar Size | 50 (ml) | 50-100 (ml) | 50-250 (ml) | 50-500 (ml) | 500-2000 (ml) | 1000-3000 (ml) |
| Sun Wheel Speed | 5-450 (r/min) | 5-450 (r/min) | 5-400 (r/min) | 5-400 (r/min) | 5-320 (r/min) | 5-320 (r/min) |
| Ball Mill Jar Speed | 10-900 (r/min) | 10-900 (r/min) | 10-800 (r/min) | 10-800 (r/min) | 10-640 (r/min) | 10-640 (r/min) |
| Power | 0.55 (kw) | 0.55 (kw) | 0.75 (kw) | 0.75 (kw) | 1.5 (kw) | 1.5 (kw) |
| Voltag | 220/50 (v/hz) | 220/50 (v/hz) | 220/50 (v/hz) | 220/50 (v/hz) | 220/380/50 (v/hz) | 380/50 (v/hz) |
| Weight | 68 (kg) | 70 (kg) | 96 (kg) | 99 (kg) | 191 (kg) | 193 (kg) |
Application to mass production
| Model | YXQM-16L | YXQM-20L | YXQM-40L | YXQM-60L | YXQM-80L | YXQM-100L |
| Grinding Jar Size | 1-4 (L) | 1-5 (L) | 5-10 (L) | 10-15 (L) | 10-20 (L) | 10-25 (L) |
| Vacuum Jar Size | 1-4 (L) | 1-5 (L) | 5-10 (L) | 10-15 (L) | 10-20 (L) | 10-25 (L) |
| Sun Wheel Speed | 5-230 (r/min) | 5-230 (r/min) | 5-220 (r/min) | 5-220 (r/min) | 5-180 (r/min) | 5-180 (r/min) |
| Ball Mill Jar Speed | 10-460 (r/min) | 10-460 (r/min) | 10-440 (r/min) | 10-440 (r/min) | 10-360 (r/min) | 10-360 (r/min) |
| Power | 3 (kw) | 3 (kw) | 7.5 (kw) | 7.5 (kw) | 15 (kw) | 15 (kw) |
| Voltage | 380/50 (v/hz) | 380/50 (v/hz) | 380/50 (v/hz) | 380/50 (v/hz) | 380/50 (v/hz) | 380/50 (v/hz) |
| Weight | 230 (kg) | 288 (kg) | 400 (kg) | 610 (kg) | 610 (kg) | 1059 (kg) |
