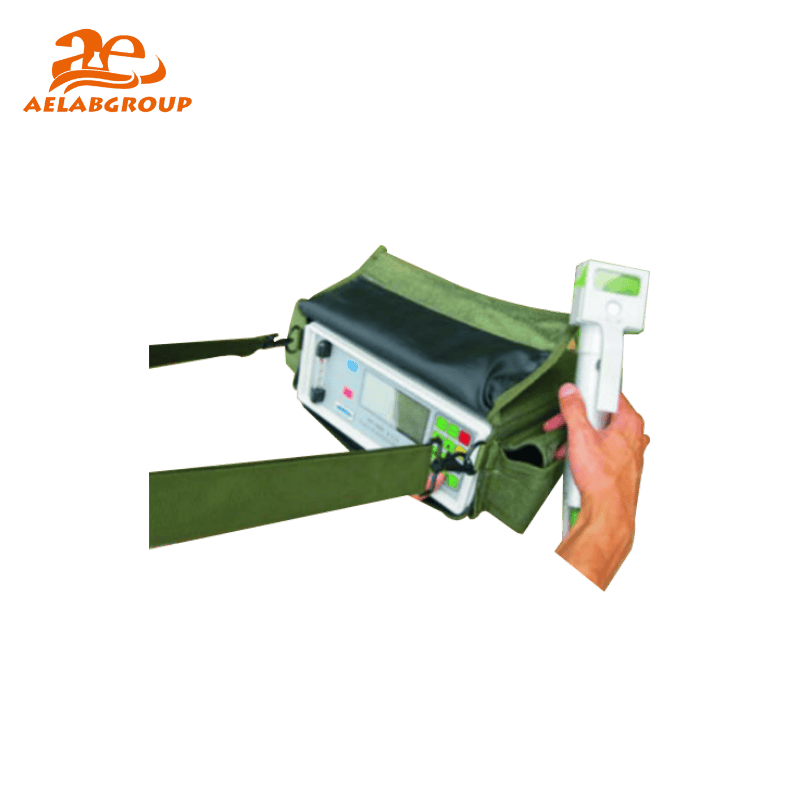

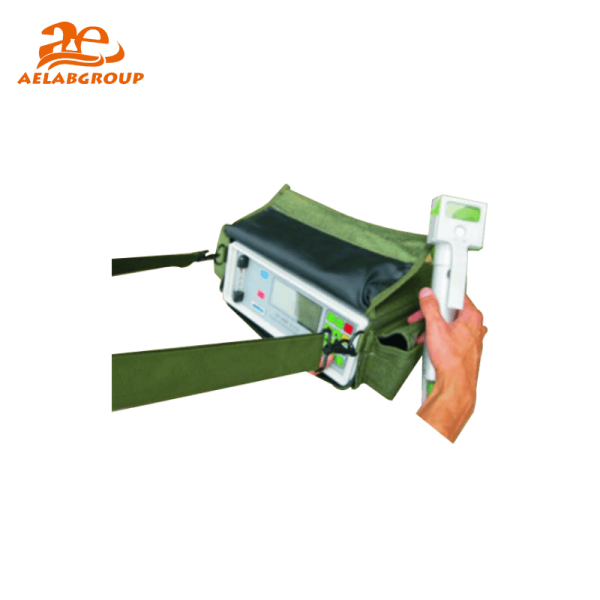

Plant Transpiration Rate Meter TPZT‐1000

The TPZT-1000 is a portable plant physiology instrument that measures air temperature, humidity, leaf temperature, and PAR, while calculating transpiration rate and stomatal conductance. With high-precision sensors and a customizable 55×20mm leaf chamber, it’s ideal for plant species studies. Weighing 3.25kg, it’s perfect for both lab and field research, providing reliable data for plant-environment water relations analysis.

Modles : TPZT‐1000

Quantity:

Send Email

The TPZT-1000 is a high-precision, portable device for measuring plant transpiration and stomatal conductance. It simultaneously monitors air/leaf temperature, humidity, and PAR, providing instant calculations for critical plant physiology parameters.

Featuring a user-friendly interface with real-time data display, its compact design (3.25kg) ensures easy field operation. The customizable leaf chamber adapts to various plants, from crops to vegetables, while robust construction withstands harsh conditions (0-100% RH, 20-50°C).

With lab-grade accuracy (±0.2°C, ±3% RH) and 9-hour battery life, the TPZT-1000 delivers reliable data for research in agronomy, ecology, and irrigation optimization—all at a competitive price.

Feature：

Multiple parameters tested: test air temperature, leaf temperature, air humidity, PAR etc at same time,and count the transpiration rate and Stomatal conductance accordingly.
Intelligent: Menu display and Cursor operation; test process and results displayed in real‐time, withsmall size, light, portable and one‐person operation.
Widely application: with different leaf chamber, the meter is able to be used in field crops, fruit andvegetables, hay etc which are in different shape

Cost‐efficiency: very competitive price and convenient maintenance

Specifications :

No.	Parameter	Specifications
1	Air Temperature (TL)	High-accuracy digital sensor (Swaziland) Range: 0–50℃ Resolution: 0.1℃ Error: ±0.2℃
2	Leaf Temperature (TC)	Platinum sensor Range: 0–50℃ Resolution: 0.1℃ Error: ±0.2℃
3	Air Humidity (RH)	High-accuracy digital sensor (Swaziland) Range: 0–100% Resolution: 0.1% Error: ≤±3%
4	PAR	Silicon photocell with correction filter Range: 0–2500 µmol/m²/s Accuracy: <5 µmol/m²/s
5	Flux	Glass rotameter
6	Leaf Chamber Size	Standard: 55 mm × 20 mm Customizable available
7	Work Environment	Temperature: 20–50℃ Humidity: 0–100% (non-condensing)
8	Power	DC 7.4V Li-ion Battery Runtime: 7–9 hours continuous operation
9	Data Storage	2GB SD card
10	Display	320 × 160 lattice screen
11	Dimensions	260 × 260 × 130 mm
12	Weight	3.25 kg

No.	Parameter	Specifications
1	Air Temperature (TL)	High-accuracy digital sensor (Swaziland) Range: 0–50℃ Resolution: 0.1℃ Error: ±0.2℃
2	Leaf Temperature (TC)	Platinum sensor Range: 0–50℃ Resolution: 0.1℃ Error: ±0.2℃
3	Air Humidity (RH)	High-accuracy digital sensor (Swaziland) Range: 0–100% Resolution: 0.1% Error: ≤±3%
4	PAR	Silicon photocell with correction filter Range: 0–2500 µmol/m²/s Accuracy: <5 µmol/m²/s
5	Flux	Glass rotameter
6	Leaf Chamber Size	Standard: 55 mm × 20 mm Customizable available
7	Work Environment	Temperature: 20–50℃ Humidity: 0–100% (non-condensing)
8	Power	DC 7.4V Li-ion Battery Runtime: 7–9 hours continuous operation
9	Data Storage	2GB SD card
10	Display	320 × 160 lattice screen
11	Dimensions	260 × 260 × 130 mm
12	Weight	3.25 kg
