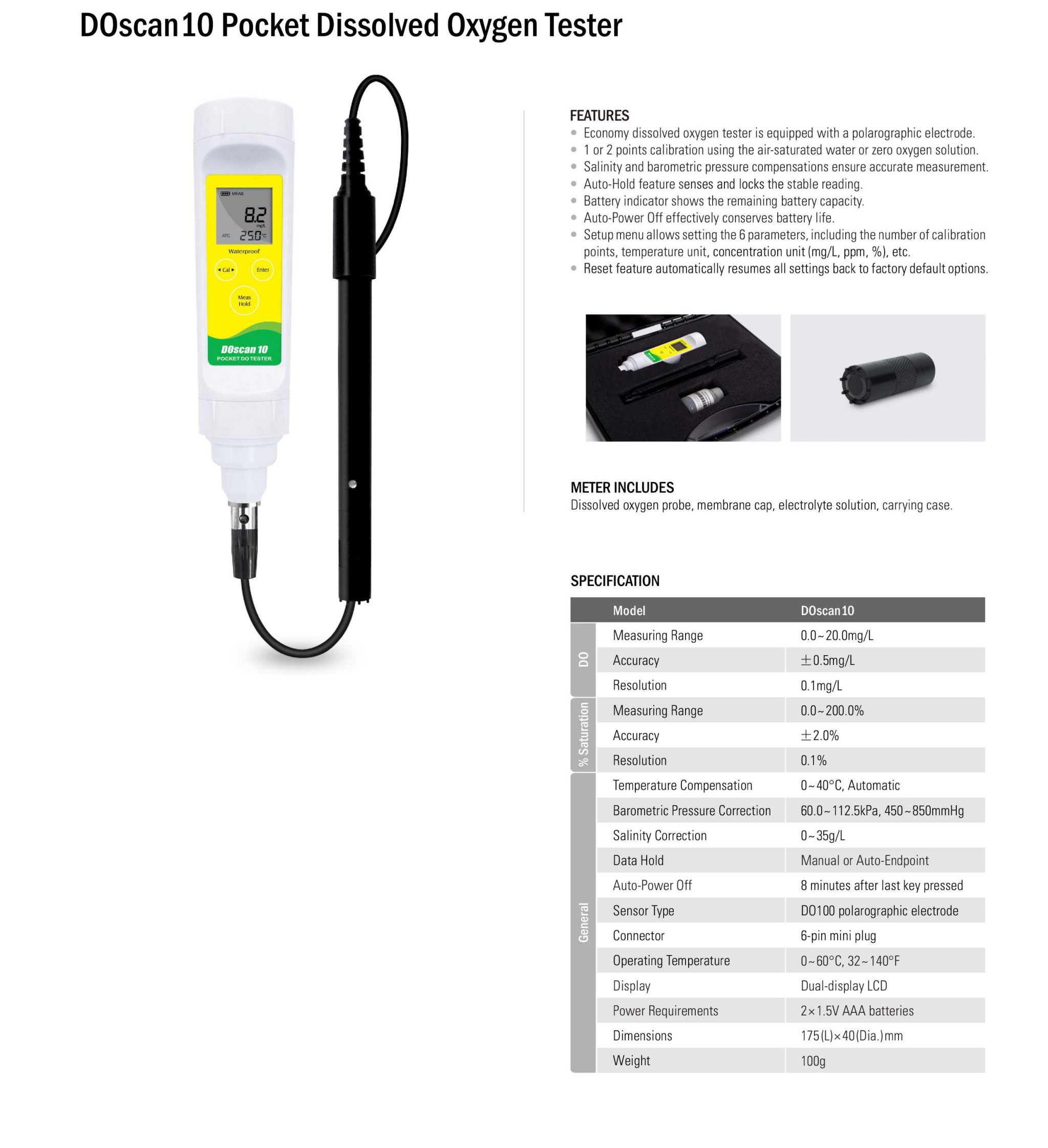

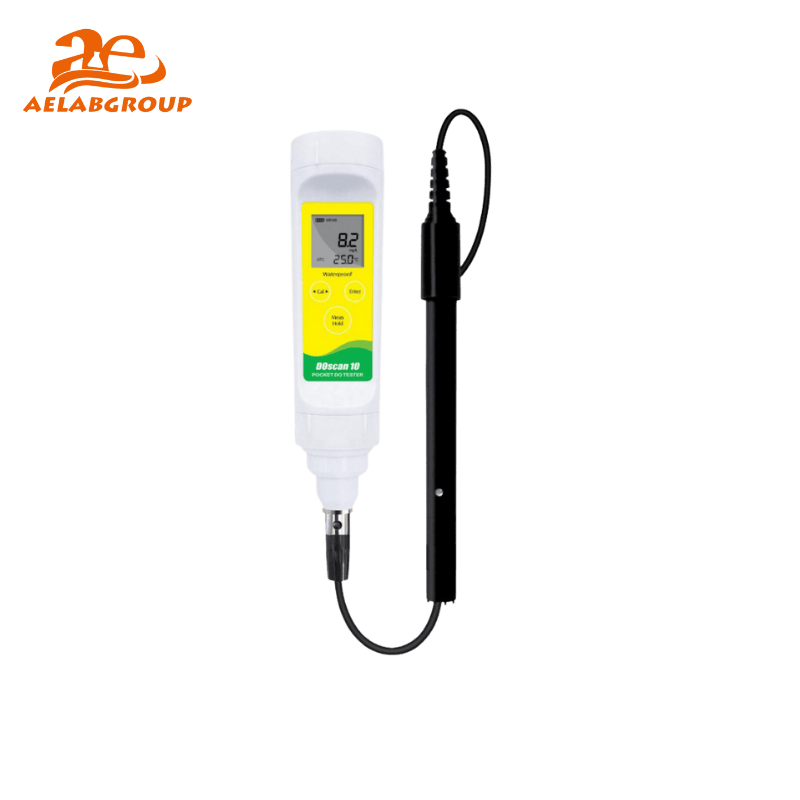

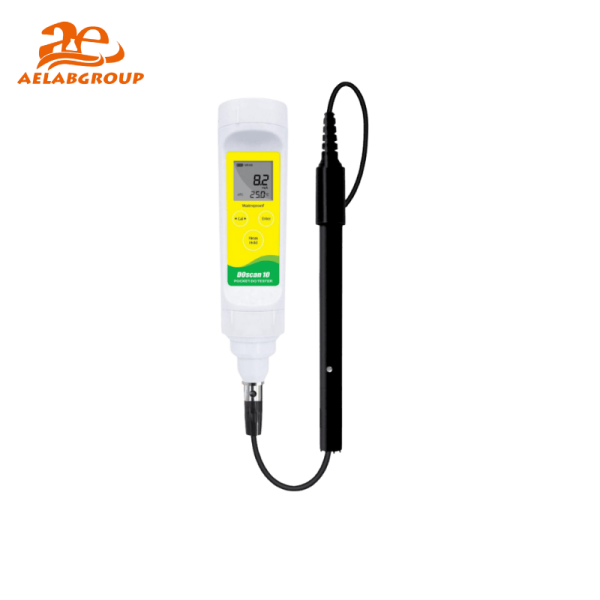

Pocket Dissolved Oxygen Tester DOscan10

The Pocket Dissolved Oxygen Tester DOscan10 is an economical, portable device with a polarographic electrode, 1 or 2-point calibration, and temperature, salinity, and barometric pressure compensation for accurate readings. It features a battery indicator, Auto-Power Off, customizable settings, and comes with a probe, membrane cap, electrolyte solution, and carrying case.
Modles : DOscan10
whatsapp Whatsapp

The Pocket Dissolved Oxygen Tester DOscan10 is an economical and efficient device for measuring dissolved oxygen levels, featuring a polarographic electrode for accurate readings. It offers 1 or 2-point calibration using air-saturated water or zero oxygen solution, and compensates for temperature, salinity, and barometric pressure to ensure precise measurements. The battery indicator shows remaining power, while the Auto-Power Off function helps conserve battery life. A customizable setup menu allows users to adjust six parameters, including calibration points, temperature unit, and concentration units (mg/L, ppm, %). The reset feature restores the meter to factory default settings. The DOscan10 comes with a dissolved oxygen probe, membrane cap, electrolyte solution, and carrying case, making it a complete, portable solution for dissolved oxygen testing.



FEATURES

  • Economy dissolved oxygen tester is equipped with a polarographic electrode.
  • 1 or 2 points calibration using the air – saturated water or zero oxygen solution.
  • Temperature, salinity and barometric pressure compensations ensure accurate measurement.
  • Battery indicator shows the remaining battery capacity.
  • Auto – Power Off effectively conserves battery life.
  • Setup menu allows setting the 6 parameters, including the number of calibration points, temperature unit, concentration unit (mg/L, ppm, %), etc.
  • Reset feature automatically resumes all settings back to factory default options.

Specifications :

Category Details
Model DOscan10
DO Measuring Range 0.0 - 20.0mg/L
DO Accuracy ±0.5mg/L
DO Resolution 0.1mg/L
Saturation Measuring Range 0.0 - 200.0%
Saturation Accuracy ±2.0%
Saturation Resolution 0.1%
Temperature Compensation 0 - 40°C, Automatic
Barometric Pressure Correction 60.0 - 112.5kPa, 450 - 850mmHg
Salinity Correction 0 - 35g/L
Data Hold Manual or Auto - Endpoint
Auto - Power Off 8 minutes after last key pressed
General Connector 6 - pin mini - plug
Operating Temperature 0 - 60°C, 32 - 140°F
Display Dual - display LCD
Power Requirements 2 x 1.5V AAA batteries
Dimensions 175(L) x 40(Dia.)mm
Weight 100g
Category Details
Model DOscan10
DO Measuring Range 0.0 - 20.0mg/L
DO Accuracy ±0.5mg/L
DO Resolution 0.1mg/L
Saturation Measuring Range 0.0 - 200.0%
Saturation Accuracy ±2.0%
Saturation Resolution 0.1%
Temperature Compensation 0 - 40°C, Automatic
Barometric Pressure Correction 60.0 - 112.5kPa, 450 - 850mmHg
Salinity Correction 0 - 35g/L
Data Hold Manual or Auto - Endpoint
Auto - Power Off 8 minutes after last key pressed
General Connector 6 - pin mini - plug
Operating Temperature 0 - 60°C, 32 - 140°F
Display Dual - display LCD
Power Requirements 2 x 1.5V AAA batteries
Dimensions 175(L) x 40(Dia.)mm
Weight 100g

Request Quote: Pocket Dissolved Oxygen Tester DOscan10
