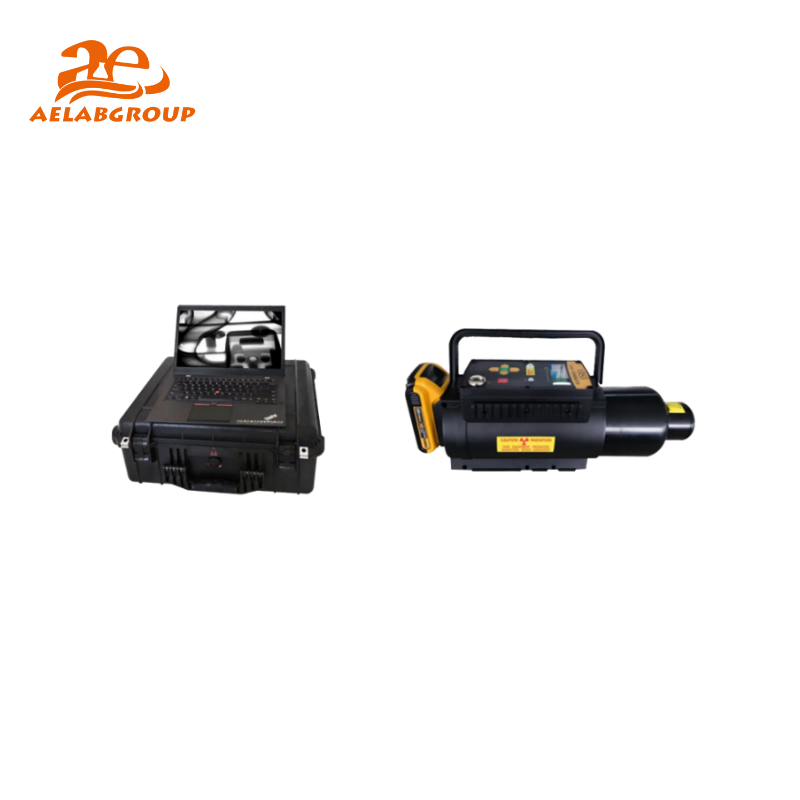

Portable Digital Radiography System AL-DR-150 Series

AL-DR-270 model: The pulse x ray equipment generates high energy within 25 nanoseconds. The outputdose of each pulse is about 3mR at 12 inches(30.50cm) from the source in the front. The oversized imaging area permits the multi-sample detection. The testing results is represented on the notebook computer, which can be saved and printed.

Modles : AL-DR-150、AL-DR-270、AL-DR-370

Quantity:

Send Email

The AL-DR-270 pulse X-ray equipment generates high-energy pulses within just 25 nanoseconds, delivering a rapid and powerful inspection process. Each pulse produces an output dose of approximately 3 mR at a distance of 12 inches (30.5 cm) from the source in the front, ensuring efficient and precise imaging.

The oversized imaging area allows for the detection of multiple samples simultaneously, enhancing the system’s capability for larger-scale inspections. The testing results are displayed on a notebook computer, providing real-time monitoring. These results can be saved and printed, offering flexibility for record-keeping and further analysis.

Product advantages:

Small size with remarkable penetration
All the accessories can be packed in a case, easy to transport
Large imaging area permits multi-sample detection
Large imaging area permits multi-sample detection
Low cost, saving labor and time cost.
Less management cost than that of radiation source.
Simple user interface with the selling of variable energy.
Stable, safe and reliable.

Specifications :

Parameter	Model	AL-DR-150	AL-DR-270	AL-DR-370
X-ray machine	Voltage	150kV	270kV	370kV
	Output	Max 4.0 Mr / pulse, min 2.6 Mr / pulse, 12 inches away from the source
	Pulse rate	15 pulses/second	25 pulses/second	10 pulses/second
	Pulse width	60nanoseconds	25nanoseconds	15nanoseconds
	Source dimension	3mm
	Beam angle	40°
	Max.penetration	12mm(A3 Steel)	23mm(A3 Steel)	50mm(A3 Steel)
	Weight	4.5kg	5.4kg	10.5kg
	Power	20V portable and rechargeable nickel-cadmium battery
Image size	350×430mm
