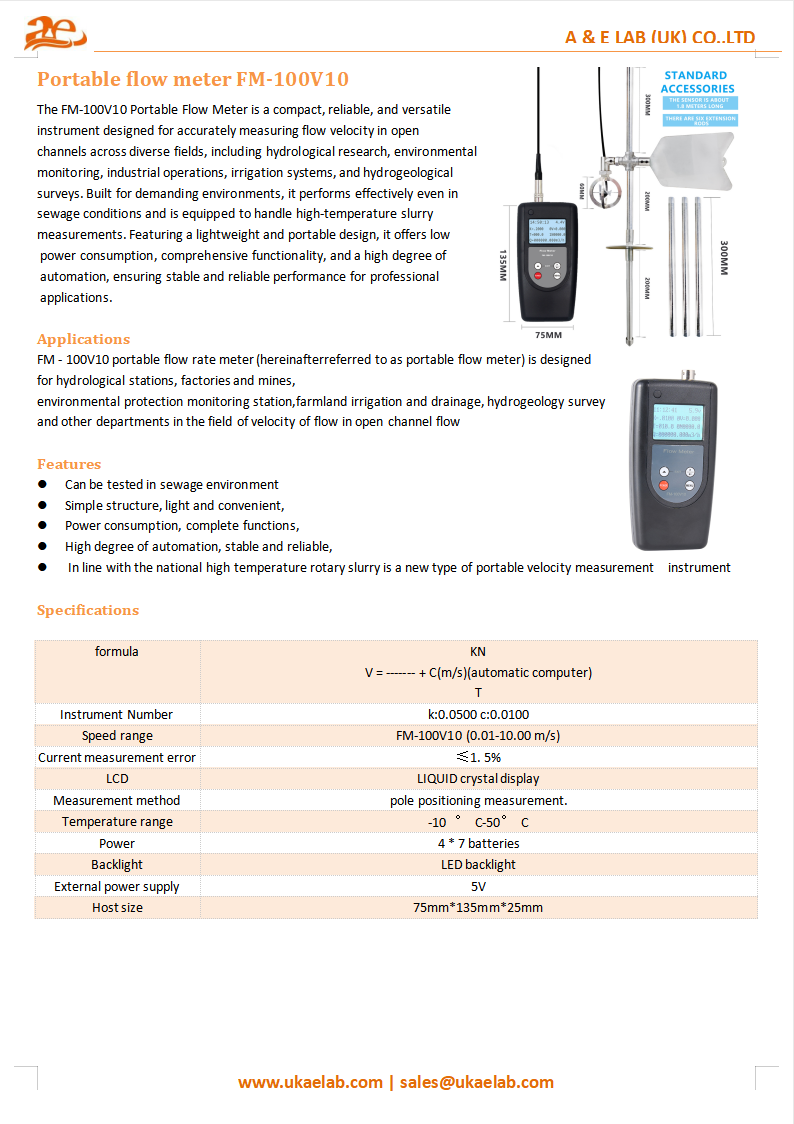

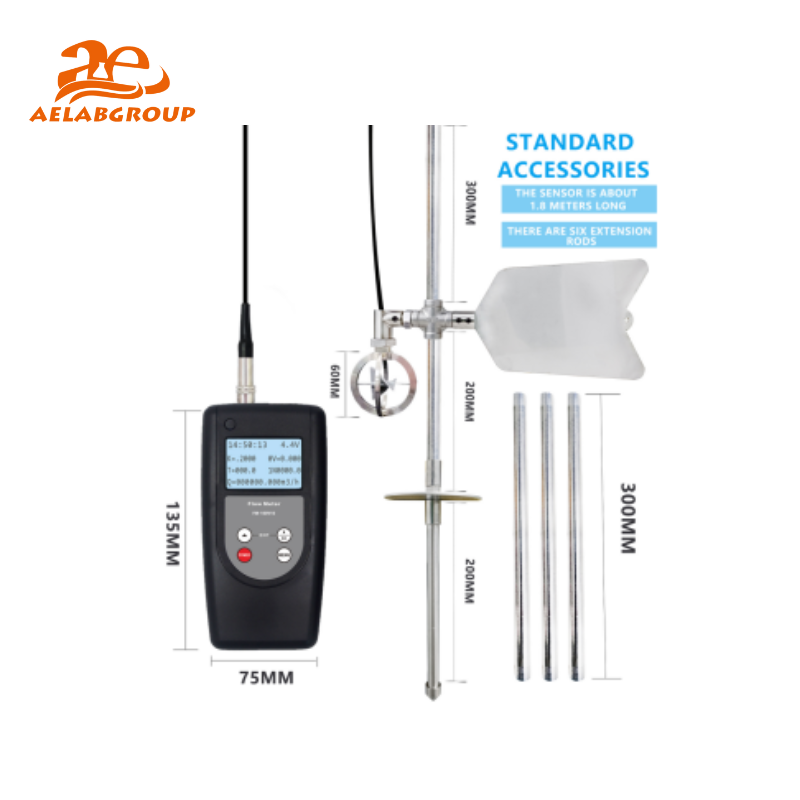

The FM-100V10 Portable Flow Meter is a compact, reliable, and versatile instrument designed for accurately measuring flow velocity in open channels across diverse fields, including hydrological research, environmental monitoring, industrial operations, irrigation systems, and hydrogeological surveys. Built for demanding environments, it performs effectively even in sewage conditions and is equipped to handle high-temperature slurry measurements. Featuring a lightweight and portable design, it offers low power consumption, comprehensive functionality, and a high degree of automation, ensuring stable and reliable performance for professional applications.
Features
Specifications :
| formula | KN
V = ------- + C(m/s)(automatic computer) T |
| Instrument Number | k:0.0500 c:0.0100 |
| Speed range | FM-100V10 (0.01-10.00 m/s) |
| Current measurement error | ≤1. 5% |
| LCD | LIQUID crystal display |
| Measurement method | pole positioning measurement. |
| Temperature range | -10 ° C-50° C |
| Power | 4 * 7 batteries |
| Backlight | LED backlight |
| External power supply | 5V |
| Host size | 75mm*135mm*25mm |
| formula | KN
V = ------- + C(m/s)(automatic computer) T |
| Instrument Number | k:0.0500 c:0.0100 |
| Speed range | FM-100V10 (0.01-10.00 m/s) |
| Current measurement error | ≤1. 5% |
| LCD | LIQUID crystal display |
| Measurement method | pole positioning measurement. |
| Temperature range | -10 ° C-50° C |
| Power | 4 * 7 batteries |
| Backlight | LED backlight |
| External power supply | 5V |
| Host size | 75mm*135mm*25mm |
