A Portable Pressure Steam Sterilizer, also known as an Autoclave (YX series), is a compact and mobile device designed for sterilizing equipment and materials using high-pressure steam. This sterilizer is commonly used in medical, laboratory, and industrial settings where portability and efficiency are crucial.
The YX series autoclave operates by generating steam under high pressure, which effectively kills bacteria, viruses, and other microorganisms. The process involves heating water to produce steam, which is then pressurized within the chamber to achieve the required temperature for sterilization. The device is equipped with controls to set and monitor the pressure, temperature, and duration of the sterilization cycle.
Key features of the Portable Pressure Steam Sterilizer include its ease of transport, user-friendly interface, and rapid sterilization cycles. It is designed to be durable and reliable, making it suitable for environments where space is limited and mobility is essential.
Features : AE-YX18HD
Features : AE-YX18LD
Features : AE-YX18LM

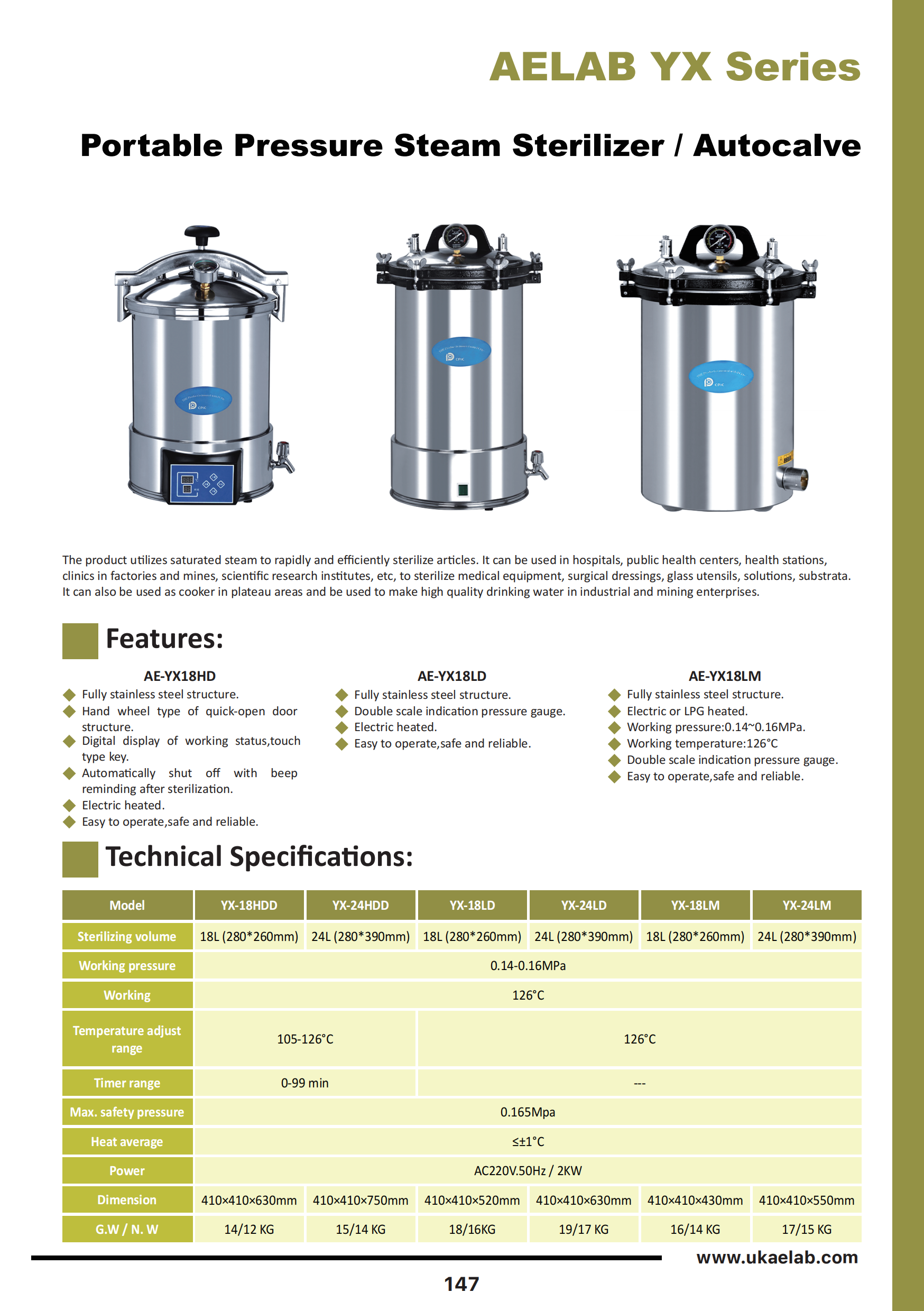

Specifications :
| Model | YX-18HDD | YX-24HDD | YX-18LD | YX-24LD | YX-18LM | YX-24LM |
| Sterilizing
volume |
18L
(280*260mm) |
24L
(280*390mm) |
18L
(280*260mm) |
24L
(280*390mm) |
18L
(280*260mm) |
24L
(280*390mm) |
| Working pressure | 0.14-0.16MPa | 0.14 -0.16 MPa | 0.14–0.16 Mpa | |||
| Working temperature | 126℃ | |||||
| Temperature adjust range | 105-126℃ | 126℃ | ||||
| Timer range | 0-99 min | --- | ||||
| Max. safety pressure | 0.165Mpa | |||||
| Heat average | ≤±1℃ | |||||
| Power | AC220V.50Hz / 2KW | |||||
| Dimension | 410×410×630mm | 410×410×750mm | 410×410×520mm | 410×410×630mm | 410×410×430mm | 410×410×550mm |
| G.W / N. W | 14/12 KG | 15/14 KG | 18/16KG | 19/17 KG | 16/14 KG | 17/15 KG |
| Model | YX-18HDD | YX-24HDD | YX-18LD | YX-24LD | YX-18LM | YX-24LM |
| Sterilizing
volume |
18L
(280*260mm) |
24L
(280*390mm) |
18L
(280*260mm) |
24L
(280*390mm) |
18L
(280*260mm) |
24L
(280*390mm) |
| Working pressure | 0.14-0.16MPa | 0.14 -0.16 MPa | 0.14–0.16 Mpa | |||
| Working temperature | 126℃ | |||||
| Temperature adjust range | 105-126℃ | 126℃ | ||||
| Timer range | 0-99 min | --- | ||||
| Max. safety pressure | 0.165Mpa | |||||
| Heat average | ≤±1℃ | |||||
| Power | AC220V.50Hz / 2KW | |||||
| Dimension | 410×410×630mm | 410×410×750mm | 410×410×520mm | 410×410×630mm | 410×410×430mm | 410×410×550mm |
| G.W / N. W | 14/12 KG | 15/14 KG | 18/16KG | 19/17 KG | 16/14 KG | 17/15 KG |
