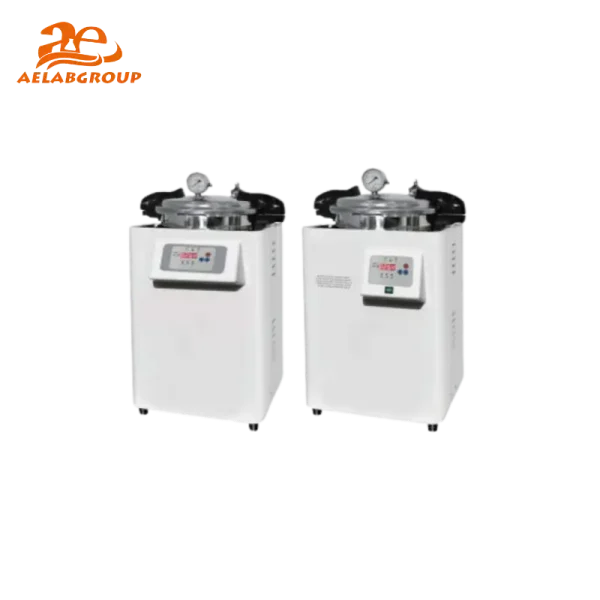

Portable Pressure Steam SterilizerAE-P18B series

The Portable Pressure Steam Sterilizer (AE-P series) is a compact, efficient device designed for on-the-go sterilization. Using high-pressure steam, it effectively eliminates pathogens from tools and equipment. Its user-friendly design and portability make it ideal for medical, dental, and laboratory use.
Modles : AE-P18B、AE-PB24、AE-PB30
whatsapp Whatsapp

The Portable Pressure Steam Sterilizer (AE-P series) is a compact and efficient device designed for on-the-go sterilization needs. It uses high-pressure steam to effectively eliminate bacteria, viruses, and other pathogens from a variety of tools and equipment. The device is engineered for convenience and reliability, making it ideal for medical, dental, and laboratory environments where quick and thorough sterilization is essential.

With its user-friendly interface, the AE-P series offers adjustable settings to accommodate different sterilization requirements. The device features a durable construction and advanced safety mechanisms to ensure safe operation. Its portability allows for easy transport and use in various settings, providing a versatile solution for maintaining hygiene standards wherever needed.



Features :

  • Intelligent microcomputer control system: Using LED digital control system; After sterilization finished, sterilizer will automatic alarm and shut down.
  • Interlock device: The control system can real time supervision the sterilizer chamber’s temperature and pressure. Only under the safety temperature and pressure can open the sterilizer’s cover. Make sure the operator’s safety.
  • The structure of cover’s opening: Using shift place type of quick-open cover to improve sealing and safety performance.
  • Preset program: Can preset fixed program that sterilize the liquid and solid body.
  • Memory storage system: Store the last operation program so convenient next operation.
  • Digital display screen: Digital display screen and working indicator light display running state.



Specifications :

Parameter/Model AE-P18B AE-PB24 AE-PB30
Configuration Semi-automatic Control
Material/Pot Wall Thickness(mm) Shell: Temperature resistant high quality enginering plastics,

Pan: High quality stainless steel 304 material/ 2mm

Volume/GW 18L/16kg 24L/24Kg 30L/32Kg
Voltage/Power 220V/2Kw 220V/2Kw 220V/2Kw
Packing size(L x W x H mm) 500 x 500 x 700 500 x 500 x 800 500 x 500 x 900
Gross Weight ( KG ) 14 29 32
Product size(L x W x H mm) 400 x 380 x 620 370 x 430 x 730 370 x 430 x 820
Sterilization chamber volume (D x H mm) 280x395 280x495 280 x 585
Use volume (D x H mm) 269x260 269x330 269x420
Time setting range 0-999min 0-999 min 0-999 min
Rated working pressure 0.142MPa 0.142MPa 0.142MPa
Sterilization temperature setting range 50~126℃ 50~126℃ 50~126℃
Parameter/Model AE-P18B AE-PB24 AE-PB30
Configuration Semi-automatic Control
Material/Pot Wall Thickness(mm) Shell: Temperature resistant high quality enginering plastics,

Pan: High quality stainless steel 304 material/ 2mm

Volume/GW 18L/16kg 24L/24Kg 30L/32Kg
Voltage/Power 220V/2Kw 220V/2Kw 220V/2Kw
Packing size(L x W x H mm) 500 x 500 x 700 500 x 500 x 800 500 x 500 x 900
Gross Weight ( KG ) 14 29 32
Product size(L x W x H mm) 400 x 380 x 620 370 x 430 x 730 370 x 430 x 820
Sterilization chamber volume (D x H mm) 280x395 280x495 280 x 585
Use volume (D x H mm) 269x260 269x330 269x420
Time setting range 0-999min 0-999 min 0-999 min
Rated working pressure 0.142MPa 0.142MPa 0.142MPa
Sterilization temperature setting range 50~126℃ 50~126℃ 50~126℃
